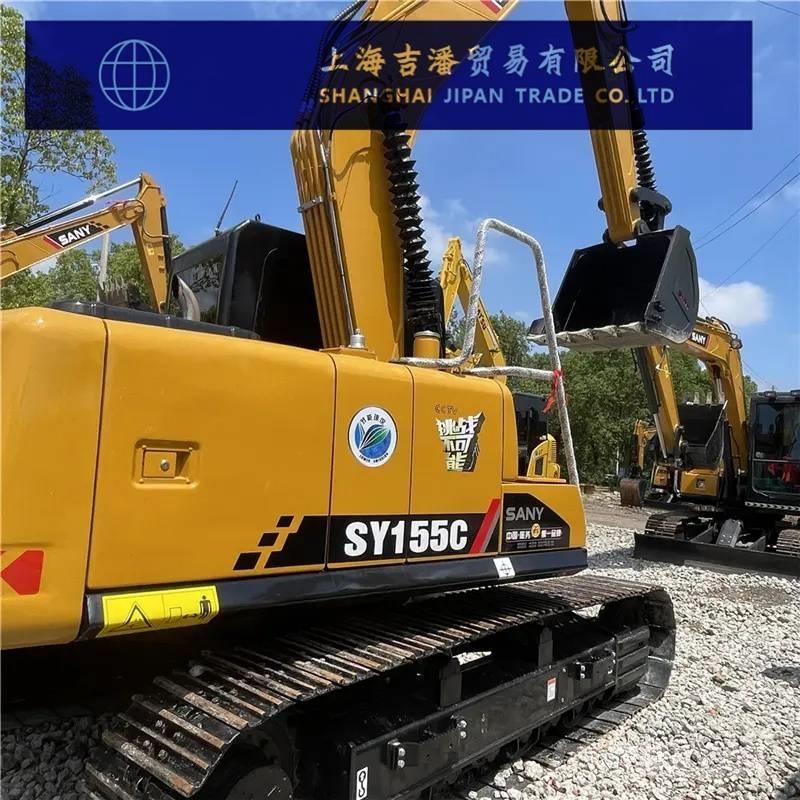

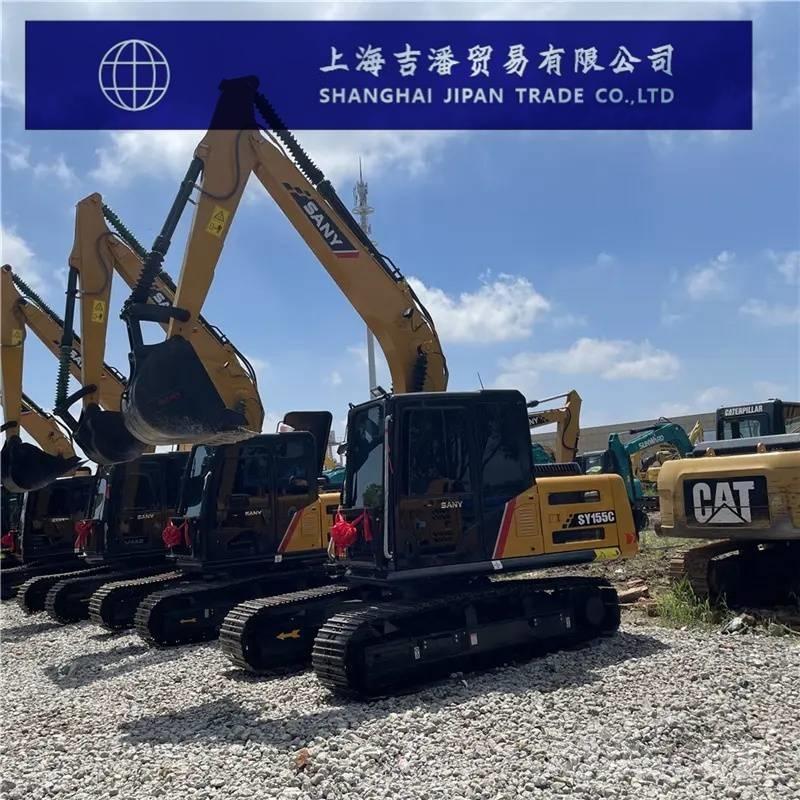

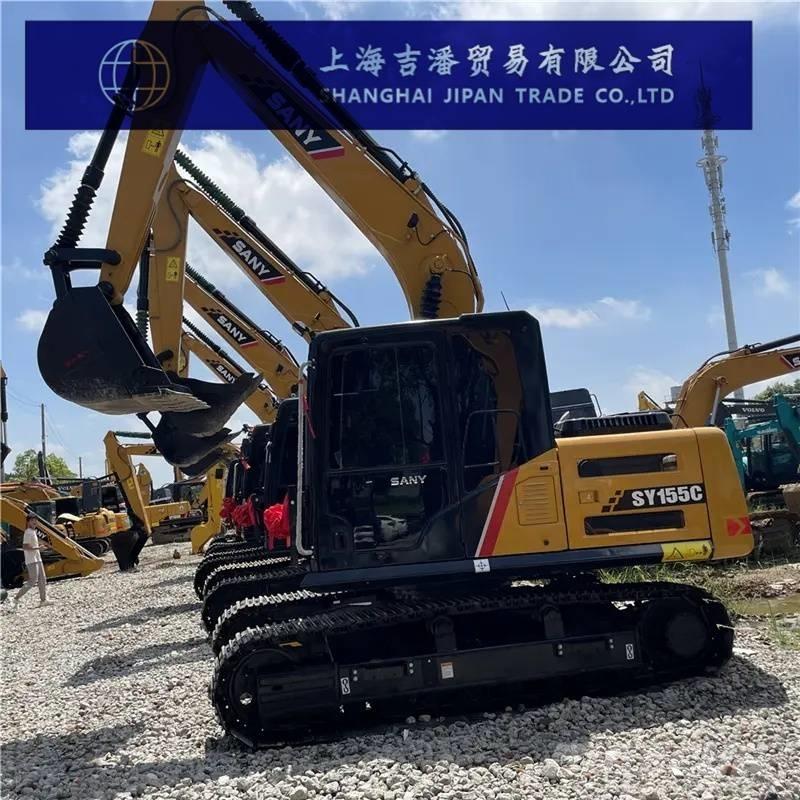

三一重工 SY 155
不含税价格
打印
信息
类别
中型挖掘机
品牌/型号
三一重工 SY 155
生产年份
2023
使用小时
821 小时
国家
中国
一般等级
1
2
3
4
5
马斯客 ID
9C79F7B2
定价
选择币种
详细信息
电源类型
柴油机
先前车主有几个
1
底盘状态
98%
最新检验记录
2025-08-25
毛重
14100 公斤
发动机
original
排放标准
第V阶段
发动机输出功率
86 kW (117 马力)
发动机制造商
original
料斗容积
0.65 m3
履带宽度
600 mm
运输尺寸(长x宽x高)
7890 x 2490 x 2890 mm
原色
original
状态/质保
1 year
成交条件
FCA, FOB, CIF, EXW
证书
EPA环境保护署, CE认证
附属装置
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Nina
Whatsapp: +86 18055199047
Mobile:+86 18055199047
Wechat:18055199047
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs
配件
空调
铲斗
操纵杆
标准挖土铲斗
其他信息
Basic Parameters: Total machine weight 14,100 kg, standard bucket capacity 0.65 m³, rated power 86 kW/2200 rpm, engine model Isuzu 4JJ1, displacement 2.999 L, track shoe width 500 mm, track gauge 1990 mm.
Overall Dimensions: Total length (during transportation) 7890 mm, total width (transportation/operation) 2490 mm, total height (during transportation) 2890 mm, upper structure width 2490 mm, total height to cab top 2900 mm, minimum ground clearance 450 mm, tail swing radius 2210 mm, track ground contact length 3010 mm, track length 3730 mm.
Performance Parameters: Travel speed (high/low) 5.5/3.5 km/h, swing speed 12 rpm, climbing ability 70% (35°), ground pressure 43 kPa, bucket digging force 103 kN, arm digging force 67 kN.
Working Range: Maximum digging height 8800 mm, maximum dumping height 6600 mm, maximum digging depth 5500 mm, maximum vertical arm digging depth 5085 mm, maximum digging radius 8350 mm, minimum swing radius 2500 mm, maximum height at minimum swing radius 6495 mm.
Oil and Antifreeze Capacities: Fuel tank 280 L, hydraulic oil tank 200 L, engine oil 15 L, antifreeze 30 L, travel reducer gear oil 2×2.6 L.
