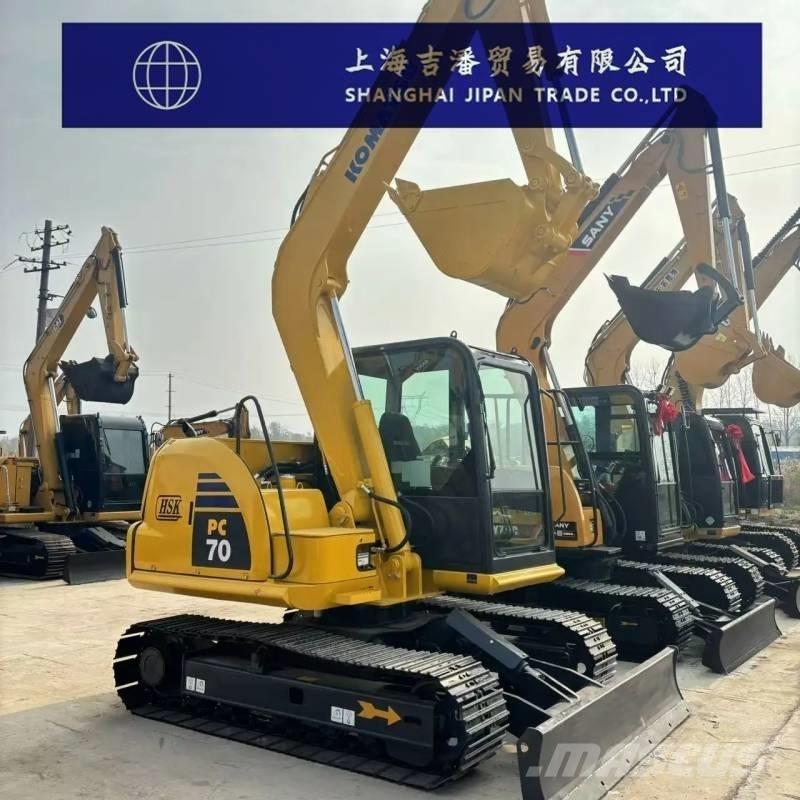

小松 PC 70

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Specification Tonnage (tons)7 The overall working weight of the machine (kg) is 6500 Bucket capacity (m³):0.32-0.39 Boom length (mm):3710 The length of the bucket pole (mm) is 1650 Performance Rotational speed (rpm)11 Walking speed (km/h):4.5/2.8 Grounding specific pressure (Kpa)30.2 The bucket digging force (kN) is 54.8 The digging force of the boom (kN) is 38.2 Maximum traction force (kN)56.4 Power system Engine model: Komatsu SAA4D95LE-5 Rated power (kw/rpm)48.5/1950 Displacement (L):3.26 Number of cylinders:4 Bore × stroke (mm)95*115 The cooling method is water cooling The working mode is turbocharged and post-cooled Hydraulic system The main pump type is a variable piston pump The maximum flow rate of the main pump (l/min) is 172 Pilot oil circuit (MPa)2.9 Working hydraulic oil circuit (Mpa)24.5 Walking hydraulic circuit (Mpa)24.5 Rotary hydraulic circuit (Mpa)21.1 Boom cylinder - Number × cylinder bore × stroke (mm)1-115*840 Bucket rod cylinder - Number × cylinder bore × stroke (mm)1-100*865 Bucket cylinder - Number × cylinder diameter × stroke (mm)1-90*710 Oil capacity Fuel tank (L)130 Hydraulic oil tank (L)95 Engine oil change rate (L)12.5 Main body size Total transportation length (mm):6080 Total transportation width (mm)2225 Total transportation height (mm):2620 Track grounding length (mm)2130 The total length of the track (mm) is 2765 Track plate width (mm)450 The total width of the track (mm) is 2150 Track gauge (mm)1700 Minimum ground clearance (mm)350 Counterweight ground clearance (mm)750 The rear end rotation radius (mm) is 1750 Number of sprocket rollers (single side) (pieces)1 Number of track plates (single side) (pieces)38 Number of supporting wheels (single side) (pieces)5 Scope of work Maximum excavation radius (mm):6360 The maximum excavation radius (mm) of the shutdown surface is 6220 Maximum excavation depth (mm):4100 Maximum excavation height (mm):7150 Maximum unloading height (mm):5015 Maximum vertical excavation depth (mm):3505
