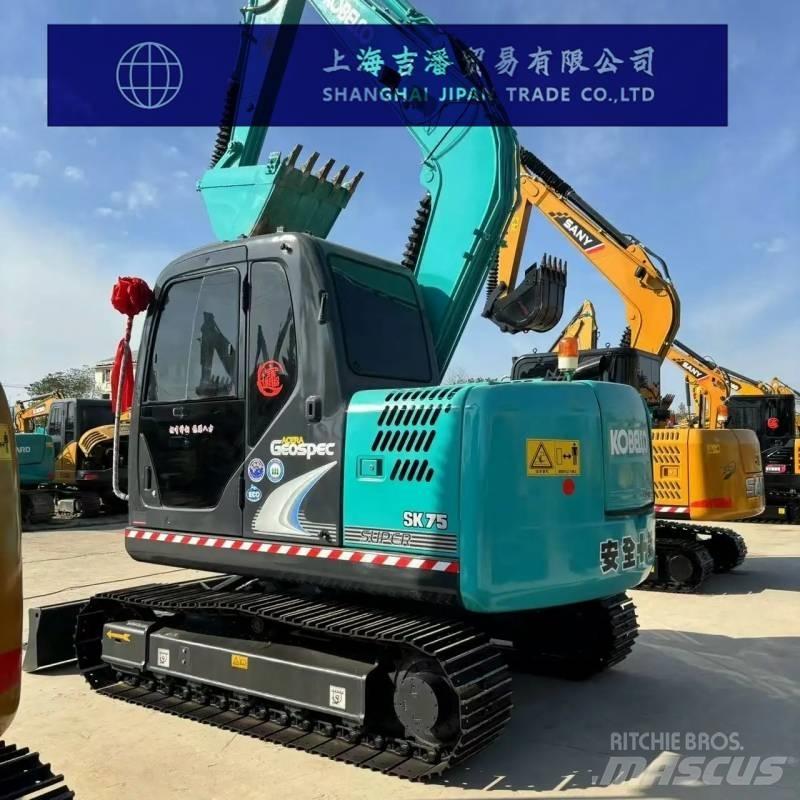

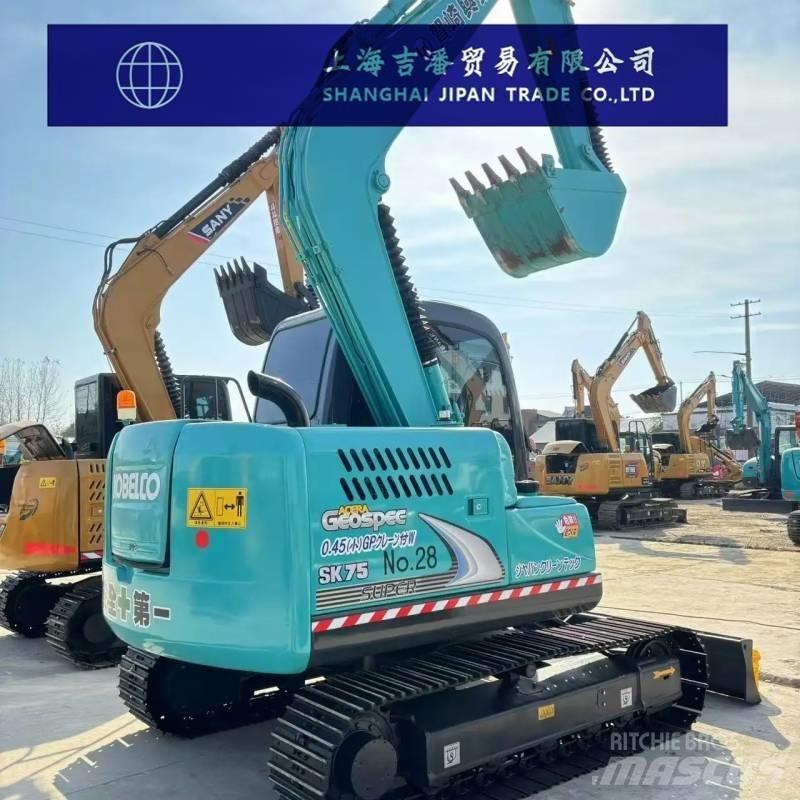

神钢建机 SK 75

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Power, traditional power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)7 The overall working weight of the machine (kg) is 6850 Bucket capacity (m³)0.4 The length of the bucket pole (mm) is 1710 Origin: Chengdu Performance Rotational speed (rpm) : 11.5 Walking speed (km/h)5.3/2.8 Climbing ability (%)70 Grounding specific pressure (Kpa) : 30.8 Bucket digging force (kN)52.7 The digging force of the boom (kN) is 39.4 Maximum traction force (kN)72.2 Power system The engine model is ISUZU 4LE2XCUA Rated power (kw/rpm)42/2200 Maximum torque (N.m)211/1600 Displacement (L) : 2.179 Number of cylinders (4) Bore × stroke (mm) : 85*96 The cooling method is water cooling The working mode is direct injection, turbocharging and built-in intercooling Hydraulic system The main pump type is a variable displacement axial piston pump Maximum flow rate of the main pump (l/min)1*132 Pilot pump flow rate (L/min)1*18 Walking hydraulic circuit (Mpa)29.4 Rotary hydraulic circuit (Mpa)24.5 Boom cylinder - Number × cylinder bore × stroke (mm)1*110*916 Bucket rod cylinder - Number × cylinder bore × stroke (mm)1*95*833 Bucket cylinder - Number × cylinder diameter × stroke (mm)1*80*735 Oil capacity Fuel tank (L)140 Hydraulic oil tank (L)67 Hydraulic System (L)107 Engine oil change volume (L)11 Coolant (L)8.5 Main body size Total transportation length (mm) : 6200 Total transportation width (mm) : 2320 Total transportation height (mm) : 2650 Total track length (mm)2830 Track plate width (mm)450 Track gauge (mm) : 1870 Minimum ground clearance (mm)375 The minimum turning radius (mm) of the front-end working device is 1760 The rear end rotation radius (mm) is 1750 Number of track plates (single side) (pieces)39 Scope of work Maximum excavation radius (mm) : 6460 The maximum excavation radius (mm) of the shutdown surface is 6310 Maximum excavation depth (mm) : 4170 Maximum excavation height (mm) : 7400 Maximum unloading height (mm) : 5330 Maximum vertical excavation depth (mm) : 3480 The maximum effective excavation depth (mm) is 3810 The width × height (mm) of the push board is 2320*460 Bulldozer lift or push depth (mm)475/305
