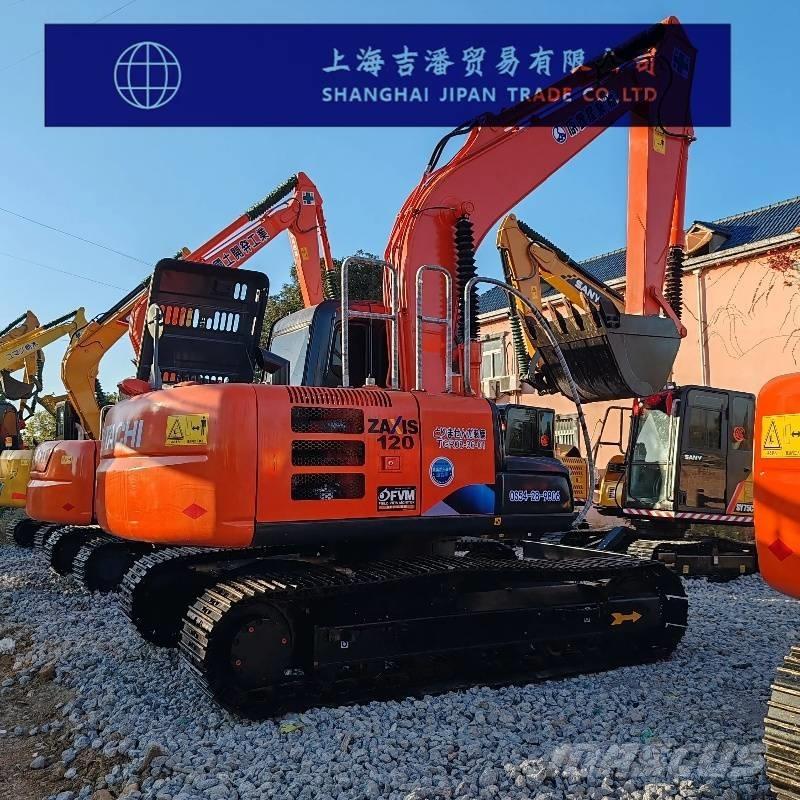

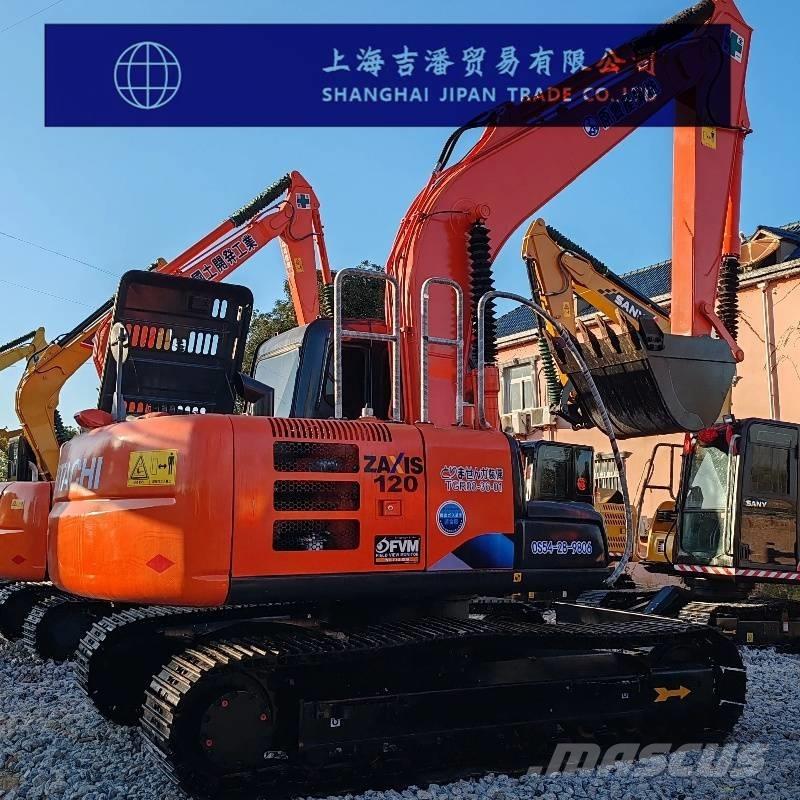

日立建机 ZX 120

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Information: Operating weight 12,200 kg, bucket capacity 0.52 m³, boom length 4,600 mm, arm length 2,520 mm, track shoe width 500 mm, track gauge 1,990 mm. Performance Parameters: Ground pressure 37 kPa, swing speed 13.7 r/min, travel speed (high/low) 5.5/3.4 km/h, bucket digging force 99 kN, arm digging force 65 kN. Engine Parameters: Engine model Isuzu ISUZU CC-4BG1TC, type turbocharged (with intercooler) direct injection, rated power 63 kW (85 PS) at 1,950 rpm (standard mode), 66 kW (90 PS) at 2,150 rpm (H/P mode), total displacement 4.329 L. Hydraulic System Parameters: Main relief valve setting pressure 34.3 MPa, hydraulic pump type variable displacement piston pump × 2 + gear pump × 1, swing hydraulic motor fixed displacement piston pump × 1, parking brake type (swing and travel) mechanical. Fluid Capacity Parameters: Fuel tank capacity 250 L, hydraulic oil tank capacity 69 L, engine oil change capacity 15.8 L. Dimension Parameters: Overall transport length 7,610 mm, overall transport width 2,490 mm, overall transport height 2,740 mm, counterweight ground clearance 890 mm, minimum ground clearance 440 mm, rear swing radius 2,130 mm.
