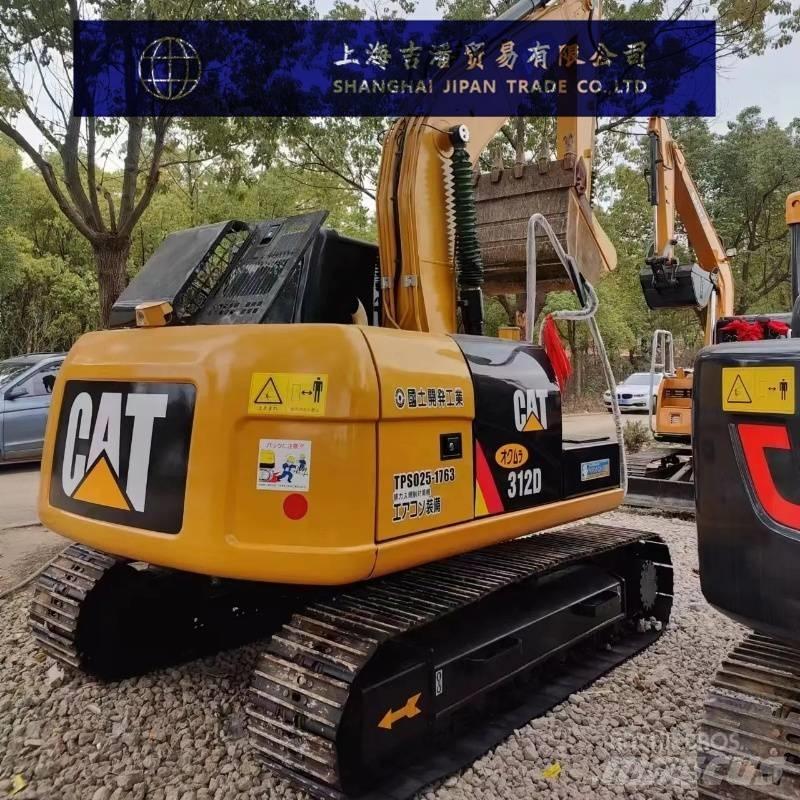

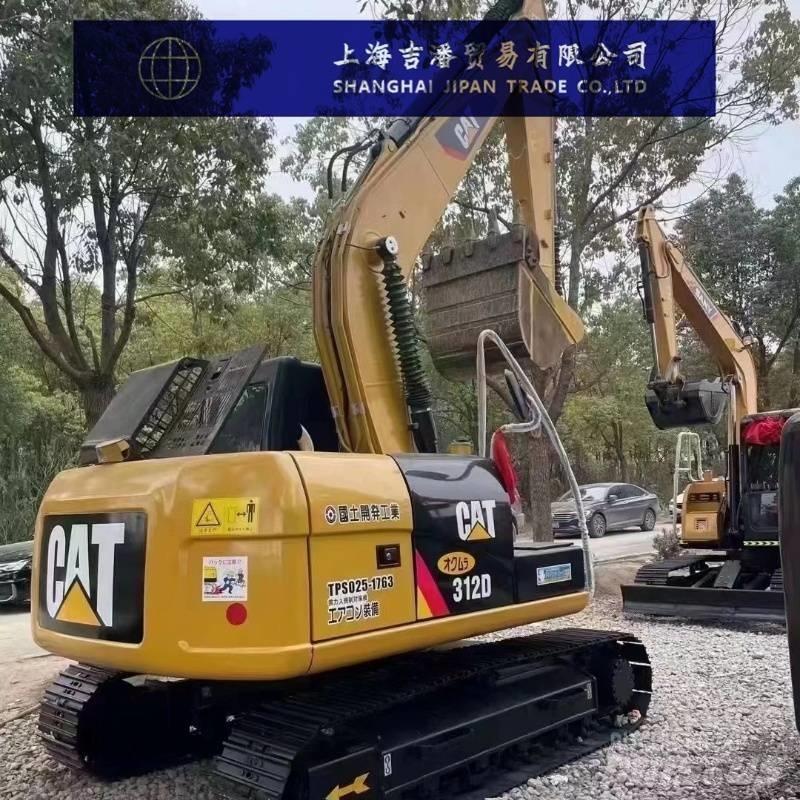

卡特 312 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

动力传统动力 厂商合资/进口 铲斗反铲 吨位(吨)12 整机工作重量(kg)11600 铲斗容量(m³)UD 0.53 动臂长度(mm)4300 斗杆长度(mm)2250 性能 回转速度(rpm)11.5 回转扭矩(Nm)43k 铲斗挖掘力(kN)85.9 斗杆挖掘力(kN)62.2 动力系统 发动机型号Cat® C3.6 额定功率(kw/rpm)74.4/2200 排量(L)3.6 缸径×行程(mm)98*120 排放标准国Ⅳ 液压系统 主泵最大流量(l/min)225 工作液压油路(Mpa)35 行走液压回路(Mpa)35 回转液压回路(Mpa )25.9 动臂油缸-个数×缸径×行程(mm)2*95*1002 斗杆油缸-个数×缸径×行程(mm)1*105*1194 铲斗油缸-个数×缸径×行程(mm)1*90*939 油类容量 燃油箱(L)237 液压油箱(L)77 液压系统(L)145 发动机油更换量(L)11 冷却液(L )11 主体尺寸 运输总长度(mm)7280 运输总宽度(mm)2490 运输总高度(mm)2780 履带总长度(mm)3320 履带板宽度(mm)500 履带轨距(mm)1990 最小离地间隙(mm )425 配重离地间隙(mm)890 后端回转半径(mm )2160 作业范围 最大挖掘半径(mm)7600 最大挖掘深度(mm)5080 最大挖掘高度(mm)7850 最大卸载高度(mm)5410 最大垂直挖掘深度(mm)4560
