卡特 308 E

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

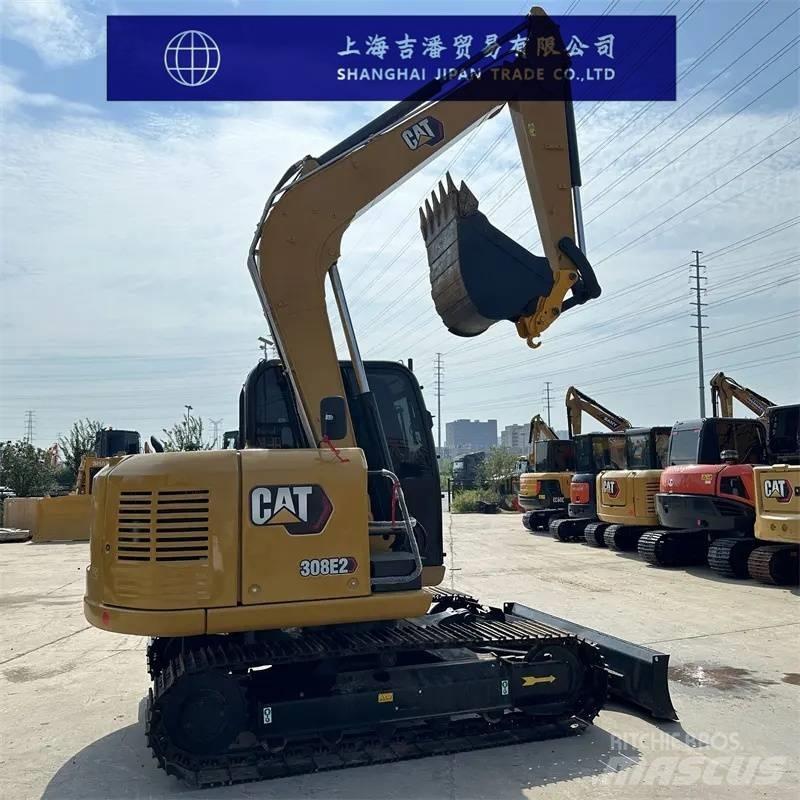

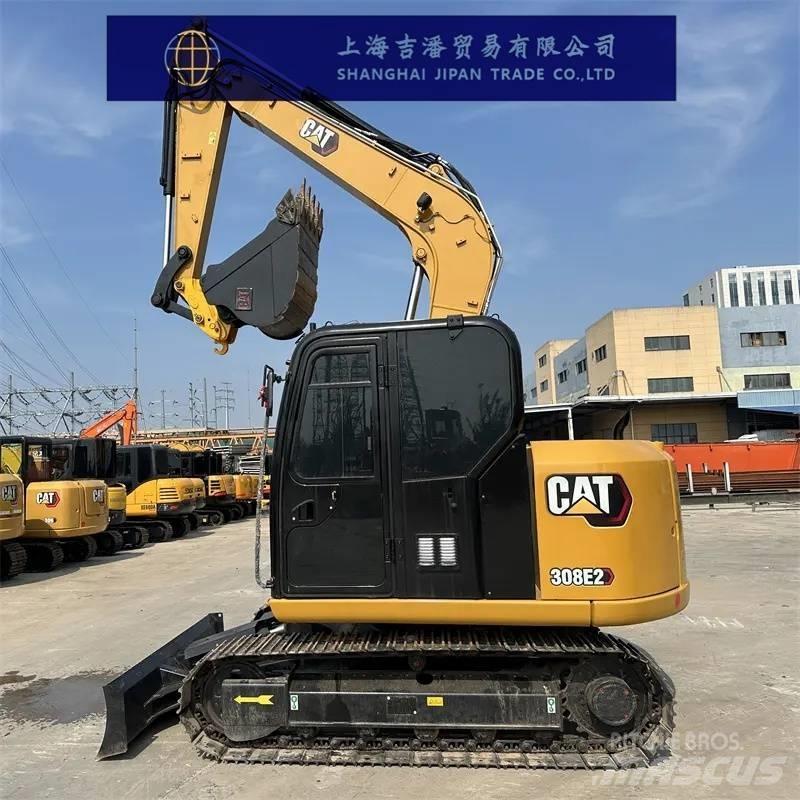

Parameter configuration of Cat 308E hydraulic excavator Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)8 The working weight of the entire machine (kg) is 7760 Bucket capacity (m³)0.31 Boom length (mm) : 1820 (Optional: 2210) Performance Walking speed (km/h)3.2/5.1 Climbing ability (%) : 30° Bucket digging force (kN) : 57.1 The digging force of the bucket arm (kN) is 38.9 Power system Engine model Cat C3.3DI Rated power (kw/rpm) : 49.7/2000 Hydraulic system The maximum flow rate of the main pump (l/min) is 147 Working hydraulic circuit (Mpa)28 Walking hydraulic circuit (Mpa)28 Rotary hydraulic circuit (Mpa)24 The main overflow set pressure (Mpa) is 28 Main body size Total transportation length (mm) : 6080 The total transportation width (mm) is 2320 The total transportation height (mm) is 2700 Scope of work Maximum excavation radius (mm) : 6420 Maximum excavation depth (mm) : 4210 Maximum excavation height (mm) : 7330 Maximum unloading height (mm) : 5300
