IHC Fundex FPP 20SNZ

不含税价格

向卖家询价

Compnay LOGO
Images4
IHC Fundex FPP 20SNZ 液压锤
IHC Fundex FPP 20SNZ 液压锤
IHC Fundex FPP 20SNZ 液压锤
Favorite收藏
share分享
Save search保存搜索
打印

信息

类别
液压锤
品牌/型号
IHC Fundex FPP 20SNZ
生产年份
2005
附加选项
翻新
设备所在位置
Etten Leur, Noord-Brabant
国家
荷兰
一般等级
1
2
3
4
5
马斯客 ID
9EAB5471

详细信息

内部库存编号
05.93.20SNZ
下列机器的装配过程
Fundex F12SE, Fundex F3500, Fundex F15, Hitachi KH 150/180/230/300 GLS and other pile driving or drilling rigs which need an extra hydraulic power pack
生产号/编号
05.93-20SNZ
排放标准
第II阶段
运输状态重量
8500 公斤
发动机制造商
DAF XF390
运输尺寸(长x宽x高)
4385 x 1600 x 2700 mm
制造国
荷兰
成交条件
FCA, EXW
附属装置
Lifting points Noise reduction material in doors Control box
文件
059420SN-part-2.pdf
其他信息

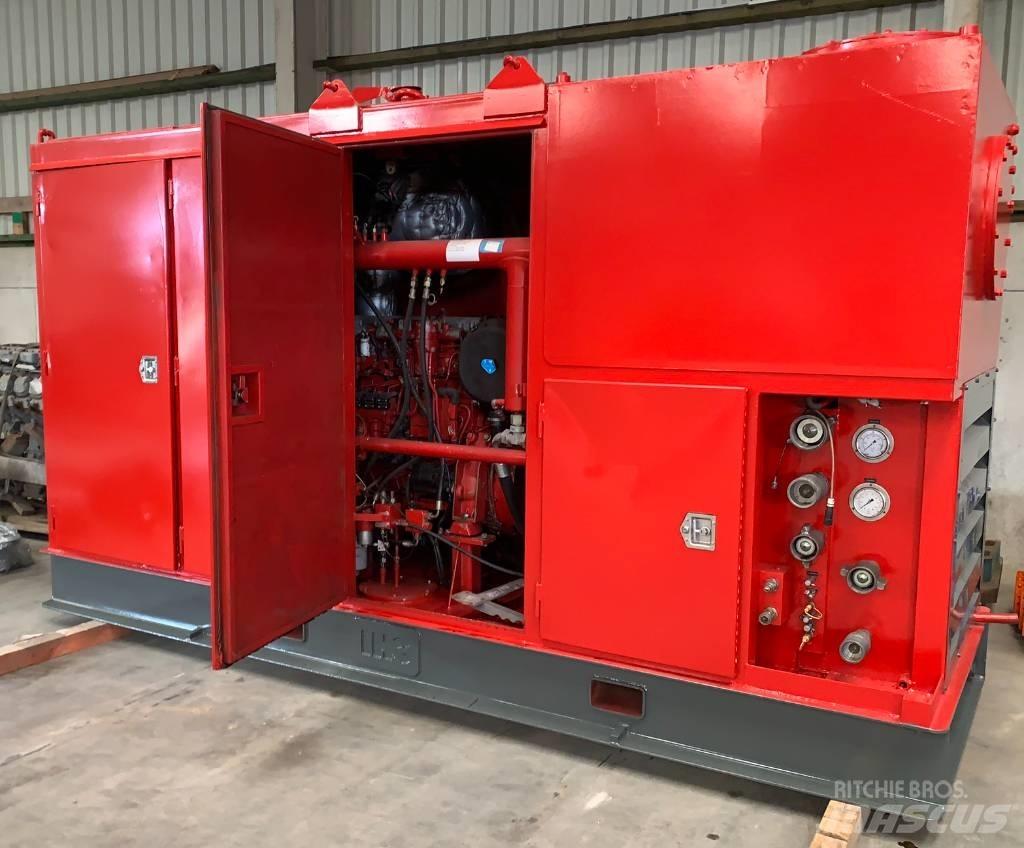

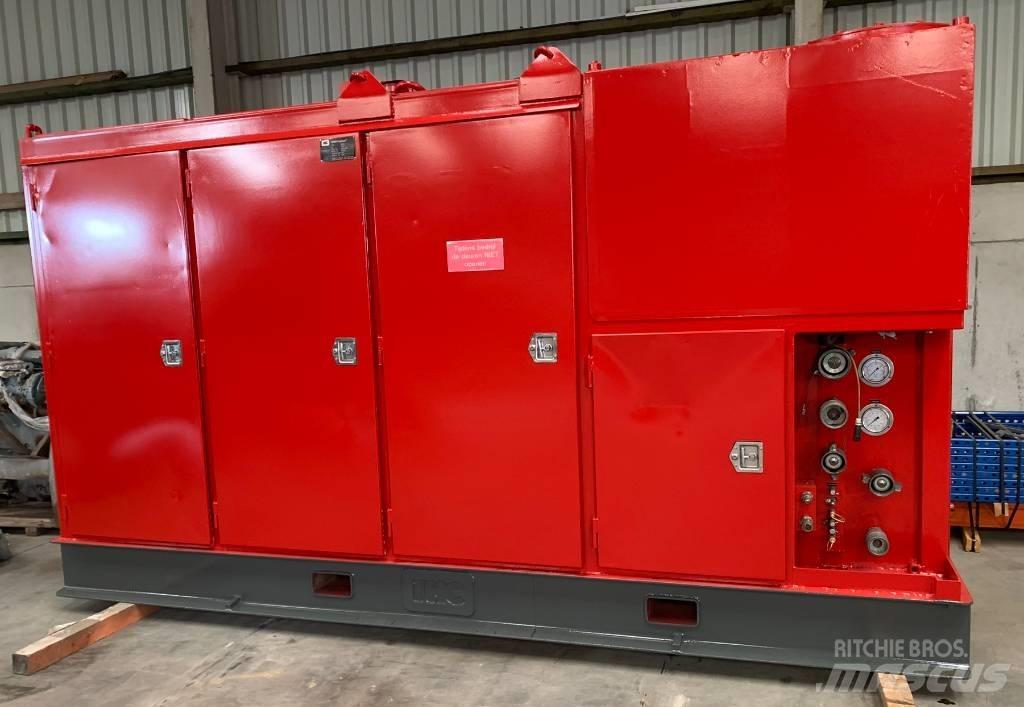

Directly available: IHC Fundex FPP 20SNZ multi purpose type, hydraulic power pack. This unit can be used to provide the necessary oil flow to power an IHC Hydrohammer, Junttan or PVE hydraulic impact hammer, rotary head or vibratory hammer. With some minor adjustments the power pack can also be used to power winches or dredging pumps. The power pack has an open loop hydraulic system and a very reliable Poclain hydraulic pump. The maximum flow at 320 bar is 520 ltr/min. The maximum oilflow at for example 225 bar is 700 ltr/min. The power pack has got lifting points and preparations to lift it easily with a forklift. The engine is from DAF. The DAF engines are also used in the DAF trucks so parts and service are widely available. This model is from the year 2005 and has 15.750 hours of which many are also stationairy because it was placed on the rear of a piling rig and it was not used for piling during the whole day. The power pack is serviced and tested and ready for immediate work.显示更多
