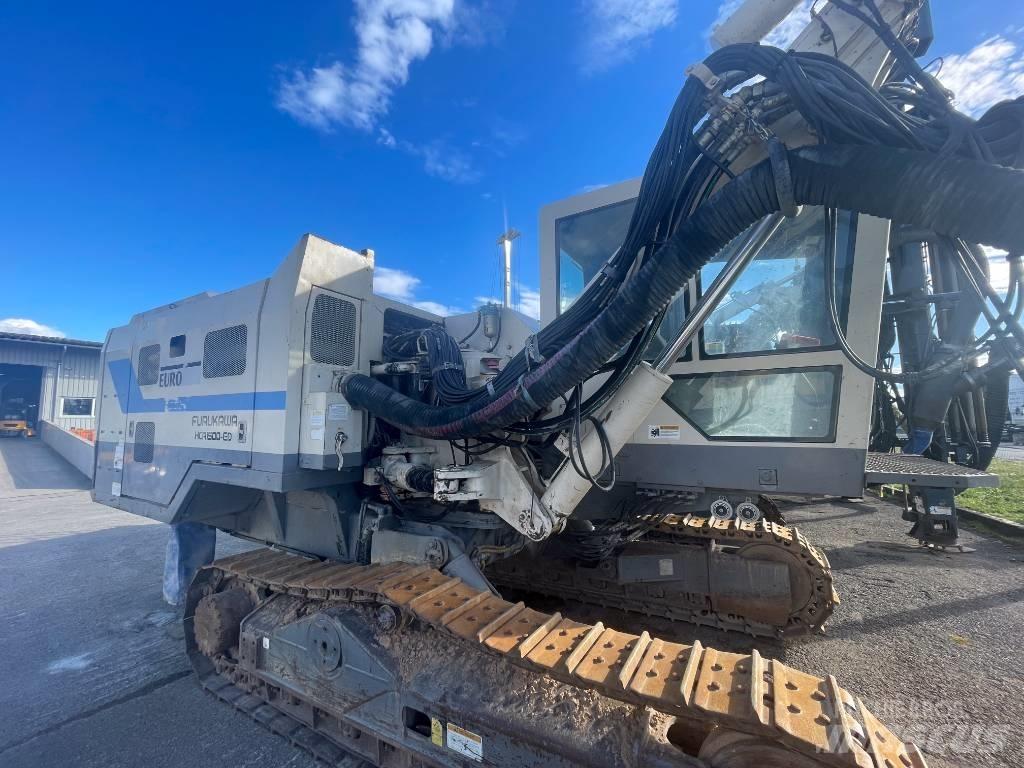

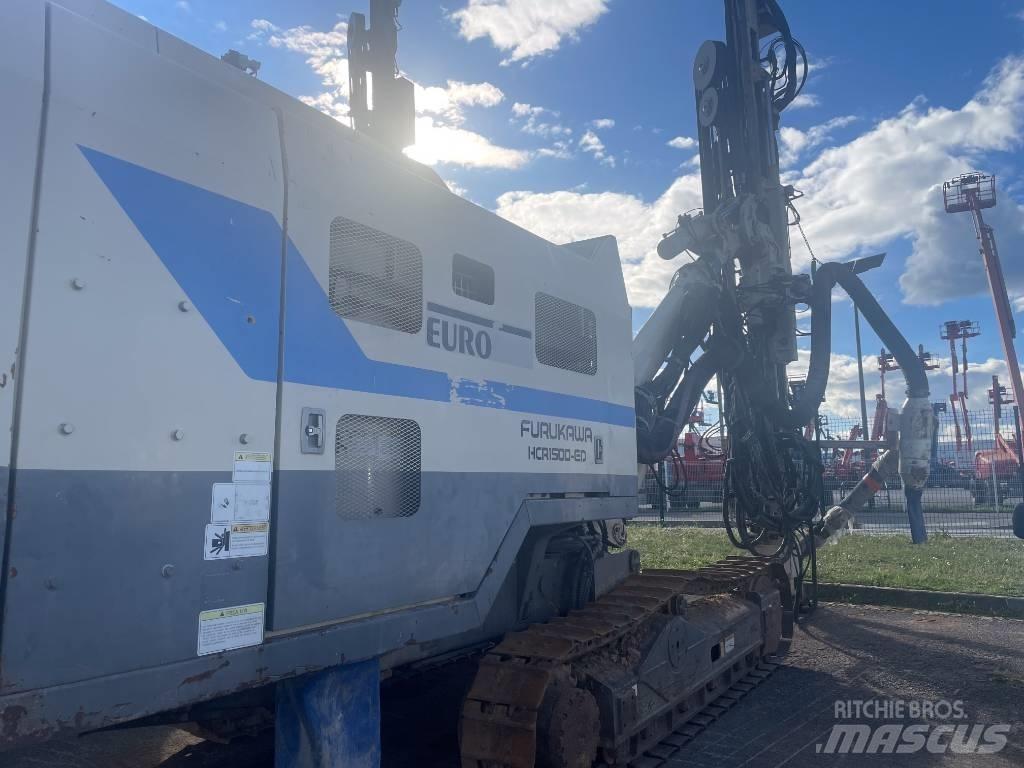

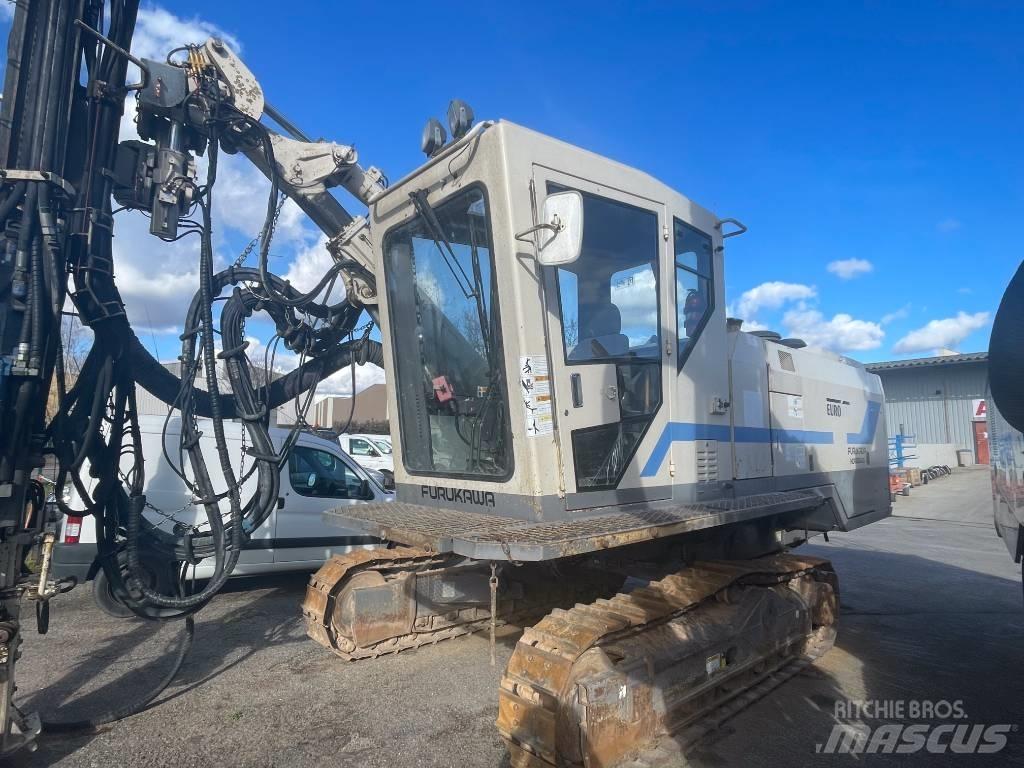

古河 HCR 1500 ED

Year 2006 - Work: 5 892 hours - Hammer: 2 445 hours (standard engine changed at 5 000 hours) 79 000 € HT EXW France (Chassieu) Sold as it is Overhaul quote on demand Weight and dimensions Weight: 15 500 kg Length: 10 050 mm Width: 3 725 mm Height: 3 185 mm Hammer HD715 Power: 21,5 kW Weight: 250 kg Striking frequency: 2 150 min-1 Rotation speed: 0 - 150 min-1 Engine Cummins QSC 8.3 Power and speed: 224 kW / 2200 tr/min Crawler Ground clearance: 565 mm Oscillation angle: ±10° Speed: 0 - 3,8 km/h Maximum gradient: 57,7% Compressor PDSF290S-14A Airflow: 12,3 m3/min Pressure: 1,03 MPa Boom Tilt angle high-low : 45-20° Tilt angle left-right : 35-7° Extension stroke : 900 mm Mast GH831-41 Length : 8 000 mm Feed length : 4 700 mm Course : 1 500 mm Pullback force : 35,1 kN Barrel T51 rods Barrel capacity: 6+1
