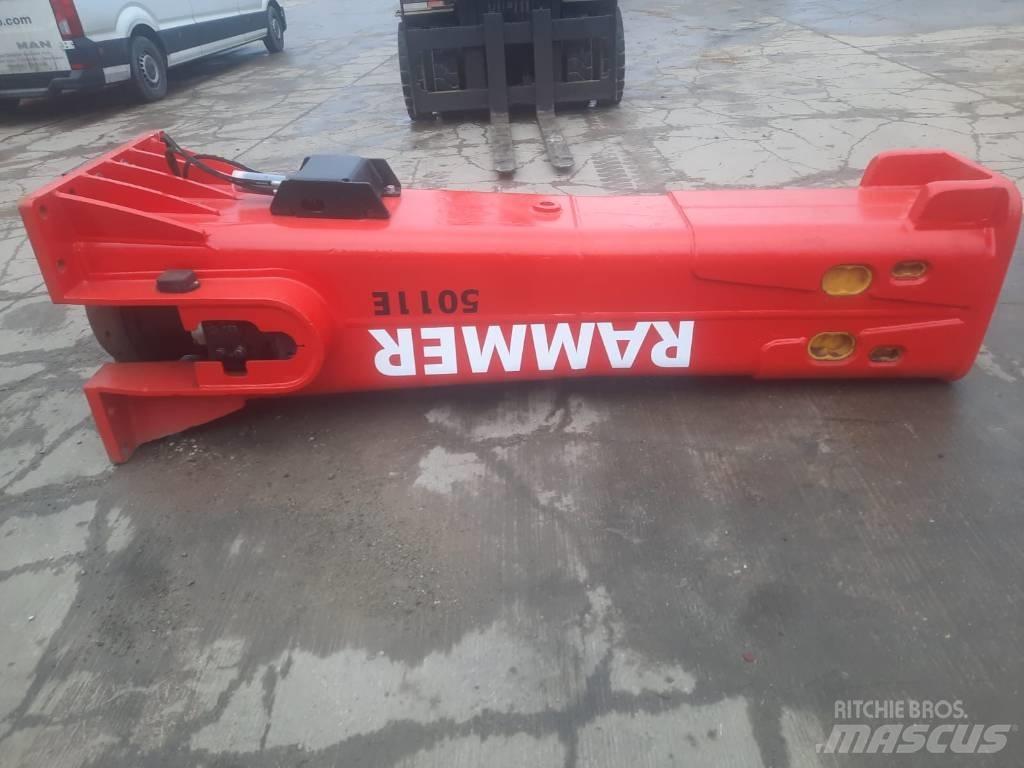

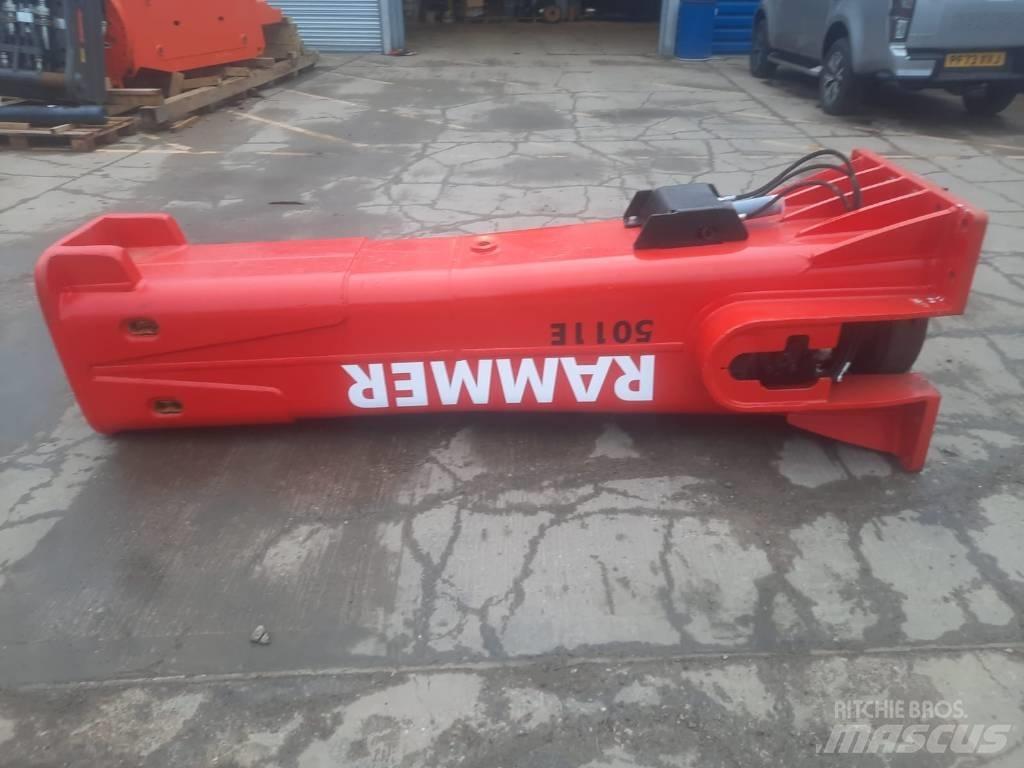

Fully refurbished and ready to work
Complete with Head Bracket and Hoses
SPECIFICATION
Minimum working weight, flange mounted *1 4750 kg 10470 lb
Weight 3900 kg 8600 lb
Working length 3329 mm 131.1 in
Impact rate, Long stroke 370 - 530 bpm
Impact rate, Short stroke 450 - 620 bpm
Operating pressure 160 - 170 bar 2320 - 2465 psi
Oil flow range 280 - 380 l/min 74.0 - 100.4 gal/min
Pressure relief setting *2 220 bar 3190 psi
Pressure relief max 230 bar 3335 psi
Back pressure max 10 bar 145 psi
Input power 108 kW 145 hp
Tool diameter 190 mm 7.48 in
Pressure line connection (IN) SAE 6000 psi 1 1/2"
Return line connection (OUT) SAE 6000 psi 1 1/2"
Pressure line size, min. inner diameter 32 mm 1.26 in
Return line size, min. inner diameter 32 mm 1.26 in
Grease connection BSPP-internal 3/8"
Air connection (A) BSPP-internal 3/8"
Optimum oil temperature 40 - 60 °C 104 - 140 °F
Allowed oil temperature range -20 - 80 °C -4 - 176 °F
Optimum oil viscosity at operating temperature 30 - 60 cSt
Allowed viscosity range 20 - 1000 cSt
Carrier weight, optimum 45 - 69 t 99200 - 152100 lb
Carrier weight, range *3 43 - 80 t 94800 - 176400 lb
Noise level, measured (2000/14/EC) 122 dB(A)
Noise level, guaranteed (2000/14/EC) 126 dB(A)显示更多
