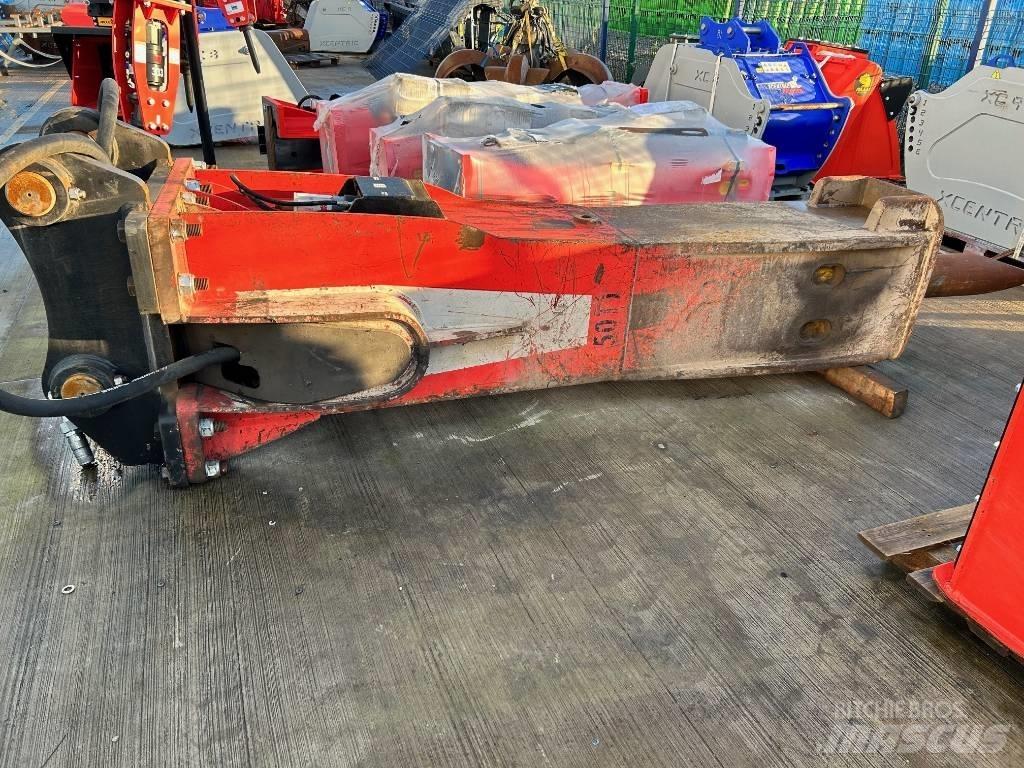

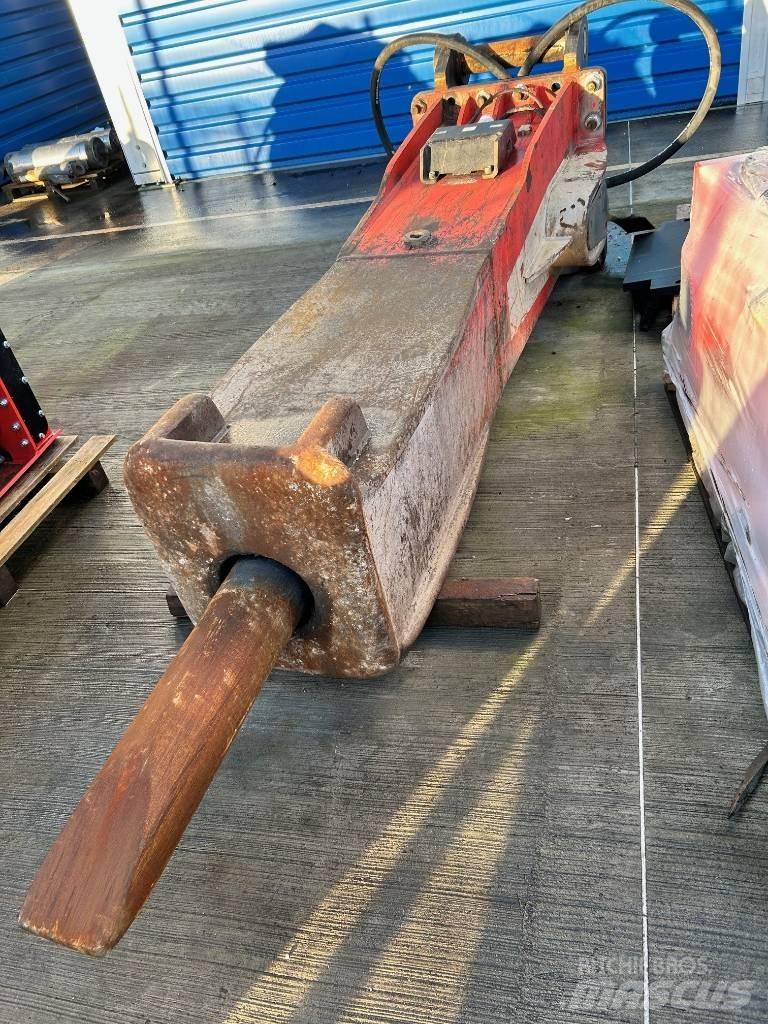

Rammer 5011 A 破碎锤
Rammer 5011 A 破碎锤
Favorite收藏
share分享
Save search保存搜索
打印

信息

类别
破碎锤
品牌/型号
锐猛 5011 A
生产年份
2017
附加选项
租赁,翻新
设备所在位置
Cheshire
国家
英国
一般等级
1
2
3
4
5
马斯客 ID
B62D76D8

详细信息

最新检验记录
2023-11-29
运输状态重量
3900 公斤
其他信息
Comes with Head Bracket and Hoses Recent Refurbishment SPECIFICATION Minimum working weight, flange mounted *1 4750 kg 10470 lb Weight 3900 kg 8600 lb Working length 3329 mm 131.1 in Impact rate, Long stroke 370 - 530 bpm Impact rate, Short stroke 450 - 620 bpm Operating pressure 160 - 170 bar 2320 - 2465 psi Oil flow range 280 - 380 l/min 74.0 - 100.4 gal/min Pressure relief setting *2 220 bar 3190 psi Pressure relief max 230 bar 3335 psi Back pressure max 10 bar 145 psi Input power 108 kW 145 hp Tool diameter 190 mm 7.48 in Pressure line connection (IN) SAE 6000 psi 1 1/2" Return line connection (OUT) SAE 6000 psi 1 1/2" Pressure line size, min. inner diameter 32 mm 1.26 in Return line size, min. inner diameter 32 mm 1.26 in Grease connection BSPP-internal 3/8" Air connection (A) BSPP-internal 3/8" Optimum oil temperature 40 - 60 °C 104 - 140 °F Allowed oil temperature range -20 - 80 °C -4 - 176 °F Optimum oil viscosity at operating temperature 30 - 60 cSt Allowed viscosity range 20 - 1000 cSt Carrier weight, optimum 45 - 69 t 99200 - 152100 lb Carrier weight, range *3 43 - 80 t 94800 - 176400 lb Noise level, measured (2000/14/EC) 122 dB(A) Noise level, guaranteed (2000/14/EC) 126 dB(A)显示更多
