三一重工 SY500 HRD

Fully equipped demolition excavator High reach boom Standard boom Boom and arm load holding valves with overload indicator Breaker & shear (pulverizer) line proportional via pedal incl. piping Middle arm via foot pedal Rotation line on joystic incl. piping Steel track 800 mm Hydraulically adjustable undercarriage 900 mm Tilting cab Cab safety grilles

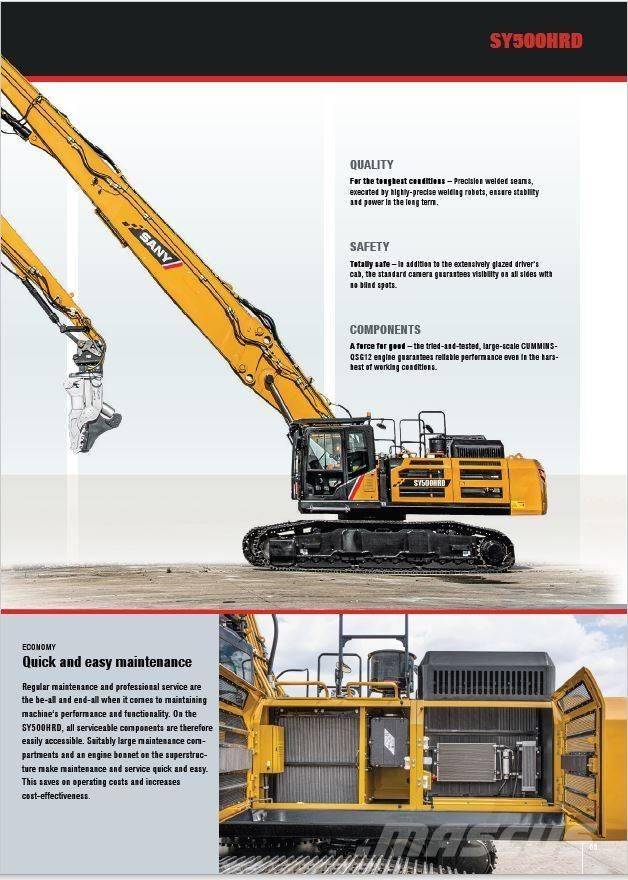

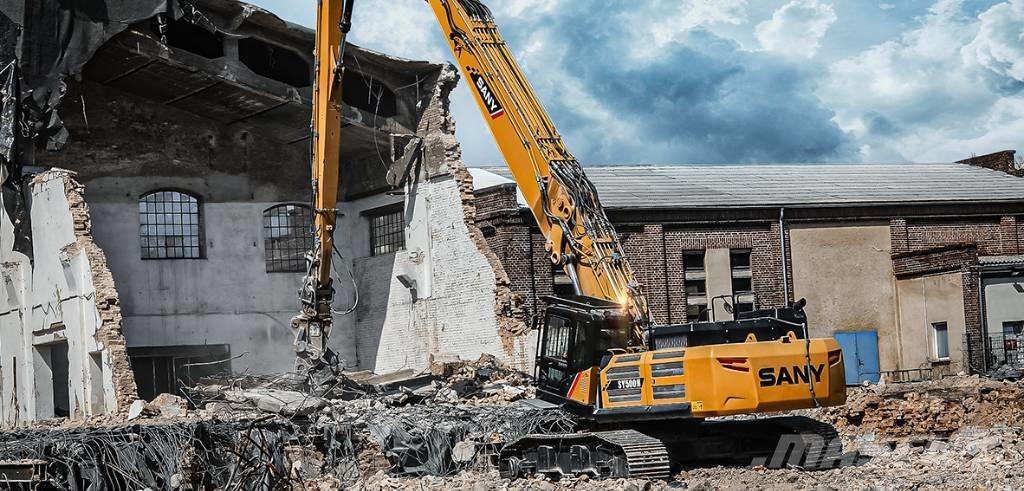

SANY SY500HRD impresses in every respect. Its high-quality, robust design and its powerful hydraulics make it the expert that you need when tackling demanding demolition work. It feels at home even under the toughest operating conditions, and demonstrates how important flexible work is for cost-effective operation. For the toughest conditions – precision welded seams, executed by highly-precise welding robots, ensure stability and power in the long term. Tall and stable – with its 28 m boom, the SY500HRD allows for precise demolition work, even on tall buildings and constructions. Improved stability, increased transferable force – the SY500HRD has a wide, hydraulically telescopic chassis with an extremely stable and robust frame. The large footprint that is achieved in this way provides the basis for the driver to work safely and precisely, even on uneven ground. This also gives the SY500HRD the best stability – meaning that the power is used in the best way possible. Perfect for providing maximum safety on the construction site thanks to the stability. A smart way to offer a lower track width for transport or for narrow areas. Work comfortably – using the tilting cab, the driver can always select the position with the best-possible view. Maximum productivity in a comfortable environment – particular attention was paid to the driver‘s cab on the SY500HRD. In the cab, safety and ergonomics are perfectly interconnected and therefore offer the driver the best conditions for relaxed and fatigue-free work. The focus here is on the comfortable, air-suspension driver‘s seat with high backrest that provides lumbar support and the easily accessible controls. The joystick control allows for precise work in any situation and the large, easy-to-read display shows all of the key parameters clearly at a glance. The powerful heating and the automatic air-conditioning system guarantee the ideal climate. The cab, which can be tilted at an angle of up to 30°, also conveniently providesthe driver with an optimum view of the relevant work area. Totally safe – in addition to the extensively glazed driver‘s cab, the standard camera guarantees visibility on all sides with no blind spots. Safety without compromises – even on demolition sites, safety is the highest priority. The demolition cab on the SY500HRD is therefore extremely robust in accordance with the EU directive. The roof panel and windscreen, which are made from safety glass, are located behind protective grilles, which are part of the standard equipment. Numerous active and passive safety components, such as the automatic range limitation, ensure that both people and the machine are protected as much as possible. A force for good – the tried-and-tested, large-scale CUMMINSQSG12 engine guarantees reliable performance even in the harshest of working conditions. Efficiency meets power – the intelligent control system automatically adapts the pump power to the available engine power. Sets new standards for productivity – huge performance but with operating costs that are as low as possible. The SY500HRD knows how cost-efficiency works today. Its auto-idle function and the electronic fuel injection adjust the engine speed to the power required. This reduces the fuel consumption, engine wear and exhaust emissions. The long intervals for maintenance and service have a positive effect on the operating costs.
