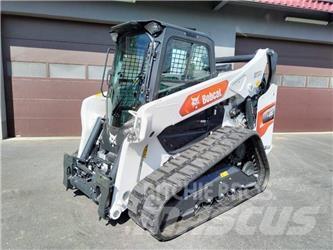

山猫 T86

Make / Model D34 BSH SV, 97/68 EC Stage V Fuel Diesel Cooling Liquid Power at 2600 RPM (ISO 14396 Gross): 78.3 kW Torque at 1800 RPM (SAE J1995 Gross) 409.0 Nm Number of cylinders 4 Displacement 3409 cm3 Fuel tank 120.00 L Diesel Exhaust Fluid 20.40 L Vehicle steering Direction and speed controlled by Selectable Joystick Controls (SJC) Loader hydraulics tilt and lift Selectable Joystick Controls (SJC) Front auxiliary (standard) Electrical switch on right-hand steering leve Tipping load (ISO 14397-1) 5087 kg Rated operating capacity (ISO 14397–1) 1780 kg Pump capacity 87.10 L/min Pump capacity (with high flow option) 138.50 L/ min Pump capacity (with super flow option) 159.00 L/ min System relief at quick couplers 23.8-24.5 MPa Max. travel speed 8.7 km/h Max. travel speed (high range – optional) 16.7 km/h Standard Features 450mm Wide Rubber Tracks 3 Point Seat belt 5” Deluxe Instrumentation (Radio Ready) High-back cushion suspension seat Selectable Joystick Controls (SJC) Deluxe pressurized cab with HVAC Two Speed Travel Auxiliary hydraulics: variable flow/maximum flow Dual Direction Bucket Positioning (including ON/ OFF switch) Key start Backup Alarm LED Working Lights front and rear Parking brake Bob-Tach™ Attachment System Bobcat Interlock Control System (BICS) Engine/hydraulics system shutdown EDC Pump with Standard Flow, High Flow and Super Flow modes. Manual Lift arm support Spark arrestor muffler Seat belt Reversing Camera Power Bob-Tach™ Machine IQ (telematic) Warranty: 24 months or 2000 hours, whichever occurs first Other options that machine have: Heated Cloth Air ride seat with 3 point seat belt Reversable Fan Auto Ride Control Radio
