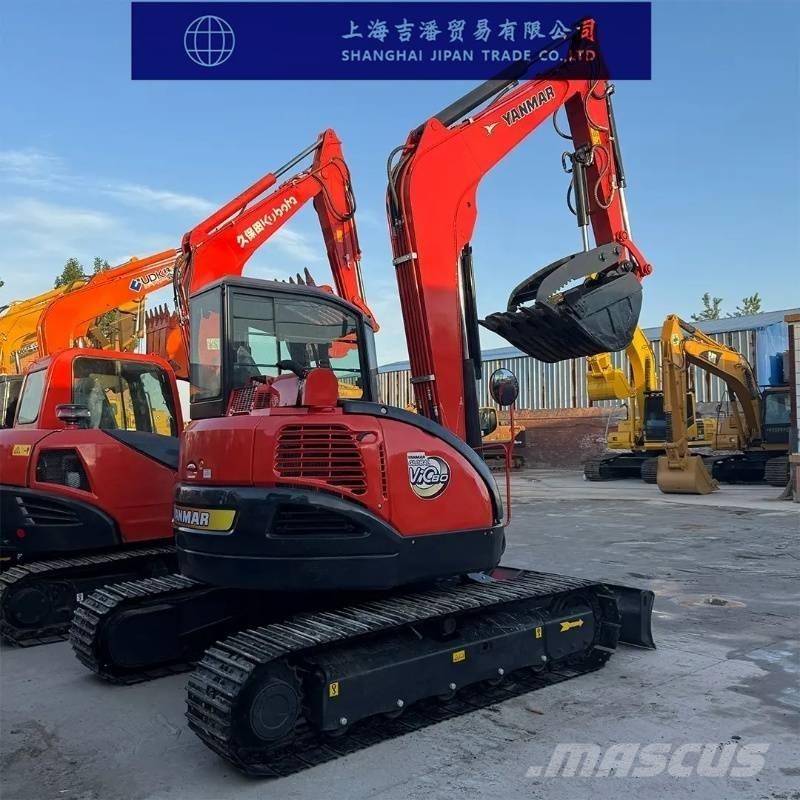

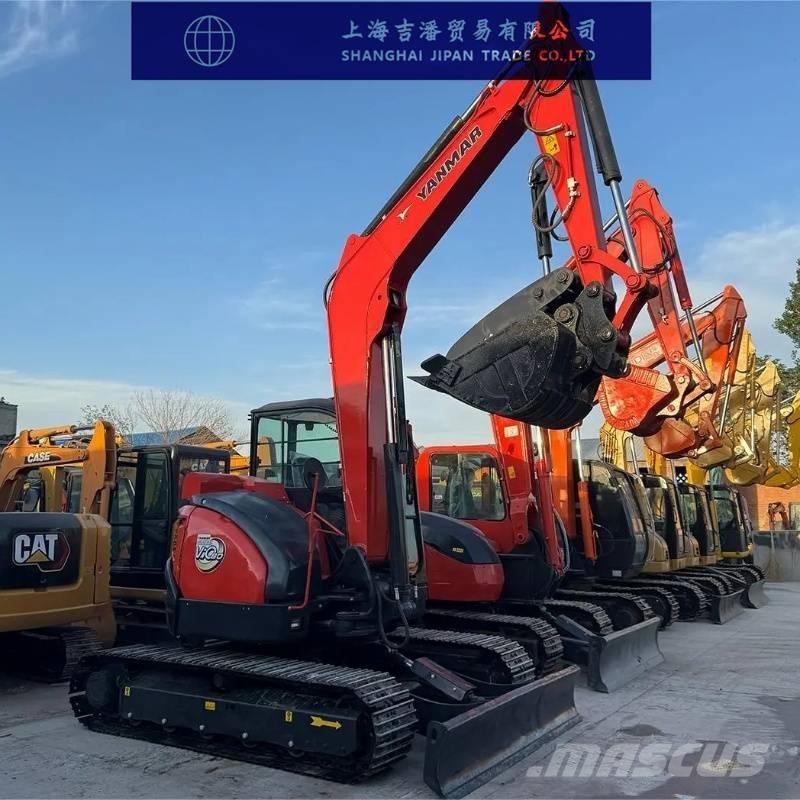

洋马 Vio 80

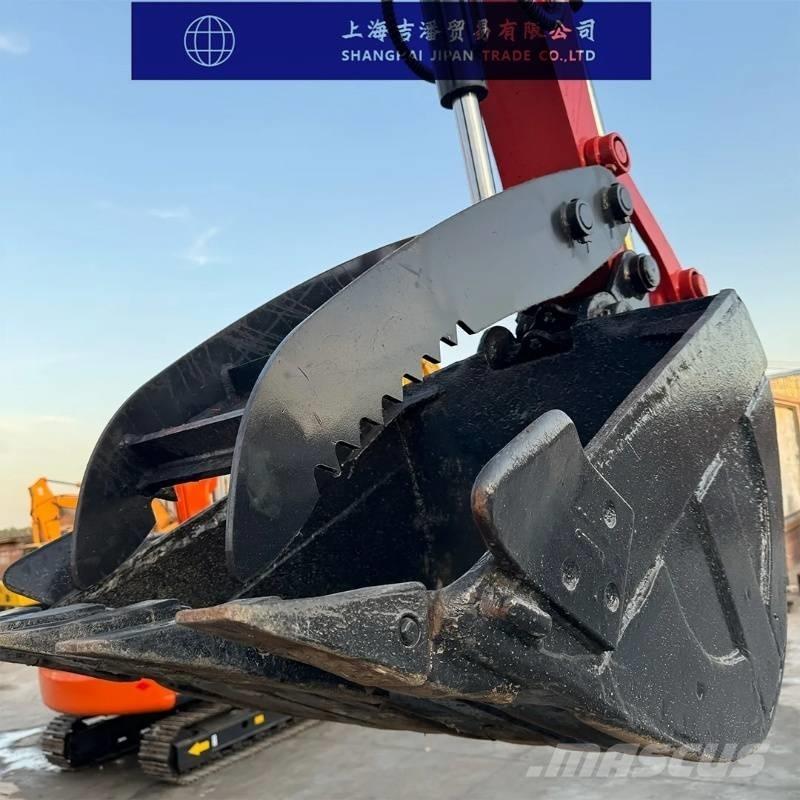

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Yanmar Vio80 Excavator Parameter Configuration specification The working weight of the whole machine (kg) is 7775 Bucket capacity (m³) 0.3 Origin: Fukuoka, Japan Tonnage (tons) 8 Joint ventures/imports Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Rotation speed (rpm) 9.4 Travel speed (km/h) 4.3/2.4 Climbing ability (%) 30° Grounding specific pressure (Kpa) 33.9 Bucket digging force (kN) 54.8 Stick digging force (kN) 38.2 dynamical system Engine model Yanmar 4TNV98-XBVB Rated power (kw/rpm) 43.4/2000 Displacement (L) 3.318 Number of cylinders (units) 4 Cooling method: Water cooling Working form: four-stroke water-cooled diesel engine Hydraulic system Main overflow set pressure (Mpa) 24.5 Main pump maximum flow rate (l/min) 70.4 60.4 13.0 Oil capacity Fuel tank (L) 100 Body size Total length of transport (mm) 6290 Total width of transport (mm) 2270 Total height of transport (mm) 2630 Cab total height (mm) 2630 Total track length (mm) 2890 Track shoe width (mm) 450 Total track width (mm) 2270 Minimum ground clearance (mm) 380 The minimum turning radius of the front working device (mm) is 2120 Rear end slewing radius (mm) 1130 Scope of work The maximum excavation radius of the stopping surface (mm) is 6740 Maximum digging depth (mm) 4400 Maximum digging height (mm) 7050 Maximum unloading height (mm) 4920 Maximum vertical digging depth (mm) 3500 Boom slew angle (left/right°) 68/68 Width × height (mm) of bulldozer plate 2260×450 Bulldozer shovel lifting or pushing depth (mm) 460
