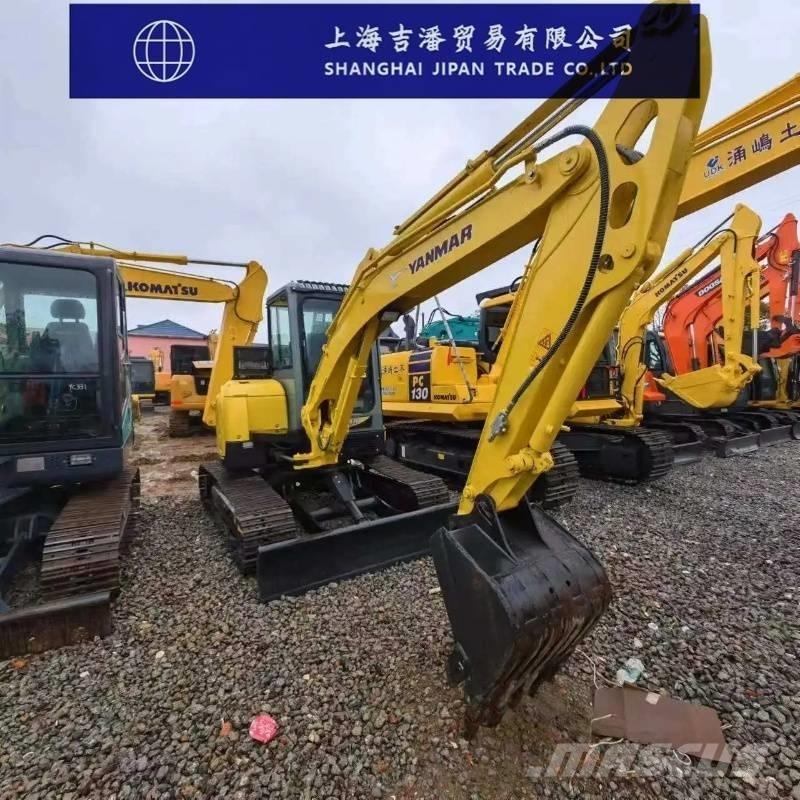

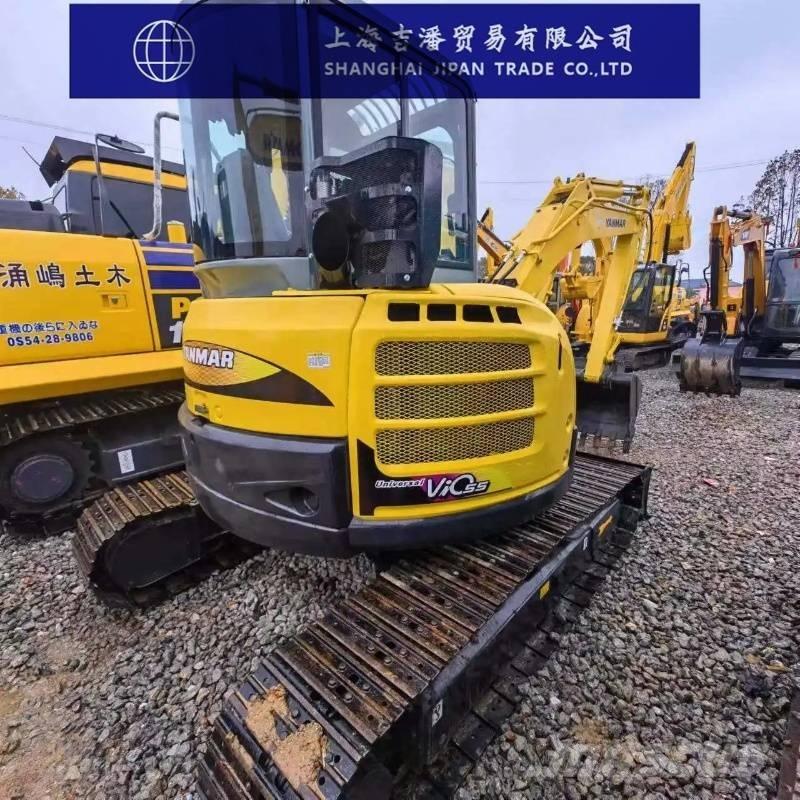

洋马 Vio 55

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Yanmar Vio55-5B excavator parameter configuration specification The working weight of the whole machine (kg) is 5320 Bucket capacity (m³) 0.16 Origin: Fukuoka, Japan Tonnage (tons) 5 Joint ventures/imports Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Rotational speed (rpm) 10 Travel speed (km/h) 4.4/2.3 Grounding specific voltage (Kpa) 28.8 Bucket digging force (kN) 33.8 Stick digging force (kN) 22.5 dynamical system Engine model Yanmar 4TNV88-PBVB Rated power (kw/rpm) 28.8/2400 Cooling method: Water cooling Working form: water-cooled direct injection diesel engine Hydraulic system Main overflow set pressure (Mpa) 24.5 The maximum flow rate (l/min) of the main pump is 40.3×2 40.3 11.7 Whether the hydraulic crushing pipeline is standard or not Oil capacity Fuel tank (L) 64 Body size Total length of transport (mm) 5560 Total Transport Width (mm) 1990 Total height of transport (mm) 2620 Cab overall height (mm) 2620 Total track length (mm) 2620 Track shoe width (mm) 400 (rubber or steel) Minimum ground clearance (mm) 360 The minimum turning radius of the front working device (mm) is 2320 Rear end slewing radius (mm) 995 Scope of work Maximum digging radius (mm) 4160 Maximum digging depth (mm) 3980 Maximum digging height (mm) 6440 Maximum unloading height (mm) 4400 Maximum vertical digging depth (mm) 2900 Boom slewing angle (left/right °) 70/70 Width × height of bulldozer plate (mm) 1970×400
