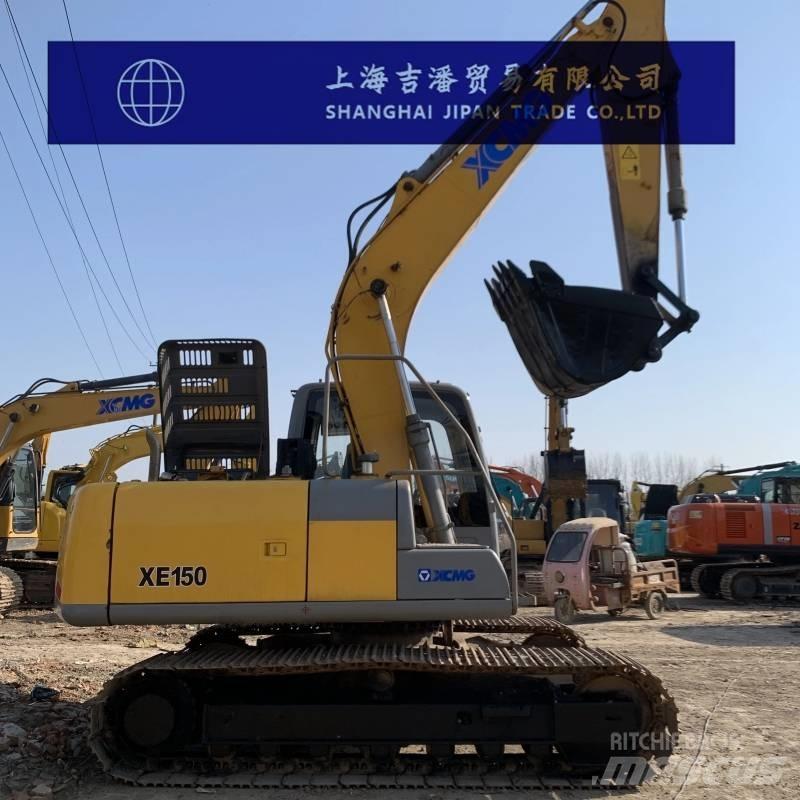

徐工 XE 150

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of XCMG XE150 excavator Specification Power Traditional Power Domestic manufacturer Bucket backhoe Tonnage (tons)15 The working weight of the entire machine (kg) is 14,600 Bucket capacity (m³) : 0.32-0.71 Boom length (mm) : 4600 The length of the boom (mm) is 2520 Origin: Xuzhou Performance Rotational speed (rpm) : 11.7 Walking speed (km/h) : 5.3/3.2 Climbing ability (%)35 Ground specific pressure (Kpa)37 Bucket digging force (kN) : 106.9 The digging force of the bucket arm (kN) is 73.4 Maximum traction force (kN)134 Power system Engine model: QSF3.8 Rated power (kw/rpm) : 93/2200 Maximum torque (N.m)500/1300 Displacement (L)3.8 Number of cylinders (4) The cooling method is water cooling Working mode: Turbocharged/air-to-air cooling Hydraulic system Main pump type variables: 2 plunger pumps + 1 gear pump The walking hydraulic motor type is a plunger hydraulic motor The rotary hydraulic motor type is a plunger hydraulic motor The maximum flow rate of the main pump (l/min) is 2×123.5 Pilot oil circuit (MPa)3.9 Walking hydraulic circuit (Mpa)34.4 Rotary hydraulic circuit (Mpa)25 The main overflow set pressure (Mpa) is 31.4/34.3 Oil capacity Fuel tank (L)260 Hydraulic oil tank (L)105 Engine oil change volume (L)11 Main body size The total transportation length (mm) is 7,795 The total transportation width (mm) is 2590 The total transportation height (mm) is 2900 Track grounding length (mm) : 2910 The total length of the track (mm) is 3658 Track plate width (mm) : 600 Track gauge (mm)1990 Minimum ground clearance (mm) : 477 The ground clearance of the counterweight (mm) is 948 The minimum turning radius (mm) of the front working device is 2335 Rear end turning radius (mm)2325 Scope of work Maximum excavation radius (mm) : 8304 Maximum excavation depth (mm) : 5535 Maximum excavation height (mm) : 8649 Maximum unloading height (mm) : 6185 The maximum vertical excavation depth (mm) is 4697 Width × height (mm) of the bulldozer board without a bulldozer shovel Lifting or deepening with a bulldozer (mm) without a bulldozer
