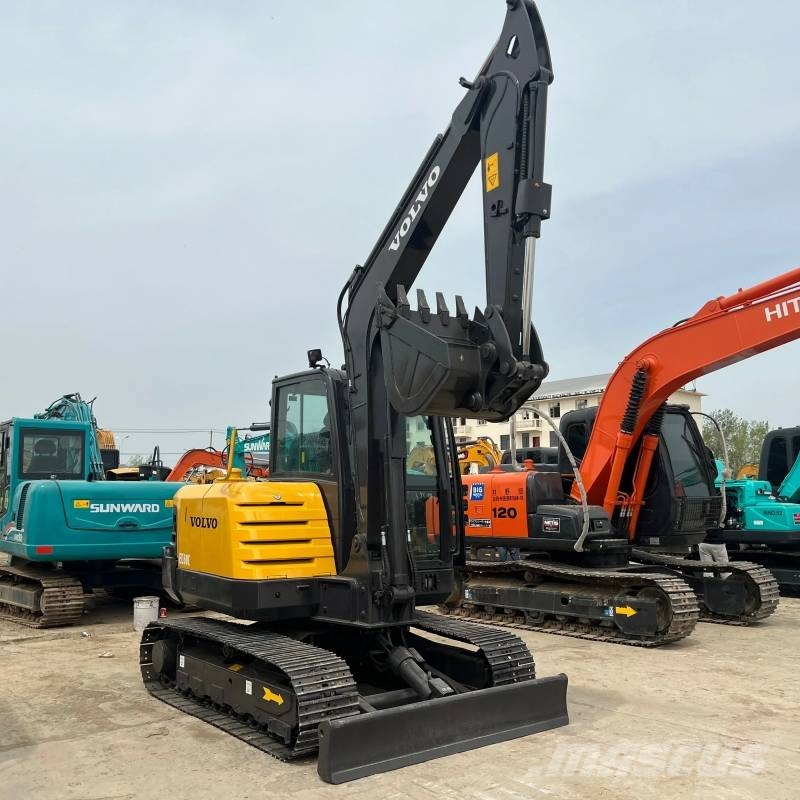

沃尔沃 EC60C

Company name:LONG WAY TRADING CO.,LTD Address:1898th Zaoxiang road ,Anyang City ,Henan province,China Contact: Nancy Tel : +8617739124690 WhatsApp:0086 13636464634 Wechat:17739124690 Email:

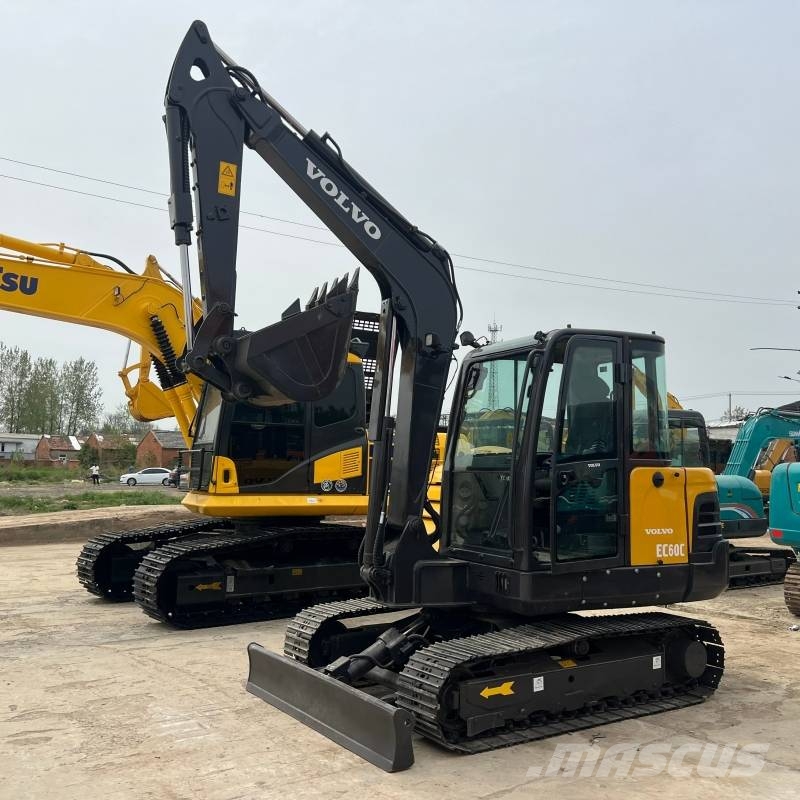

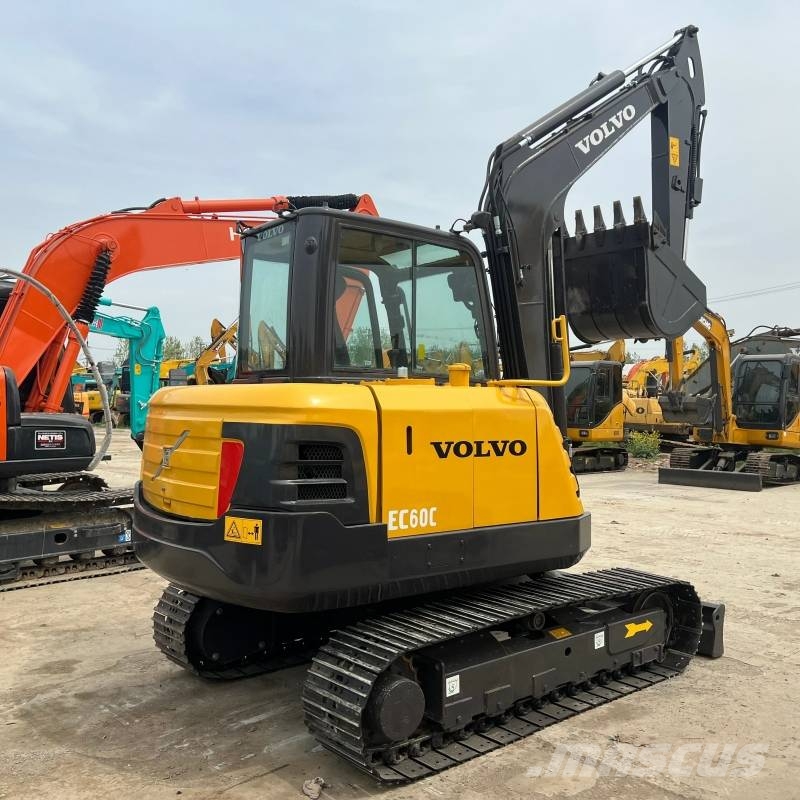

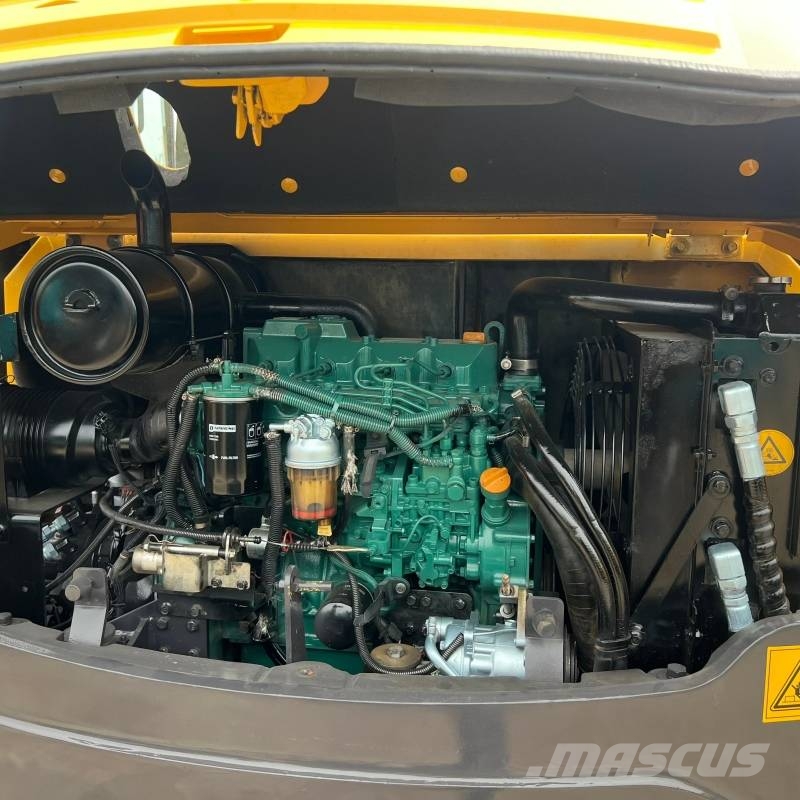

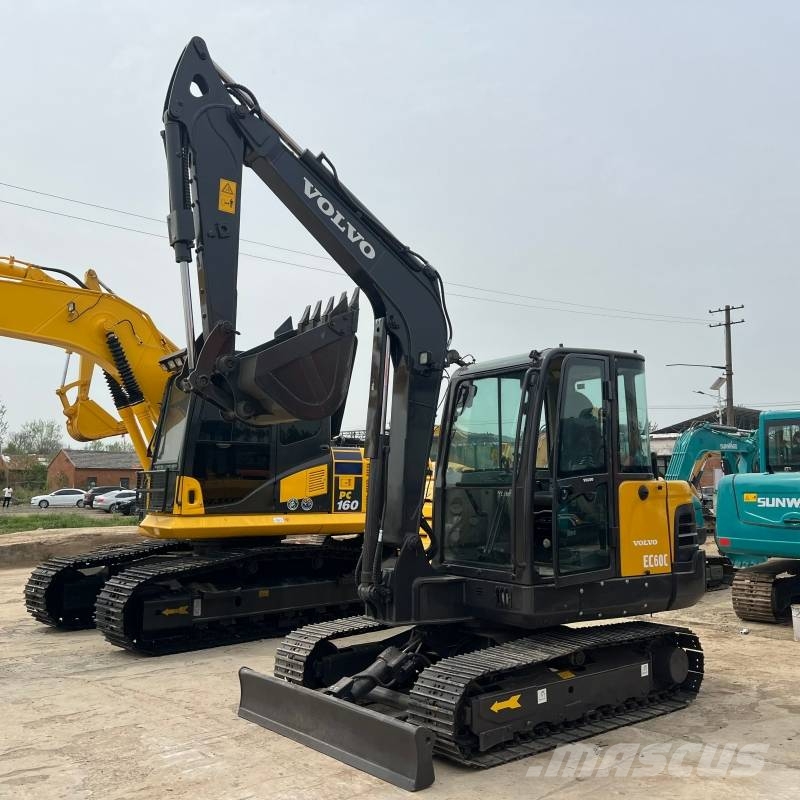

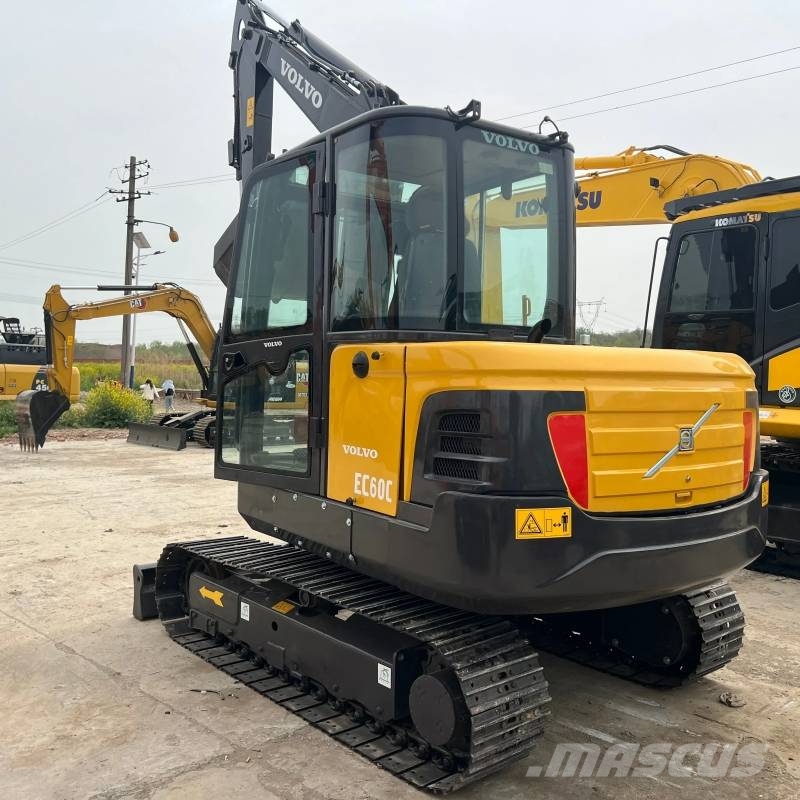

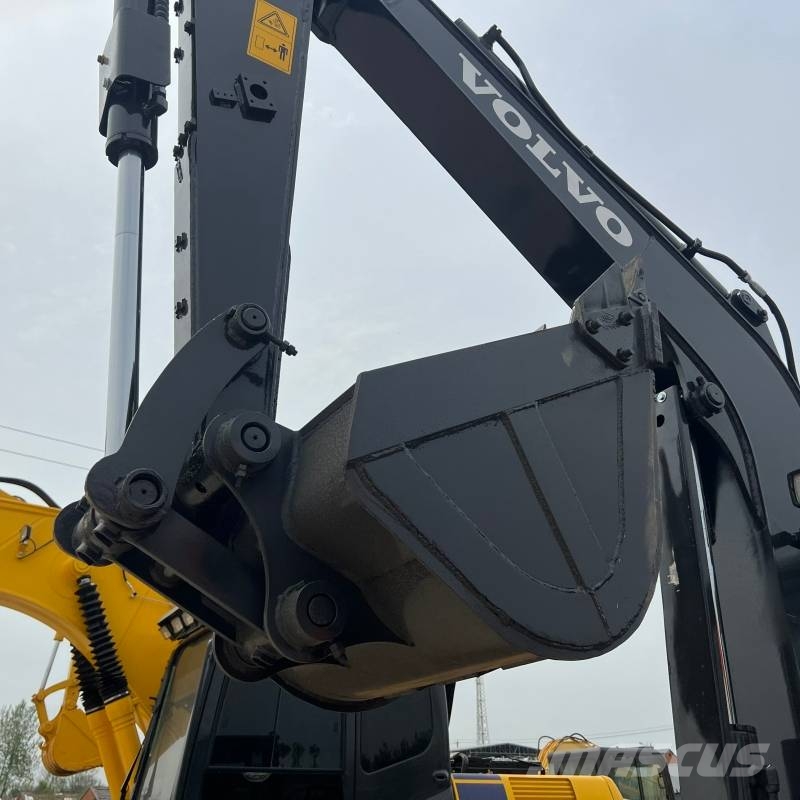

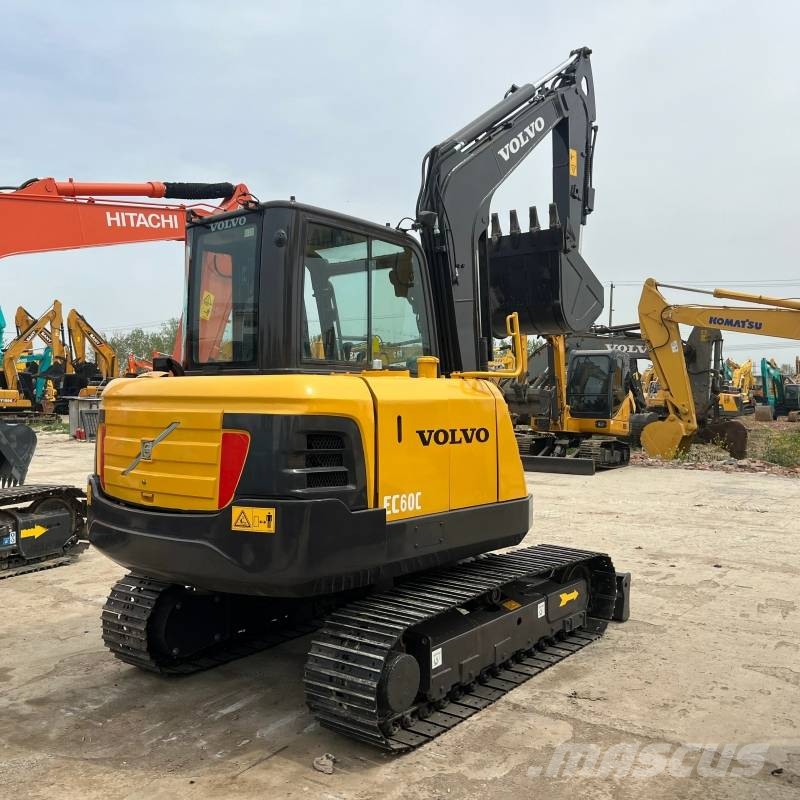

# Volvo EC60C 6-ton class compact crawler excavator, manufactured in South Korea, C series > > Emission standard: EU Stage IIIA, **factory CE certified**, no DPF, only DOC aftertreatment. Suitable for used machine export overseas ## Basic Machine Specifications - Operating weight: **5790 kg (380mm steel track); 5700 kg (400mm rubber track)** - Counterweight: **440 kg** - Standard bucket capacity: **0.3 m³** - Boom length: 3000 mm; Arm length: 1600 mm - Swing speed: 8.8 rpm - Travel speed: Low 2.4 km/h / High 4.5 km/h - Maximum traction force: 44.1 kN; Gradeability: 35° - Bucket digging force: 41.38 kN; Arm digging force: 28.44 kN ## Engine - Model: **Volvo D3.1D, 4-cylinder water-cooled diesel** - Displacement: 3.054 L - Rated power: 36.2 kW @2100 rpm (ISO9249) - Max torque: 193~210 Nm @1400 rpm - Bore × Stroke: 94 mm × 110 mm - Fuel tank: **110 L** - Fuel consumption reference: 4.5～6 L/h in general working conditions (varies with workload) ## Hydraulic System - Main pump: Variable double piston pump - Main pump flow: **2 × 57.8 L/min** - Main relief pressure: 21.6 MPa - Pilot pump: 13.7 L/min, pilot pressure 3.2 MPa - Hydraulic tank: 84 L; Total hydraulic system volume: 134 L - Hammer auxiliary hydraulic line (optional) ## Transport Dimensions (with cab & dozer blade, steel track) - Length: 5885 mm - Width: 1940 mm - Height: 2560 mm > > Track shoe width: Standard steel track 380 mm; optional rubber track 400 mm ## Digging Envelope (standard boom & arm) - Max digging reach: 6100 mm - Max digging depth: 3780 mm - Max dumping height: 4180 mm
