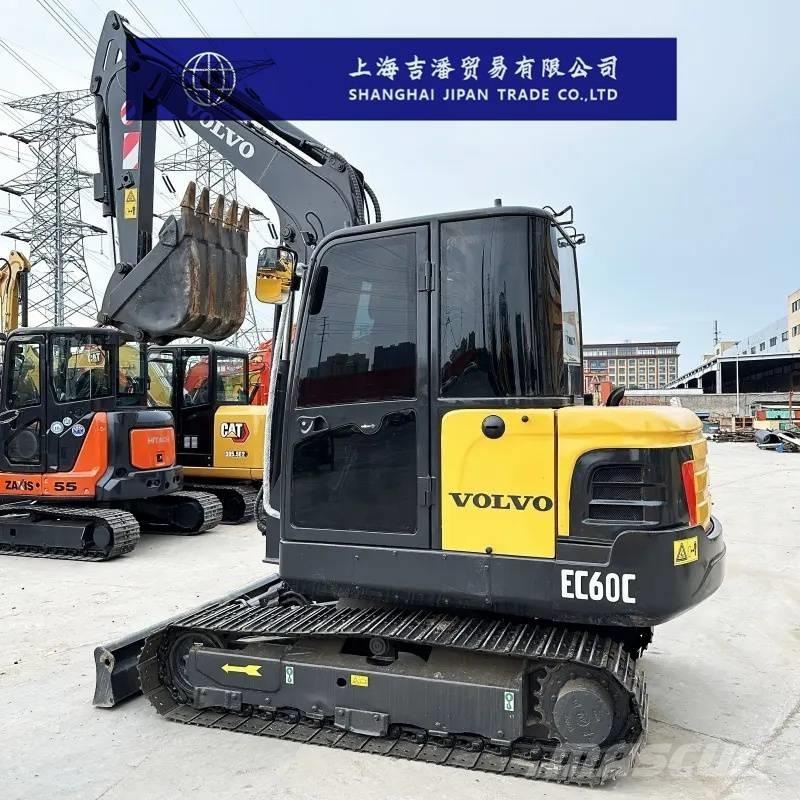

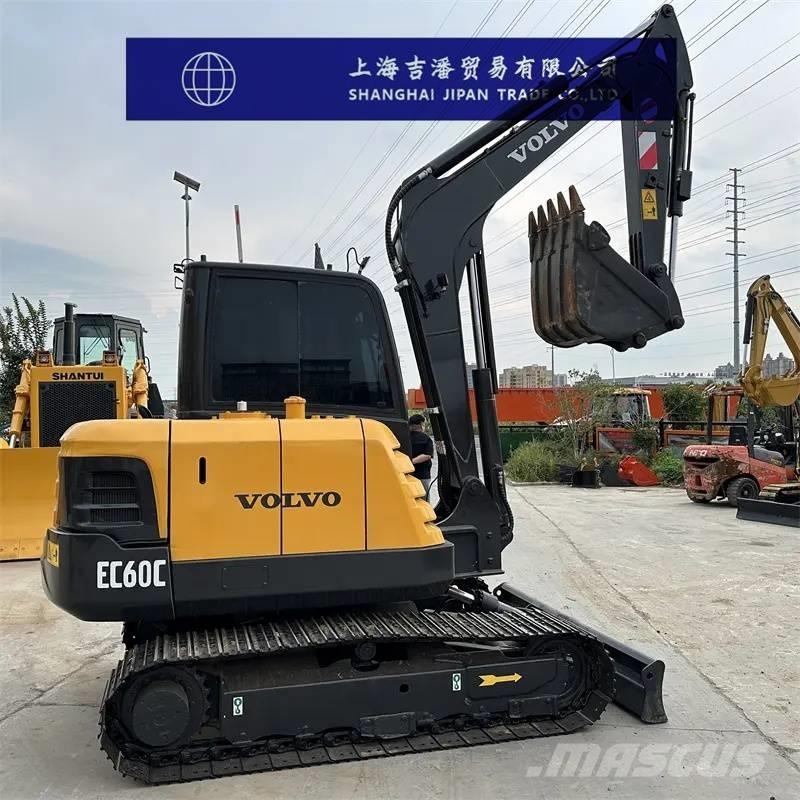

沃尔沃 EC 60

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Volvo EC60C Excavator Parameter Configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 6 The working weight of the whole machine (kg) is 5820 Bucket capacity (m³) 0.23 Boom length (mm) 3000 Stick length (mm) 1600 Country of origin: South Korea performance Slewing speed (rpm) 8.8 Travel speed (km/h) 4.5/2.4 Bucket digging force (kN) 36.6 Bucket digging force (kN) 26.8 Maximum traction (kN) 44.1 dynamical system Engine model D3.4D Rated power (kw/rpm) 38.2-39.7/2200 Maximum torque (N.m) 209/1650 Displacement (L) 3.319 Number of cylinders (units) 4 Bore × stroke (mm) 94×110 Working 4-cylinder diesel engine meets EPA-2 standard and EU IIIA standard. Hydraulic system Main pump type variable double acting piston pump Main pump maximum flow rate (l/min) 2 x 57.8 Main overflow set pressure (Mpa) 21.6 Oil capacity Fuel tank (L) 110 Hydraulic Tank (L) 84 Hydraulic System (L) 134 Engine oil change volume (L) 11.5 Coolant (L) 16 Body size Total length of transport (mm) 5872 Total width of transport (mm) 1920 Total height of transport (mm) 2563 Cab total height (mm) 2563 Track grounding length (mm) 1950 Total track length (mm) 2500 Track shoe width (mm) 400 Total width of the track (mm) 1920 Minimum ground clearance (mm) 380 Counterweight ground clearance (mm) 690 The minimum turning radius of the front working device (mm) is 2480 Rear end turning radius (mm) 1650 Scope of work Maximum digging radius (mm) 6100 The maximum excavation radius of the stopping surface (mm) is 5960 Maximum digging depth (mm) 3750 Maximum digging height (mm) 5680 Maximum unloading height (mm) 4140 Maximum vertical digging depth (mm) 3750 Width × height (mm) of bulldozer plate 1920×350 Dozer shovel lifting or pushing depth (mm) 380/508
