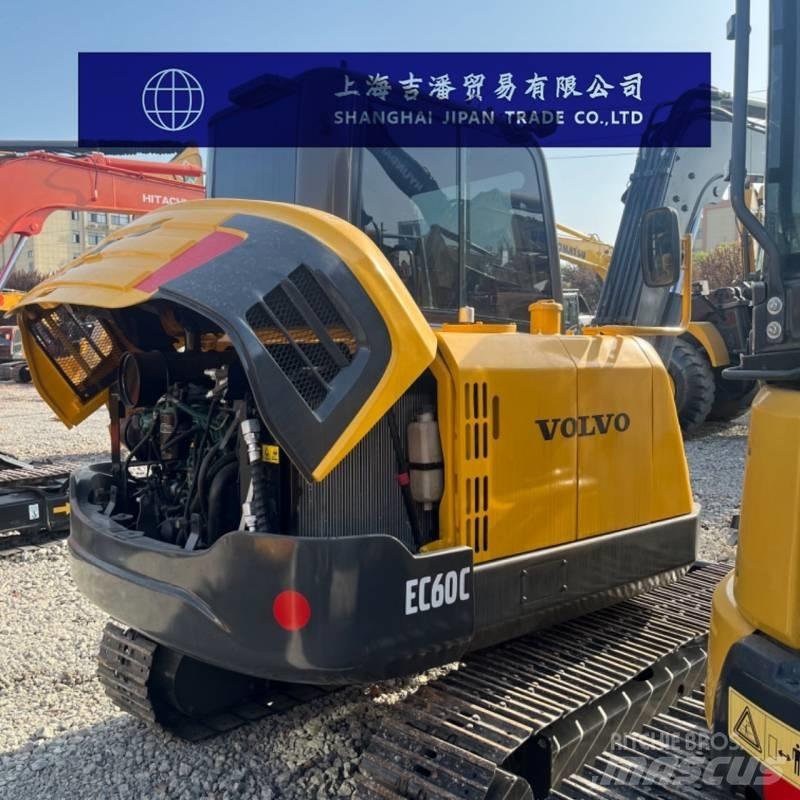

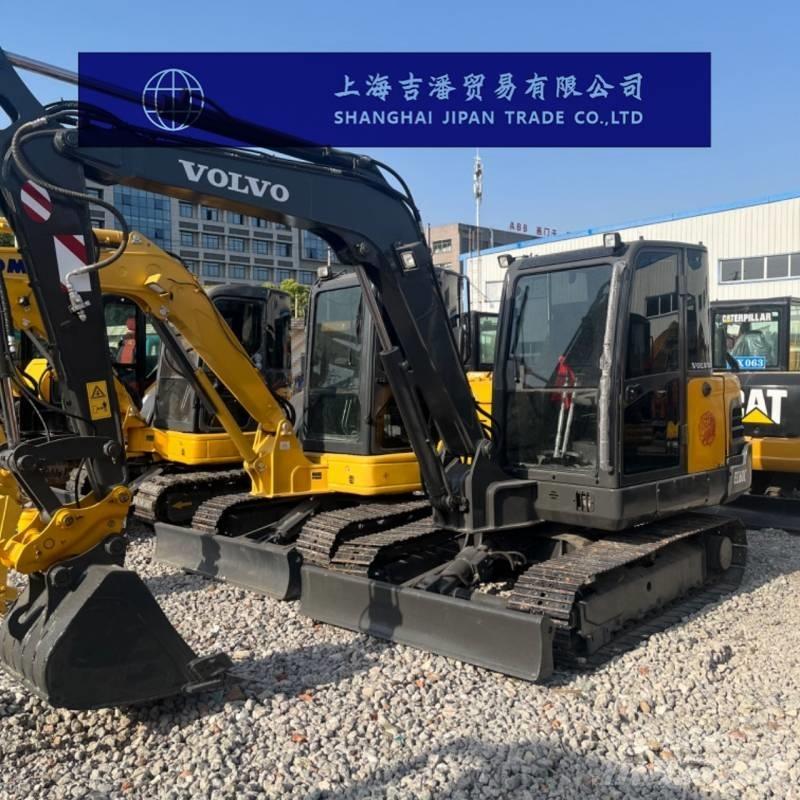

沃尔沃 EC 60 C

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Volvo EC60C excavator parameter configuration Specification Power, traditional power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)6 The overall working weight of the machine (kg) is 5820 Bucket capacity (m³)0.23 Boom length (mm)3000 The length of the bucket pole (mm) is 1600 Origin: South Korea Performance Rotational speed (rpm)8.8 Walking speed (km/h) : 4.5/2.4 Bucket digging force (kN)36.6 The digging force of the boom (kN) is 26.8 Maximum traction force (kN)44.1 Power system Engine model D3.4D Rated power (kw/rpm)38.2-39.7/2200 Maximum torque (N.m)209/1650 Displacement (L) : 3.319 Number of cylinders (4) Bore × stroke (mm)94×110 The working form of the 4-cylinder diesel engine complies with the EPA-2 standard and the EU IIIA standard. Hydraulic system The main pump type is a variable double-acting plunger pump The maximum flow rate of the main pump (l/min) is 2 x 57.8 The main overflow set pressure (Mpa) is 21.6 Oil capacity Fuel tank (L)110 Hydraulic oil tank (L)84 Hydraulic System (L)134 Engine oil change rate (L)11.5 Coolant (L)16 Main body size Total transportation length (mm) : 5872 Total transportation width (mm) : 1920 Total transportation height (mm) : 2563 The total height of the cab (mm) is 2563 Track grounding length (mm)1950 The total length of the track (mm) is 2500 Track plate width (mm)400 Total track width (mm) : 1920 Minimum ground clearance (mm)380 Counterweight ground clearance (mm)690 The minimum turning radius (mm) of the front-end working device is 2480 The rear end rotation radius (mm) is 1650 Scope of work Maximum excavation radius (mm) : 6100 The maximum excavation radius (mm) of the shutdown surface is 5960 The maximum excavation depth (mm) is 3750 Maximum excavation height (mm) : 5680 Maximum unloading height (mm) : 4140 The maximum vertical excavation depth (mm) is 3750 The width × height (mm) of the push board is 1920×350 Bulldozer lift or push depth (mm)380/508
