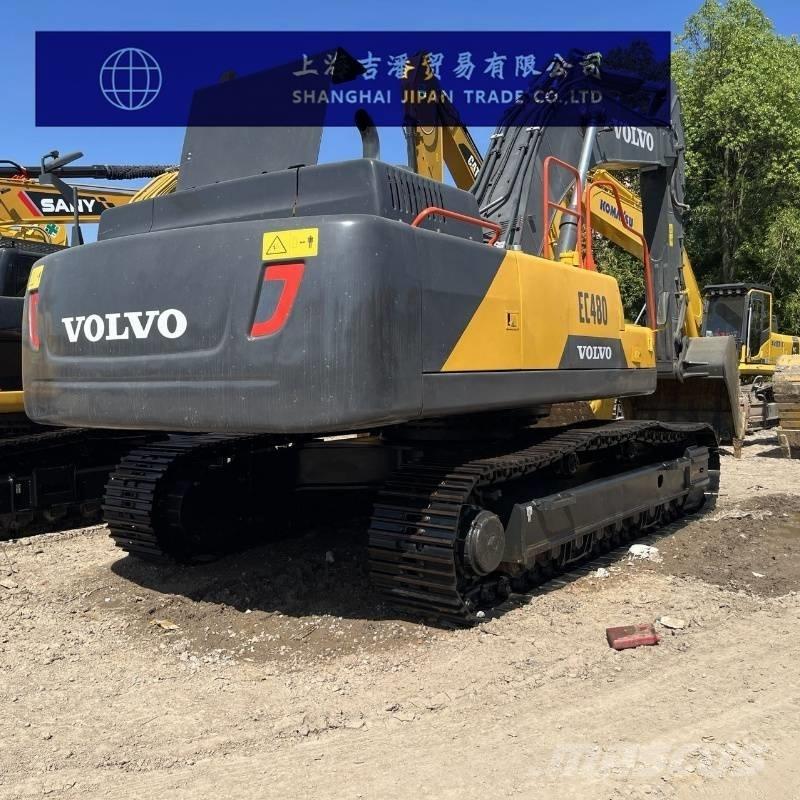

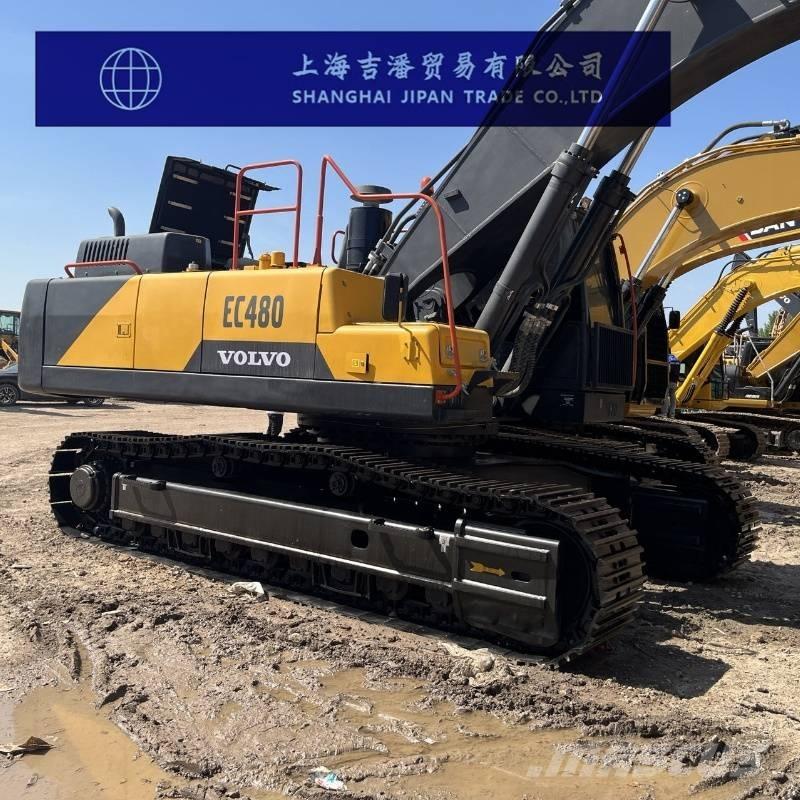

沃尔沃 EC 480

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Specifications Power Type: Conventional power Manufacturer: Joint venture/Imported Bucket Type: Backhoe Tonnage: 48 tons Operating Weight (kg): 47,300 ~ 53,100 Bucket Capacity (m³): 1.77 - 3.8 Performance Swing Speed (rpm): 8.8 Swing Torque (Nm): 166.3 Travel Speed (km/h): 3.1 / 5.1 Maximum Traction Force (kN): 330 Power System Engine Model: D13F Rated Power (kW/rpm): 270 / 1800 Maximum Torque (N·m): 1800 / 1400 Displacement (L): 12.8 Number of Cylinders: 6 Bore × Stroke (mm): 131 × 158 Hydraulic System Maximum Main Pump Flow (L/min): 2 × 358 Pilot Pump Flow (L/min): 1 × 32 Pilot Circuit Pressure (MPa): 3.9 Travel Hydraulic Circuit Pressure (MPa): 32.4 Swing Hydraulic Circuit Pressure (MPa): 25.8 Boom Cylinders - Quantity × Bore × Stroke (mm): 2 × 165 × 1,590 Arm Cylinders - Quantity × Bore × Stroke (mm): 1 × 190 × 1,850 Bucket Cylinders - Quantity × Bore × Stroke (mm): 1 × 165 × 1,330 Fluid Capacities Fuel Tank (L): 685 Hydraulic Oil Tank (L): 270 Hydraulic System (L): 520 Engine Oil Change Capacity (L): 42 Coolant (L): 60 Dimensions Total Transport Length (mm): 11,630 Total Transport Width (mm): 3,340 Overall Cab Height (mm): 3,257 Upper Structure Width (mm): 2,990 Track Ground Contact Length (mm): 4,370 Total Track Length (mm): 5,370 Track Shoe Width (mm): 600 Track Gauge (mm): 2,740 Counterweight Ground Clearance (mm): 1,275 Minimum Ground Clearance (mm): 550 Tail Swing Radius (mm): 3,880 Number of Top Rollers (per side): 2 Number of Track Shoes (per side): 52 Number of Track Rollers (per side): 9 Working Range Maximum Digging Radius (mm): 10,930 Maximum Digging Radius at Ground Level (mm): 10,680 Maximum Digging Depth (mm): 6,580 Maximum Digging Height (mm): 10,600 Maximum Dumping Height (mm): 6,970 Maximum Vertical Digging Depth (mm): 5,990
