沃尔沃 EC 480 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

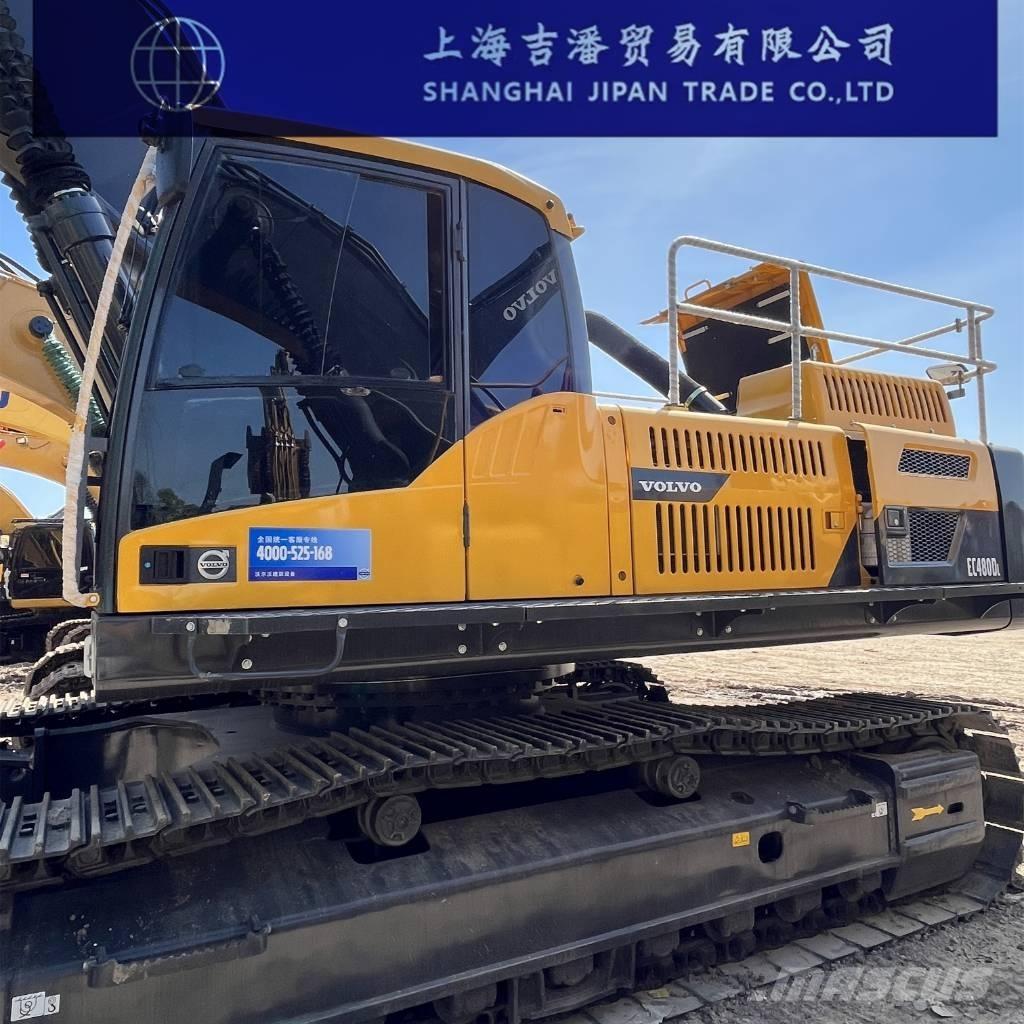

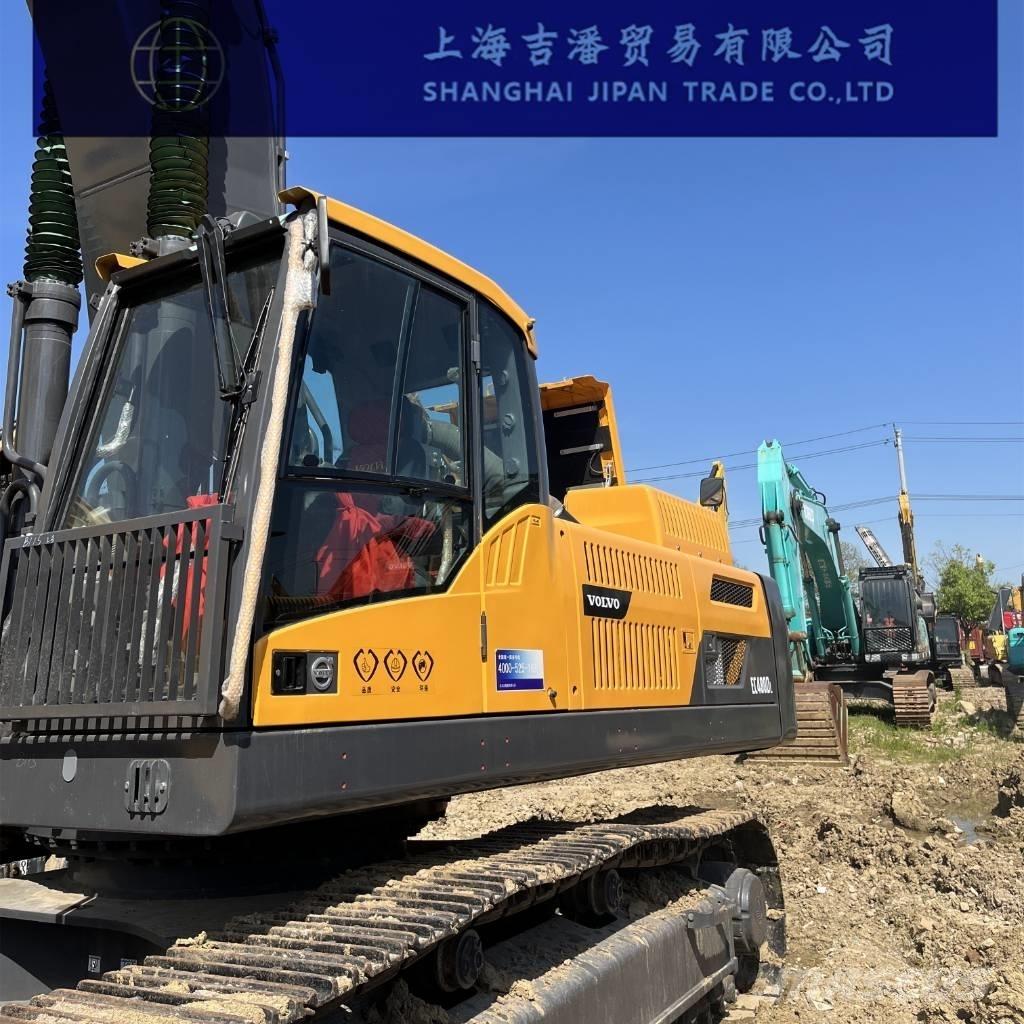

Volvo EC480DL Excavator Parameter configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 48 The working weight of the whole machine (kg) is 47,300~53,100 Bucket capacity (m³) 1.77 - 3.8 performance Slewing speed (rpm) 8.8 Slewing torque (Nm) 166.3 Travel speed (km/h) 3.1 / 5.1 Maximum traction (kN) 330 dynamical system Engine model D13F Rated power (kw/rpm) 270/1800 Maximum torque (N.m) 1800 / 1400 Displacement (L) 12.8 Number of cylinders (pcs) 6 Bore × stroke (mm) 131×158 Hydraulic system Main pump maximum flow rate (l/min) 2 x 358 Pilot pump flow rate (L/min) 1 x 32 Pilot oil circuit (MPa) 3.9 Walking Hydraulic Circuit (Mpa) 32.4 Slewing hydraulic circuit (Mpa) 25.8 Boom cylinder - number × bore × stroke (mm) 2*165 x 1,590 Bucket Cylinder - Number × Bore × Stroke (mm) 1*190 x 1,850 Bucket cylinder - number × bore × stroke (mm) 1*165 x 1,330 Oil capacity Fuel tank (L) 685 Hydraulic Tank (L) 270 Hydraulic system (L) 520 Engine oil change volume (L) 42 Coolant (L) 60 Body size Total length of transport (mm) 11630 Total width of transport (mm) 3340 Cab overall height (mm) 3257 Mount width (mm) 2990 Track grounding length (mm) 4370 Total track length (mm) 5370 Track shoe width (mm) 600 Track gauge (mm) 2740 Counterweight ground clearance (mm) 1275 Minimum ground clearance (mm) 550 Rear end turning radius (mm) 3880 Number of support wheels (one side) (pcs) 2 Number of track shoes (single side) (pcs) 52 Number of support wheels (unilateral) (pieces) 9 Scope of work Maximum digging radius (mm) 10930 The maximum excavation radius of the stopping surface (mm) is 10680 Maximum digging depth (mm) 6580 Maximum digging height (mm) 10600 Maximum unloading height (mm) 6970 Maximum vertical digging depth (mm) 5990
