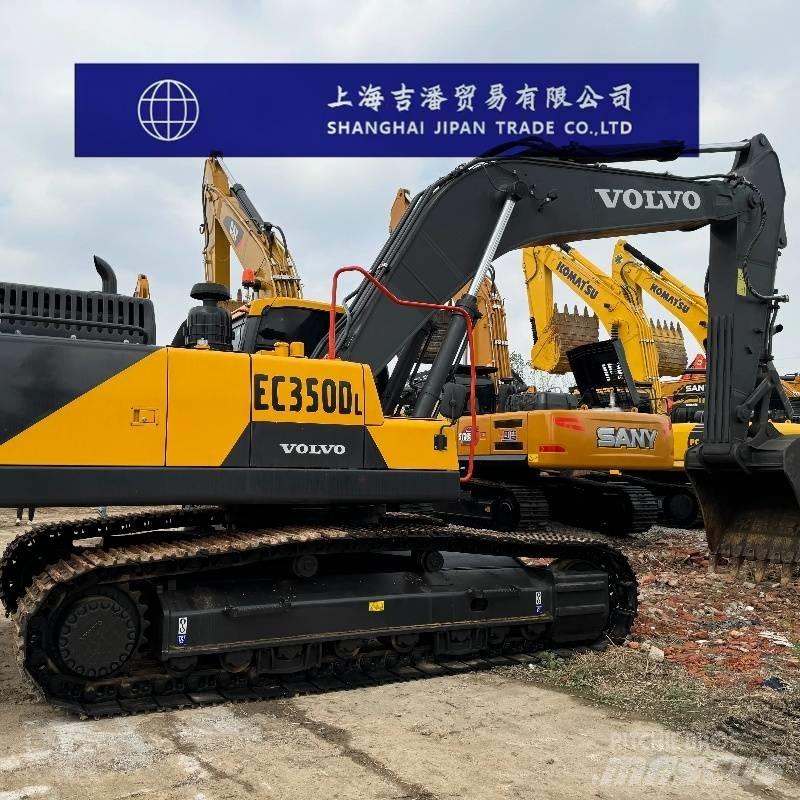

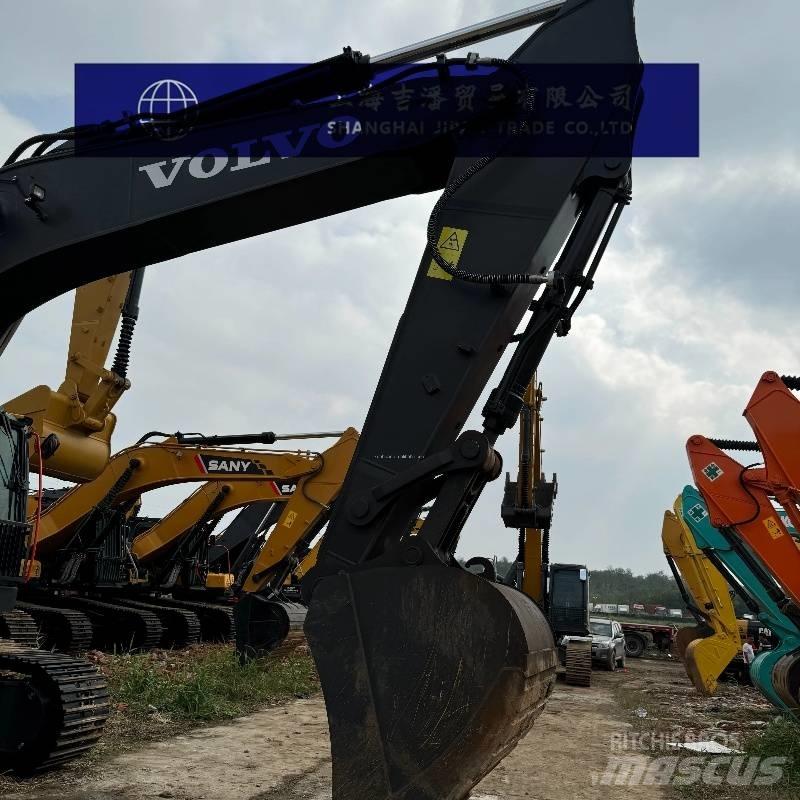

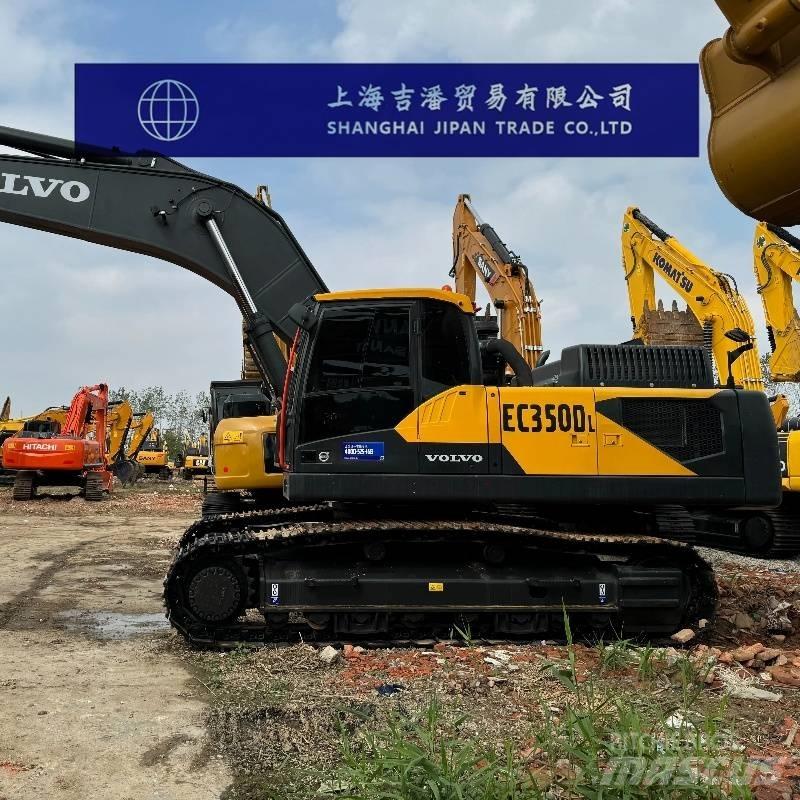

沃尔沃 EC 350

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Power, traditional power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)35 The working weight of the entire machine (kg) is 34,300-38,700 Bucket capacity (m³) : 1.0-2.53 Origin: South Korea Performance Rotational speed (rpm)10.3 Rotational torque (Nm)126 Walking speed (km/h)3.3/5.1 Climbing ability (%)35° Maximum traction force (kN)261 Power system Engine model: Volvo D8K Rated power (kw/rpm)197/1800 Maximum torque (N.m)1340 Displacement (L)7.8 Bore × stroke (mm) : 110×138 Hydraulic system The maximum flow rate of the main pump (l/min) is 2×288 Working hydraulic oil circuit (Mpa)33.3/36.3 Walking hydraulic Circuit (Mpa)33.3 Rotary hydraulic circuit (Mpa)27.9 Control hydraulic Circuit (Mpa)3.9 Boom cylinder - Number × cylinder bore × stroke (mm)2×150×1530 Bucket rod cylinder - Number × cylinder diameter × stroke (mm)1×170×1700 Oil capacity Fuel tank (L)580 Hydraulic oil tank (L)215 Hydraulic system (L)465 Engine oil change rate (L) : 32 Coolant (L)41 Main body size Total transportation length (mm) : 11,190 Total transportation width (mm) : 3190 Total transportation height (mm) : 3230 The total height of the cab (mm) is 3030 The width of the vehicle (mm) is 2990 Track grounding length (mm) : 3700 Total track length (mm) : 4630 Track plate width (mm)600 Track gauge (mm) : 2590 Minimum ground clearance (mm)500 The ground clearance of counterweight (mm) is 1180 The rotation radius at the rear end (mm) is 4120 Scope of work Maximum excavation radius (mm) : 11110 The maximum excavation radius (mm) of the shutdown surface is 10900 Maximum excavation depth (mm) : 7480 Maximum excavation height (mm) : 10330 Maximum unloading height (mm) : 7250 The maximum vertical excavation depth (mm) is 5890
