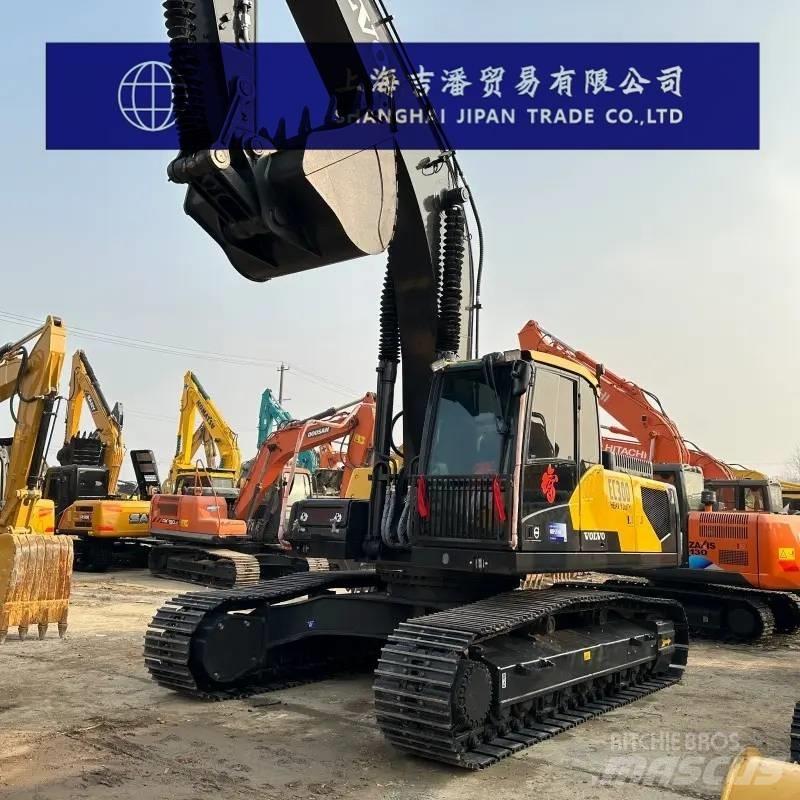

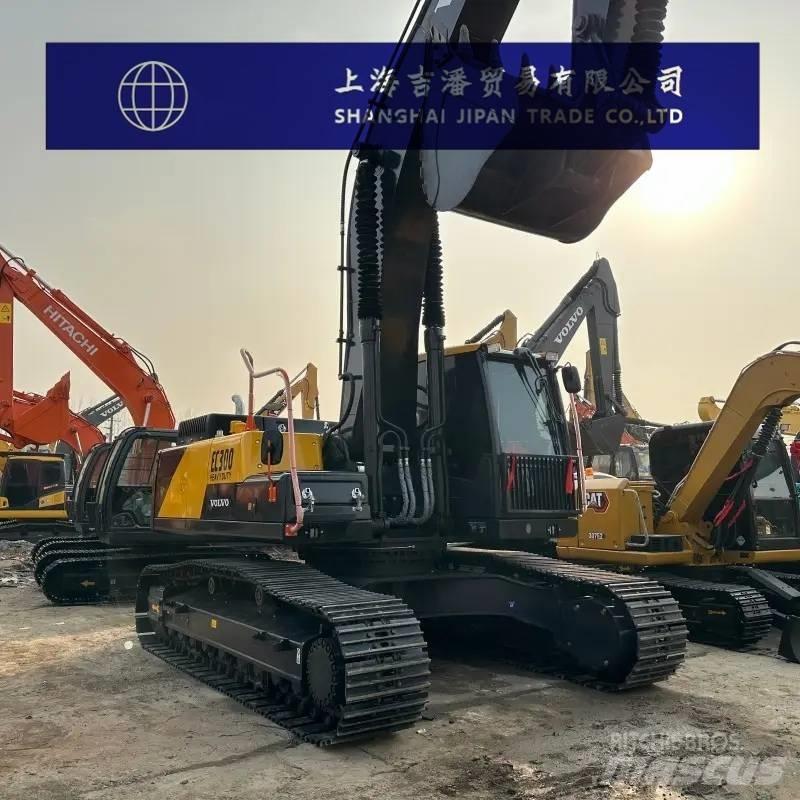

沃尔沃 EC 300

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

规格 动力传统动力 厂商合资/进口 铲斗反铲 吨位(吨)30 整机工作重量(kg)30040 铲斗容量(m³)1.4 动臂长度(mm)6430 斗杆长度(mm)3710 性能 回转速度(rpm)10.7 回转扭矩(Nm)110.9 行走速度(km/h)3.4/5.4 爬坡能力(%)35° 最大牵引力(kN)247 动力系统 发动机型号D7E 额定功率(kw/rpm)169/1800 最大扭矩(N.m)1080/1350 排量(L)7.1 气缸数(个)6 缸径×行程(mm)108×130 工作形式涡轮增压、4冲程、水冷、直喷式 液压系统 主泵最大流量(l/min)2×263 工作液压油路(Mpa)33.3/36.3 行走液压回路(Mpa)36.3 回转液压回路(Mpa )27.9 动臂油缸-个数×缸径×行程(mm)2×140×1480 斗杆油缸-个数×缸径×行程(mm)1×150×1745 铲斗油缸-个数×缸径×行程(mm)1×140×1140 油类容量 燃油箱(L)470 液压油箱(L)195 液压系统(L)400 冷却液(L )41 主体尺寸 运输总长度(mm)10640 运输总宽度(mm)3190 运输总高度(mm)3090 驾驶室全高(mm)3090 上车宽度(mm)890 履带总长度(mm)4870 履带板宽度(mm)600 最小离地间隙(mm )480 配重离地间隙(mm)1135 作业范围 最大挖掘半径(mm)10190 停机面最大挖掘半径(mm)9980 最大挖掘深度(mm)6850 最大挖掘高度(mm)9660 最大卸载高度(mm)6670 最大垂直挖掘深度(mm)5730 最大有效挖掘深度(mm)6610
