沃尔沃 EC 240

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

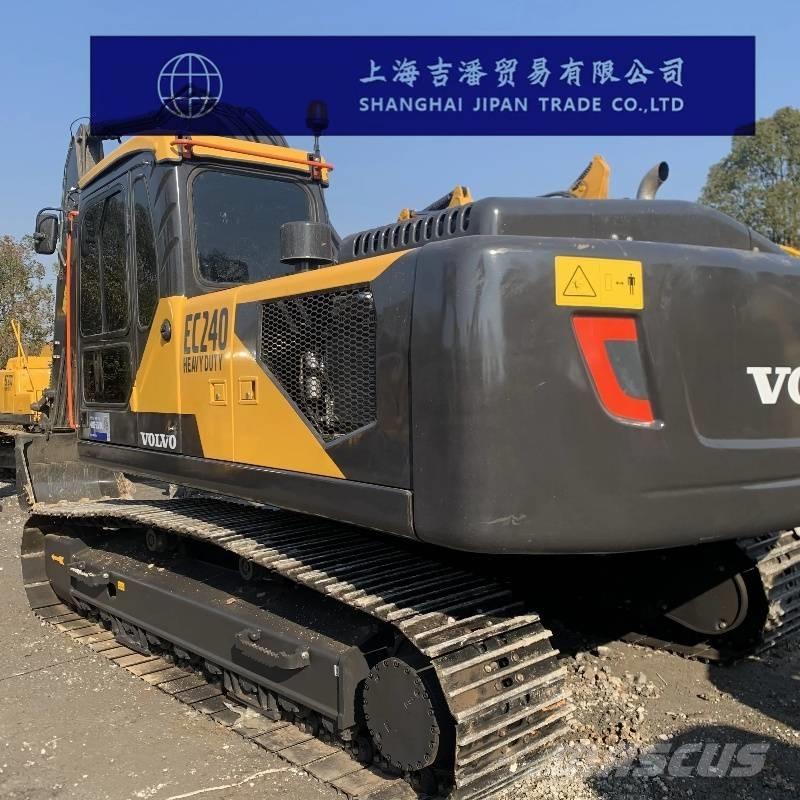

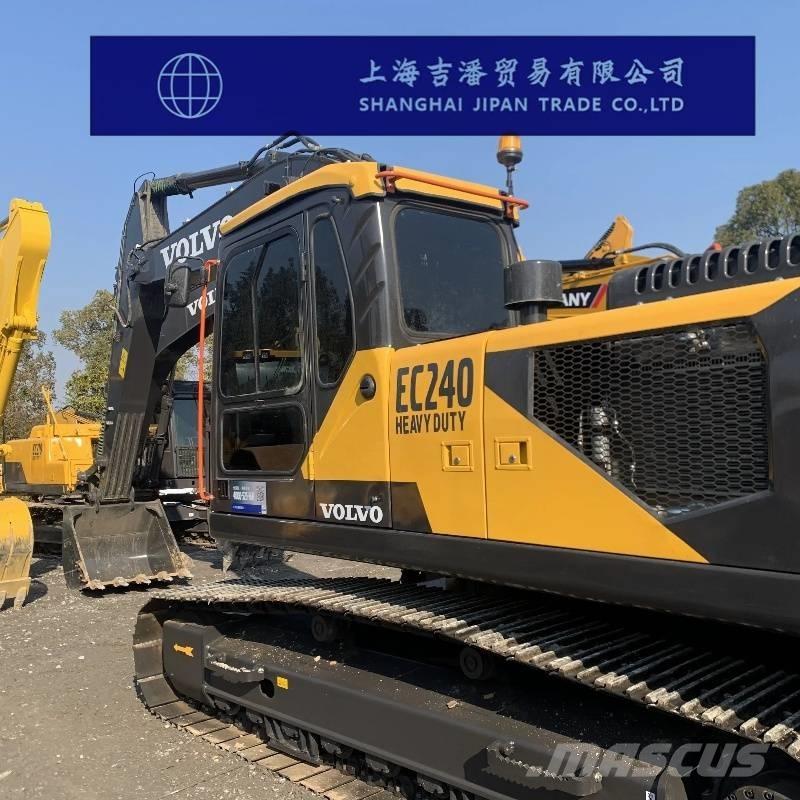

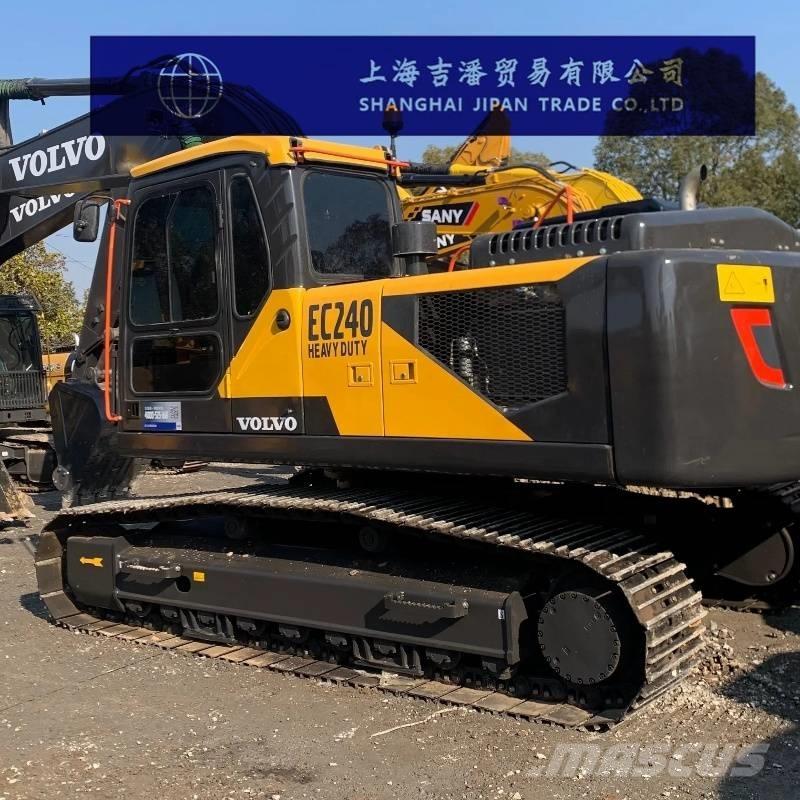

Volvo EC240B Excavator Parameter Configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe The working weight of the whole machine (kg) is 24300 Bucket capacity (m³) 1.05-1.98 Boom length (mm) 6000 Stick length (mm) 2970 Tonnage (tons) 24 Bucket backhoe Joint ventures/imports Power: Traditional power performance Slew speed (rpm) 11.4 Travel speed (km/h) 3. 2/5.5 Climbing ability (%) 70 Grounding specific voltage (Kpa) 50 Bucket Digging Force (kN) 160.8 (Standard Mode) / 175.5 (Afterburner Mode) Bucket digging force (kN) 111.1 (standard mode) / 121.6 (afterburner mode) dynamical system Engine model Volvo D7D Rated power (kw/rpm) 134/2000 Displacement (L) 7.1 Number of cylinders (pcs) 6 Bore × stroke (mm) 108×130 Cooling method: Water cooling Maximum torque in working form: 750N.m/1400rpm, turbocharged Hydraulic system Main pump type variable axial piston pump × 2 gear pump Traveling hydraulic motor type variable axial piston motor Slewing hydraulic motor type axial plunger hydraulic motor The maximum flow rate of the main pump (l/min) is 230×2 20 Working hydraulic oil circuit (Mpa) 31.4/34.3 Traveling Hydraulic Circuit (Mpa) 34.3 Slewing hydraulic circuit (Mpa) 26.5 Control Hydraulic Circuit (Mpa) 3.9 Boom cylinder - number × bore × stroke (mm) 2-135×1345 Bucket Cylinder - Number of Numbers× Bore × Stroke (mm) 1-140×1665 Bucket cylinder - number × bore × stroke (mm) 1-130×1150 Oil capacity Fuel tank (L) 380 Hydraulic Tank (L) 190 Hydraulic System (L) 320 Engine oil change volume (L) 32 Coolant (L) 44 Body size Total length of transport (mm) 10020 Total width of transport (mm) 2990 Total height of transport (mm) 3040 The overall height of the cab (mm) is 2990 Track grounding length (mm) 3660 Total track length (mm) 4460 Track shoe width (mm) 600 Total track width (mm) 2990 Track gauge (mm) 2390 Minimum ground clearance (mm) 470 Counterweight ground clearance (mm) 1080 The minimum turning radius of the front working device (mm) is 3890 Rear end turning radius (mm) 2940 Scope of work Maximum digging radius (mm) 10260 The maximum excavation radius of the shutdown surface (mm) is 10080 Maximum digging depth (mm) 6980 Maximum digging height (mm) 9690 Maximum unloading height (mm) 6800 Maximum vertical digging depth (mm) 5970 Maximum effective digging depth (mm) 6740
