沃尔沃 EC 220

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

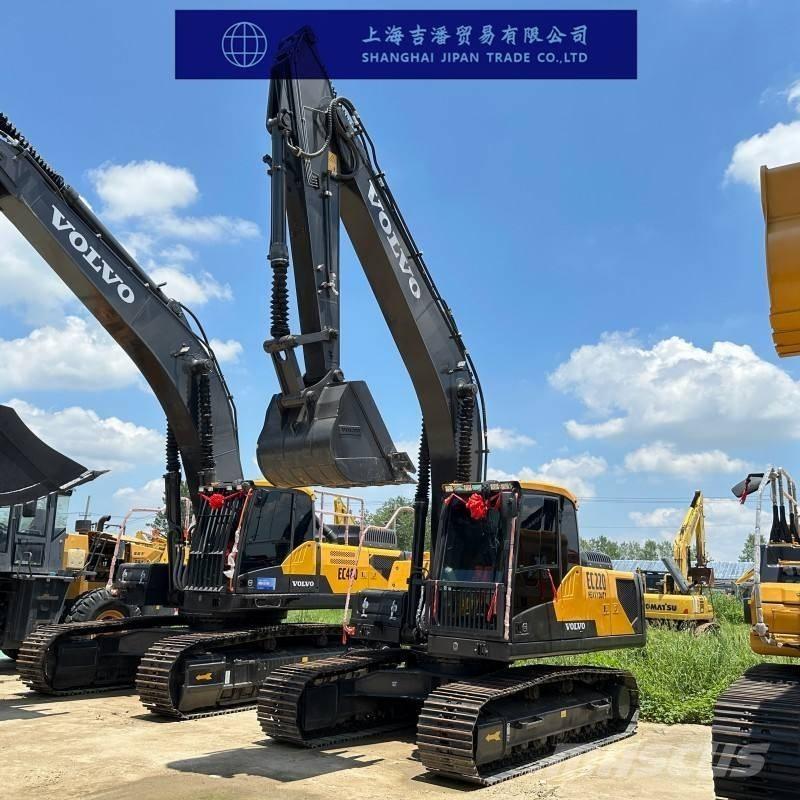

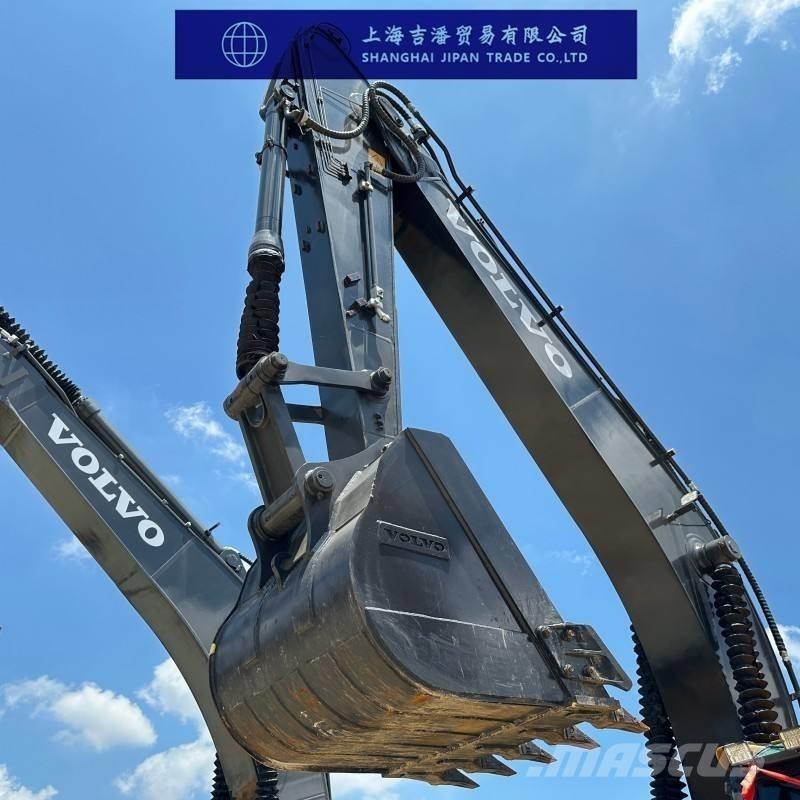

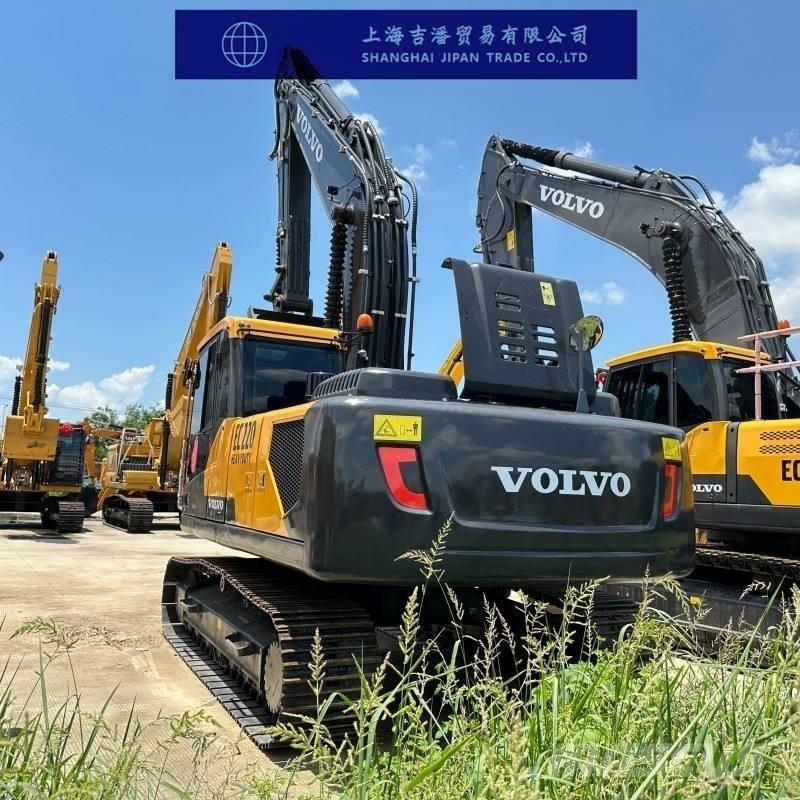

Volvo EC220 CN4 National IV Excavator Parameter Configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 22 The working weight of the whole machine (kg) is 22100 Bucket capacity (m³) 0.48 - 1.44 Boom length (mm) 5700 Stick length (mm) 2900 performance Rotational speed (rpm) 11 Slewing torque (Nm) 83k Travel speed (km/h) 3.5/5.6 Climbing ability (%) 35° Bucket digging force (kN) 136 Stick digging force (kN) 108 Maximum traction (kN) 183 dynamical system Engine model Volvo D6J Rated power (kw/rpm) 129/1800 Maximum torque (N.m) 850/1350 Hydraulic system Main pump maximum flow rate (l/min) 2 x 207 Working Hydraulic Oil Circuit (Mpa) 34.6/36.3 Traveling Hydraulic Circuit (Mpa) 34.3 Slewing hydraulic circuit (Mpa) 27.9 Oil capacity Fuel tank (L) 360 Hydraulic Tank (L) 140 Hydraulic System (L) 250 Engine oil change volume (L) 25 Coolant (L) 14 Urea Tank (L) 30 Body size Total length of transport (mm) 9690 Total width of transport (mm) 2990 Total height of transport (mm) 2940 Cab total height (mm) 2929 Boarding width (mm) 2500 Total track length (mm) 4460 Track shoe width (mm) 600 Track gauge (mm) 2390 Minimum ground clearance (mm) 460 Counterweight ground clearance (mm) 1011 Rear end slewing radius (mm) 2850 Scope of work Maximum digging radius (mm) 9930 Maximum digging depth (mm) 6730
