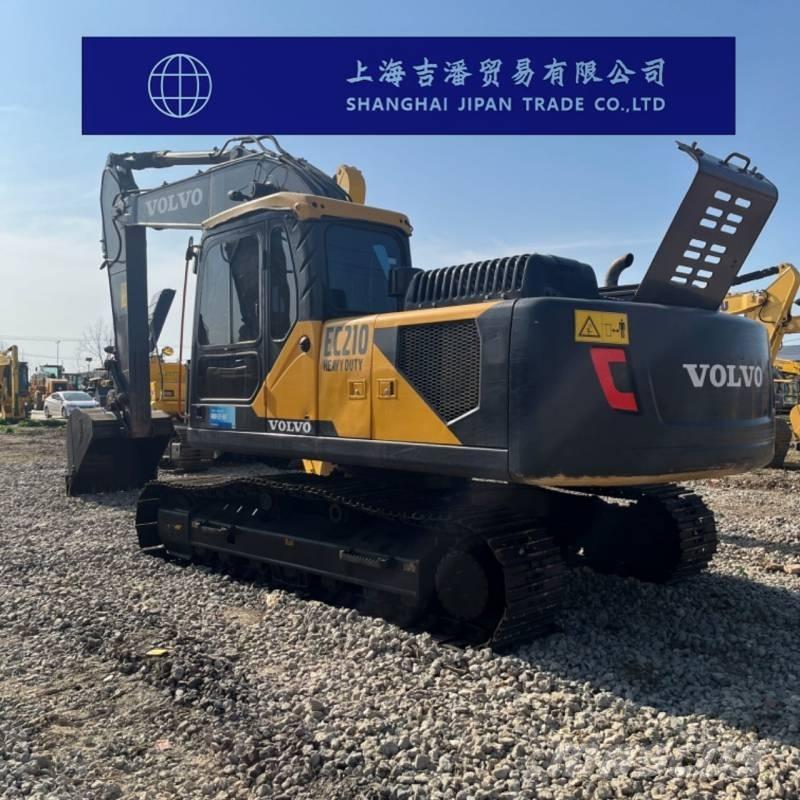

沃尔沃 EC 210

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck mounted cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Power: Traditional power Manufacturer: Joint venture/Imported Bucket Type: Backhoe Tonnage (tons)21 The working weight of the entire machine (kg) is 18,100-22,800 Bucket capacity (m³):0.52-1.22 Boom length (mm):5700 The length of the boom (mm) is 2900 Performance Rotational speed (rpm):12.3 The rotary torque (Nm) is 76.7 Walking speed (km/h):3.5/5.8 Bucket digging force (kN)123 The digging force of the boom (kN) is 96 Maximum traction force (kN)183 Power system Engine model: Volvo D5E Rated power (kw/rpm):123/2000 Maximum torque (N.m):670/1,600 Displacement (L):4.7 Number of cylinders:4 Cylinder diameter × stroke (mm)108*130 Hydraulic system The main pump type consists of two variable displacement axial piston pumps The pilot pump type is a gear pump The maximum flow rate of the main pump (l/min) is 2 x 212 Pilot pump flow rate (L/min)1 x 18 Pilot oil circuit (MPa)3.9 Working hydraulic circuit (Mpa) 32.4/34.3 Walking hydraulic circuit (Mpa)34.3 Rotary hydraulic circuit (Mpa)27.9 The main overflow set pressure (Mpa) is 32.4/36.3 Boom cylinders - Number × cylinder diameter × stroke (mm)2*125 x 1 235 Bucket rod cylinder - number × cylinder diameter × stroke (mm)1*135 x 1,540 Bucket cylinder - Number × cylinder diameter × stroke (mm)1*120 x 1065 Oil capacity Fuel tank (L)375 Hydraulic oil tank (L)160 Hydraulic system (L)300 Engine oil change volume (L)17 Coolant (L)15 Main body size The total length of transportation (mm) is 9745 The total transportation width (mm) is 2800 Total transportation height (mm):3,080 The total height of the cab (mm) is 2930 The width of the vehicle (mm) is 2700 Track grounding length (mm)3370 The total length of the tracks (mm) is 4160 Track plate width (mm):600 Track gauge (mm):2200 Minimum ground clearance (mm):460 The ground clearance of the counterweight (mm) is 1025 Number of supporting wheels (single side) (units)7 Number of idler wheels (single side) (units)2 Number of track plates (single side) (pieces)46 Scope of work Maximum excavation radius (mm):9930 The maximum excavation radius (mm) of the shutdown face is 9380 Maximum excavation depth (mm):6730 Maximum excavation height (mm):9220 Maximum unloading height (mm)6430 Maximum vertical excavation depth (mm):5620
