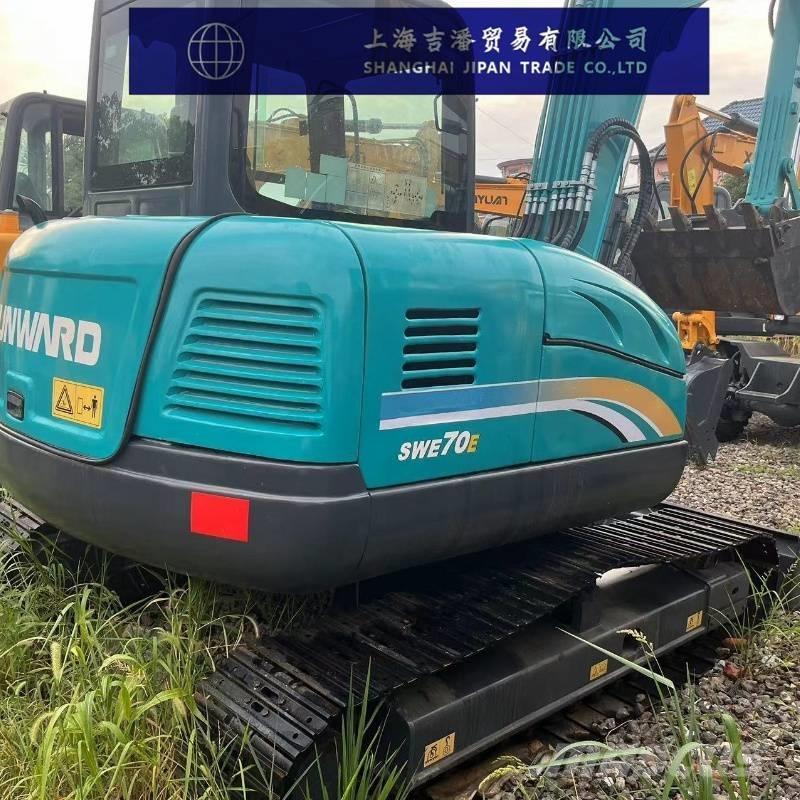

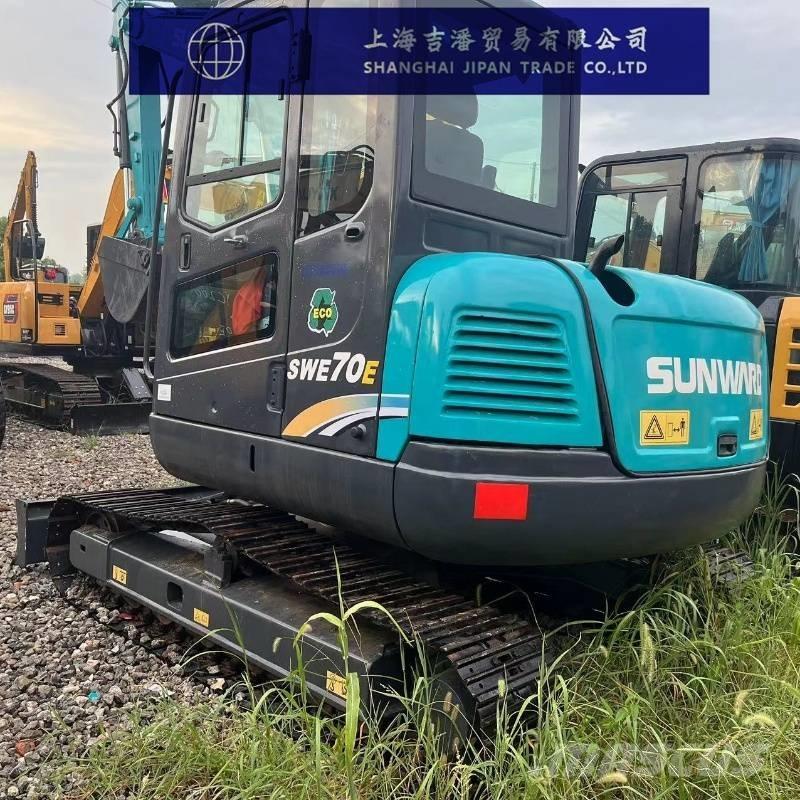

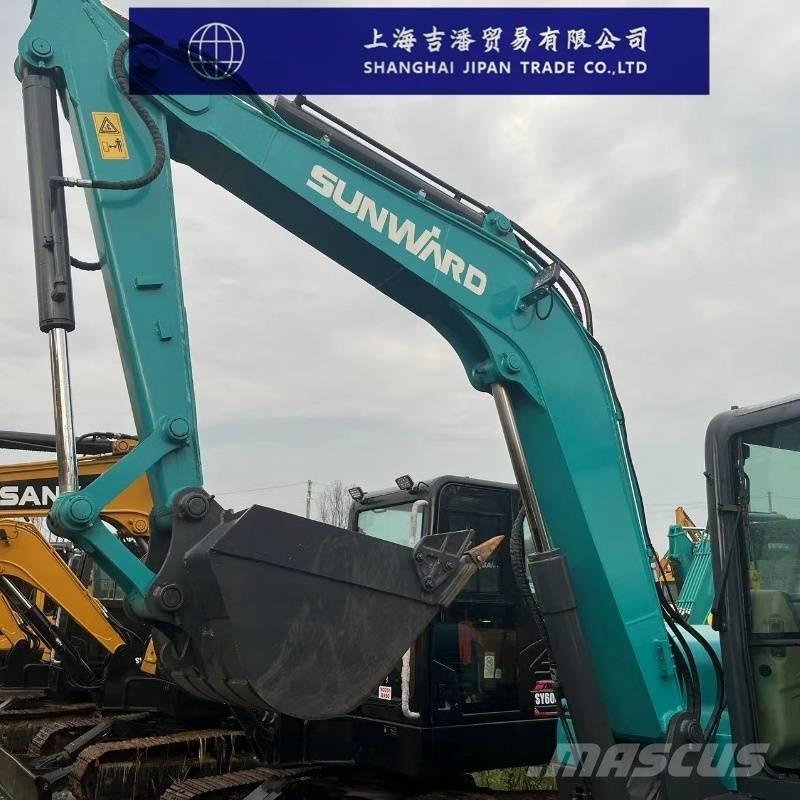

山河智能 SWE 70

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Sunward Intelligent SWE70E Excavator Parameter Configuration specification Power: Traditional power Manufacturer domestic Bucket backhoe Tonnage (tons) 7 The working weight of the whole machine (kg) is 6560 Bucket capacity (m³) 0.26 Boom length (mm) 3150 Stick length (mm) 1610 performance Rotational speed (rpm) 9 Travel speed (km/h) 4.0/2.3 Grounding specific pressure (Kpa) 33.9 Bucket digging force (kN) 50 Bucket digging force (kN) 31 dynamical system Engine model Yanmar 4TNV98-ZCSSUC Rated power (kw/rpm) 46.3/2200 Displacement (L) 3. 319 Number of cylinders (units) 4 Cooling method: Water cooling Oil capacity Fuel tank (L) 118 Hydraulic Tank (L) 96 Body size Total length of transport (mm) 5910 Total Transport Width (mm) 2080 Total height of transport (mm) 2625 Cab total height (mm) 2625 Mount width (mm) 2080 Track grounding length (mm) 2240 Total track length (mm) 2760 Track shoe width (mm) 400 Total Track Width (mm) 2080 Track gauge (mm) 1680 Counterweight ground clearance (mm) 700 Minimum ground clearance (mm) 340 The minimum turning radius of the front working device (mm) is 2305 Rear end slewing radius (mm) 1580 Scope of work Maximum digging radius (mm) 6225 The maximum excavation radius of the shutdown surface (mm) is 6085 Maximum digging depth (mm) 4015 Maximum digging height (mm) 6020 Maximum unloading height (mm) 4200 Maximum vertical digging depth (mm) 2840 Width × height of bulldozer plate (mm) 2080×415 Bulldozer lifting or pushing depth (mm) 475/290
