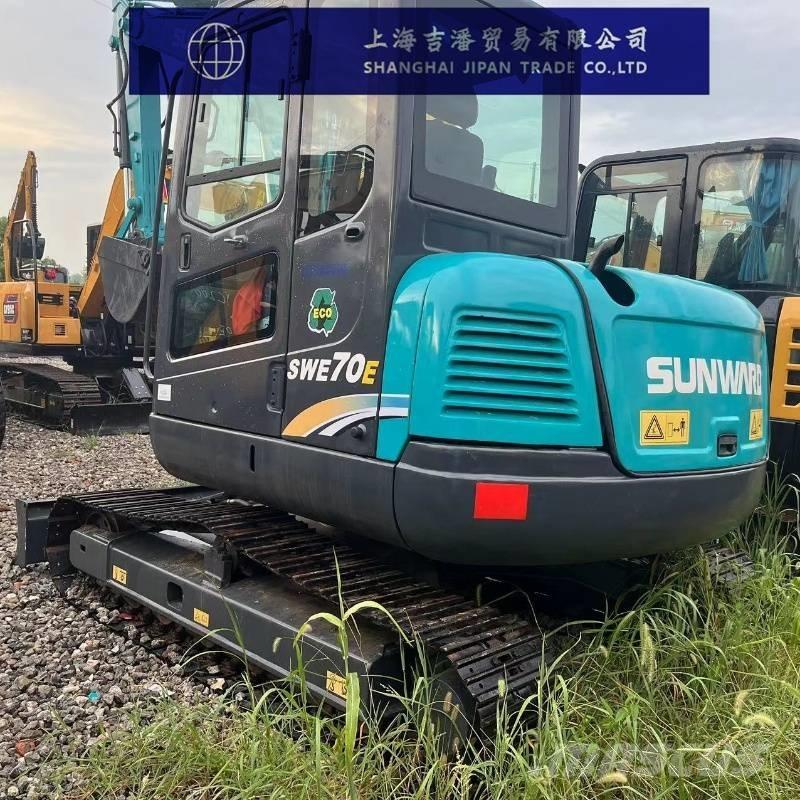

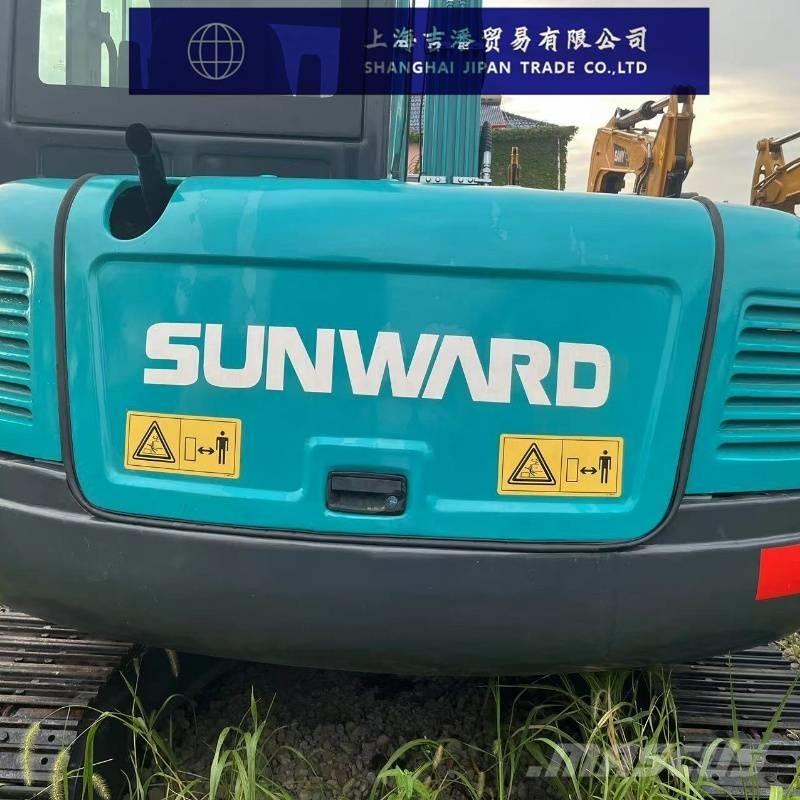

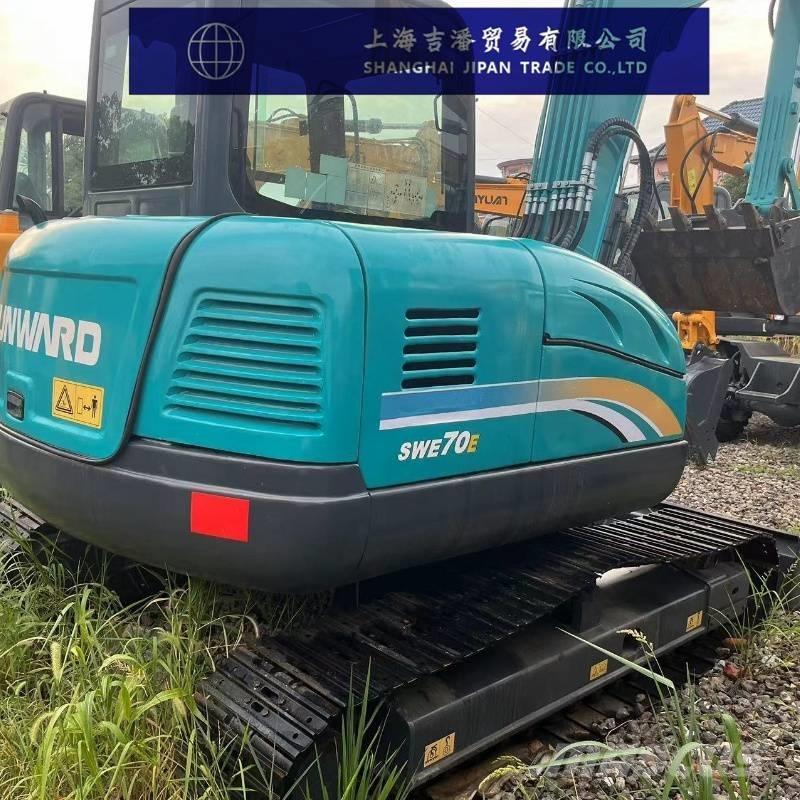

山河智能 SWE 70 E

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

山河智能SWE70E挖掘机 参数配置 规格 动力传统动力 厂商国产 铲斗反铲 吨位(吨)7 整机工作重量(kg)6560 铲斗容量(m³)0.26 动臂长度(mm)3150 斗杆长度(mm)1610 性能 回转速度(rpm)9 行走速度(km/h)4.0/2.3 接地比压(Kpa)33.9 铲斗挖掘力(kN)50 斗杆挖掘力(kN)31 动力系统 发动机型号洋马4TNV98-ZCSSUC 额定功率(kw/rpm)46.3/2200 排量(L)3.319 气缸数(个)4 冷却方式水冷 油类容量 燃油箱(L)118 液压油箱(L)96 主体尺寸 运输总长度(mm)5910 运输总宽度(mm)2080 运输总高度(mm)2625 驾驶室全高(mm)2625 上车宽度(mm)2080 履带接地长度(mm)2240 履带总长度(mm)2760 履带板宽度(mm)400 履带总宽度(mm)2080 履带轨距(mm)1680 配重离地间隙(mm)700 最小离地间隙(mm )340 前段工作装置最小回转半径(mm)2305 后端回转半径(mm )1580 作业范围 最大挖掘半径(mm)6225 停机面最大挖掘半径(mm)6085 最大挖掘深度(mm)4015 最大挖掘高度(mm)6020 最大卸载高度(mm)4200 最大垂直挖掘深度(mm)2840 推土板宽度×高度(mm)2080×415 推土铲举升或推深(mm)475/290
