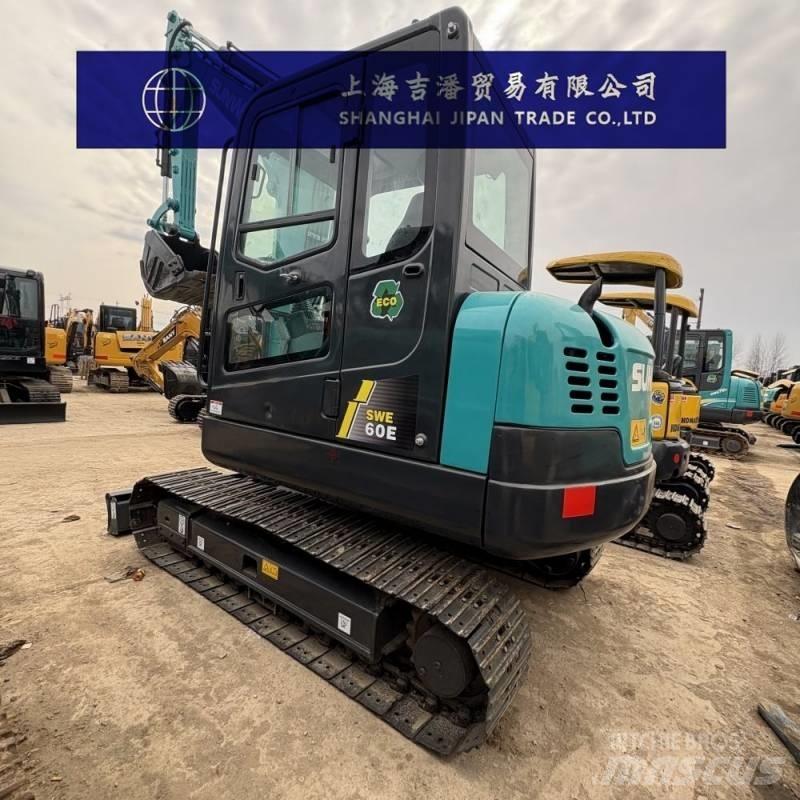

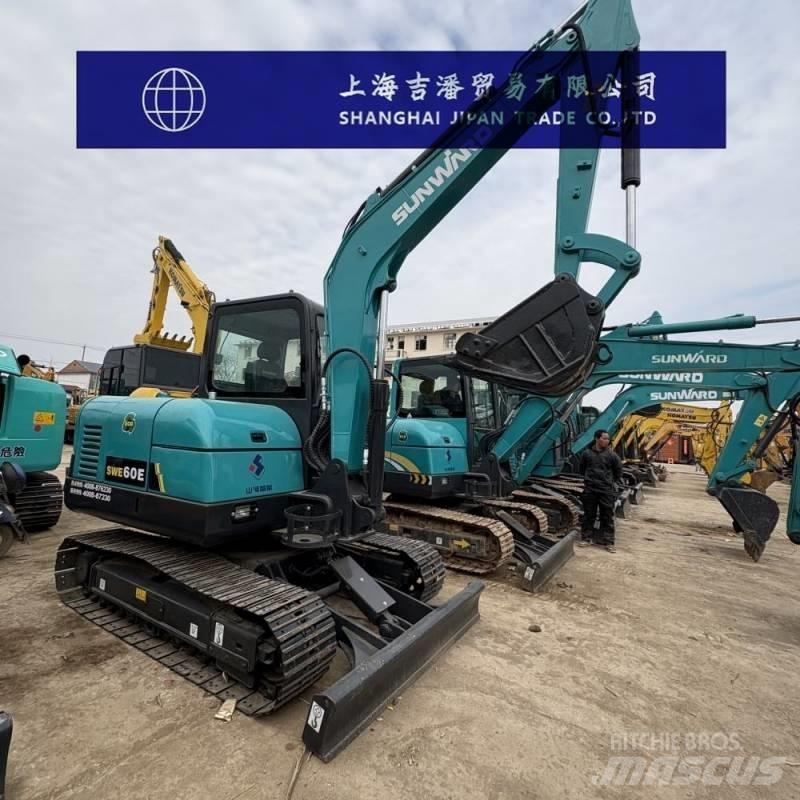

山河智能 SWE 60 E

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Overall machine parameters Operating weight: 6 tons Bucket capacity: 0.22 cubic meters Overall dimensions (length × width × height) : 5875×1900×2615mm Track: 1965mm Track width: 400mm Chassis width: 1880mm Platform ground clearance: 700mm Ground clearance of the chassis: 320mm Engine parameters Model: 4TNV94L-BVS UC Type: Four-cylinder, four-stroke, water-cooled Power: 36.2kW/2100rpm Displacement: 3.054L Parameters of the hydraulic system Main pump type: swash plate variable piston pump The maximum flow rate of the main pump is 158L/min System pressure: 24.5MPa Pilot pressure: 3.5MPa Working scope and mining capacity parameters Maximum excavation height: 5765mm Maximum unloading height: 4160mm Maximum excavation depth: 3730mm Maximum vertical excavation depth: 3800mm Maximum excavation radius: 6175mm Maximum ground excavation reach: 6030mm The maximum lifting height of the bulldozer blade is 445mm The maximum digging depth of the bulldozer shovel is 340mm Bucket digging force: 47kN Bucket shaft digging force: 31kN Driving parameters Driving speed: 4.07/2.43km/h Climbing ability: 35° Fuel tank volume parameters Fuel tank capacity: 113 liters Hydraulic oil tank capacity: 96L
