山河智能 SWE 35 UF

Company name:LONG WAY TRADING CO.,LTD Address:1898th Zaoxiang road ,Anyang City ,Henan province,China Contact: Nancy Tel : +8617739124690 WhatsApp:0086 13636464634 Wechat:17739124690 Email:

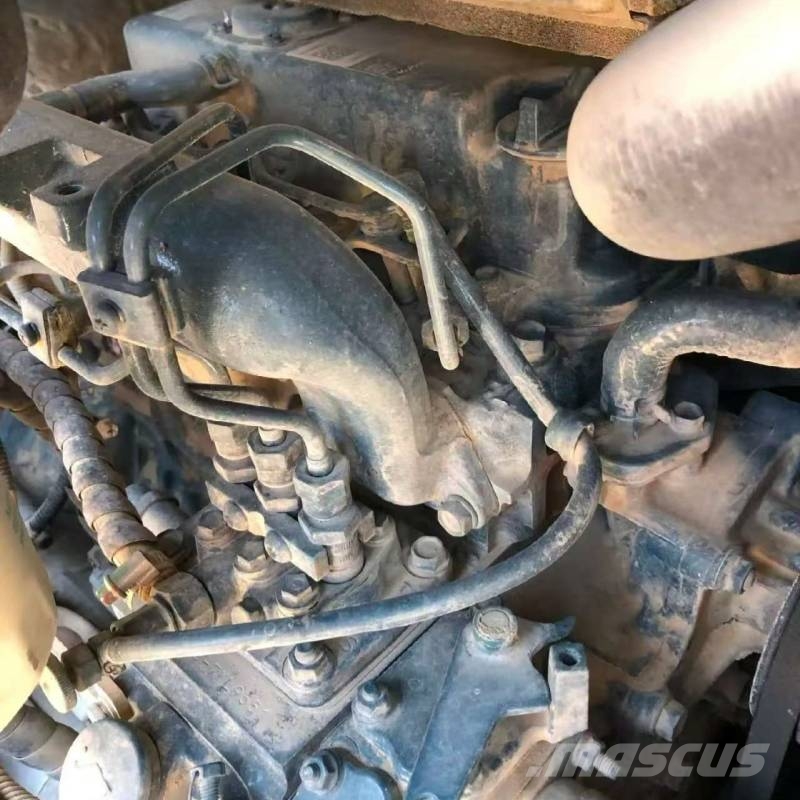

## Engine - Model: **Kubota D1803‑DI 3‑cylinder diesel** - Net rated power: **23.4 kW (31.4 HP) @2300 rpm** - Displacement: **1.647 L** - Emission: China Non‑Road Stage II (Tier 2), no after‑treatment ## ⚙ Operating Weight & Counterweight - Cab version operating weight: **3850 kg** (rubber tracks, standard bucket, dozer blade) - Counterweight: approx **620 kg** - Tail swing radius: **850 mm (zero‑tail swing)**Made-in-Ch... ## 📐 Transport Dimensions (standard boom+stick, 300 mm rubber track shoes) - Overall transport length: **4890 mm** - Overall transport width: **1700 mm (over dozer blade)** - Overall transport height: **2560 mm (top of cab)** - Track shoe width: **300 mm (rubber / steel optional)** - Track gauge: **1320 mm** - Minimum ground clearance: **255 mm**Sunward Eu... ## 🛠 Hydraulic System - Main pump: 1 variable‑displacement piston pump - Max main pump flow: **88 L/min** - Main system pressure: **245 bar** - Primary auxiliary hydraulic flow: **50 L/min (hammer piping optional)** - Hydraulic tank capacity: **41 L** - Fuel tank capacity: **40 L**Sunward Eu... ## 🪣 Working Equipment (standard) - Boom length: **2550 mm** - Standard stick length: **1350 mm** - Standard bucket capacity: **0.11 m³**; bucket width: **700 mm** - Bucket digging force: **31.4 kN** - Stick digging force: **19.8 kN** - Dozer blade: straight blade with float function, width 1700 mm ## 🚜 Travel Performance - High‑speed travel: **4.0 km/h**; Low‑speed travel: **2.3 km/h** - Max drawbar pull: **32.5 kN** - Max gradeability: **30°** - Swing speed: **9.5 rpm** ## 📌 Working Range - Max digging depth: **3120 mm** - Max digging reach: **5575 mm** - Max dump height: **3400 mm** - Max digging height: **4925 mm**Sunward Eu...
