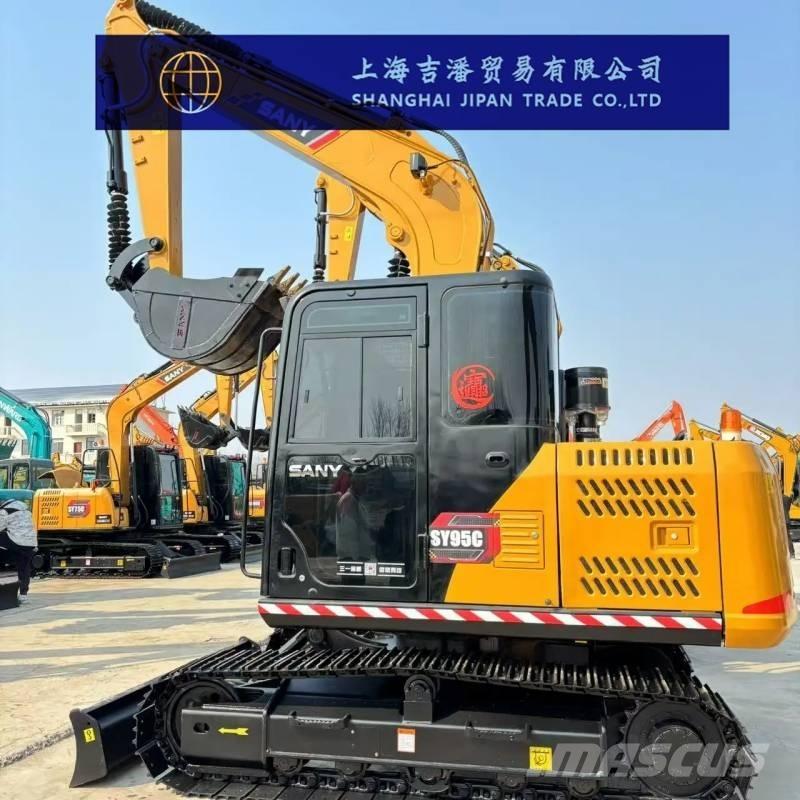

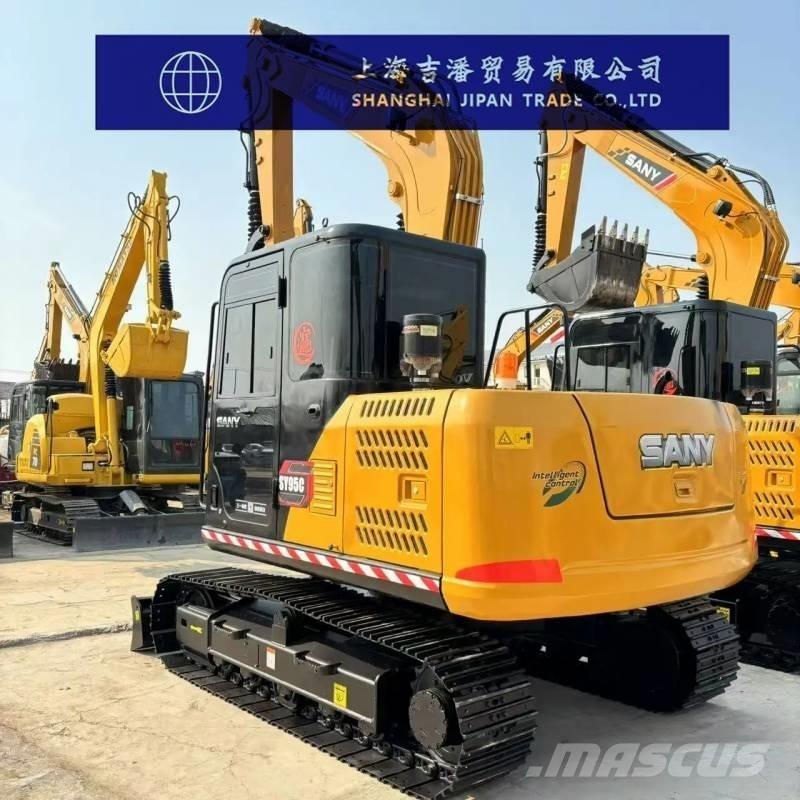

三一重工 SY 95 C

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck mounted cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Specification Tonnage (tons)9 The working weight of the entire machine (kg) is 9180 Bucket capacity (m³):0.39 Performance Rotational speed (rpm):11.2 Walking speed (km/h)5.0/2.9 Climbing ability (%)70%/35° Ground pressure (Kpa):38.6 Bucket digging force (kN)63.6 The digging force of the bucket arm (kN) is 46.8 Power system Engine model: Kubota V3800DI-T-E3B Rated power (kw/rpm):60.7/2200 Maximum torque (N.m):305.4/1600 Displacement (L)3.769 Number of cylinders:4 The cooling method is water cooling Oil capacity Fuel tank (L)160 Hydraulic oil tank (L)120 Engine oil change volume (L)12 Main body size The total transportation length (mm) is 6560 The total transportation width (mm) is 2260 The total transportation height (mm) is 2650 The width of the vehicle (mm) is 2160 The total length of the track (mm) is 2980 Track plate width (mm):450 Track gauge (mm):1810 Minimum ground clearance (mm):360 The minimum turning radius (mm) of the front working device is 1990 Rear end turning radius (mm)1885 The maximum height (mm) at the minimum turning radius is 5700 Number of idler wheels (single side) (units):1 Number of track plates (single side) (pieces):41 Number of idler wheels (on one side):5 Scope of work Maximum excavation radius (mm):6660 Maximum excavation depth (mm):4330 Maximum excavation height (mm):7260 Maximum unloading height (mm):5210 Maximum vertical excavation depth (mm):3080 Width × height of the bulldozer board (mm):420 (height) The bulldozer shovel lifts or deepens (mm):330
