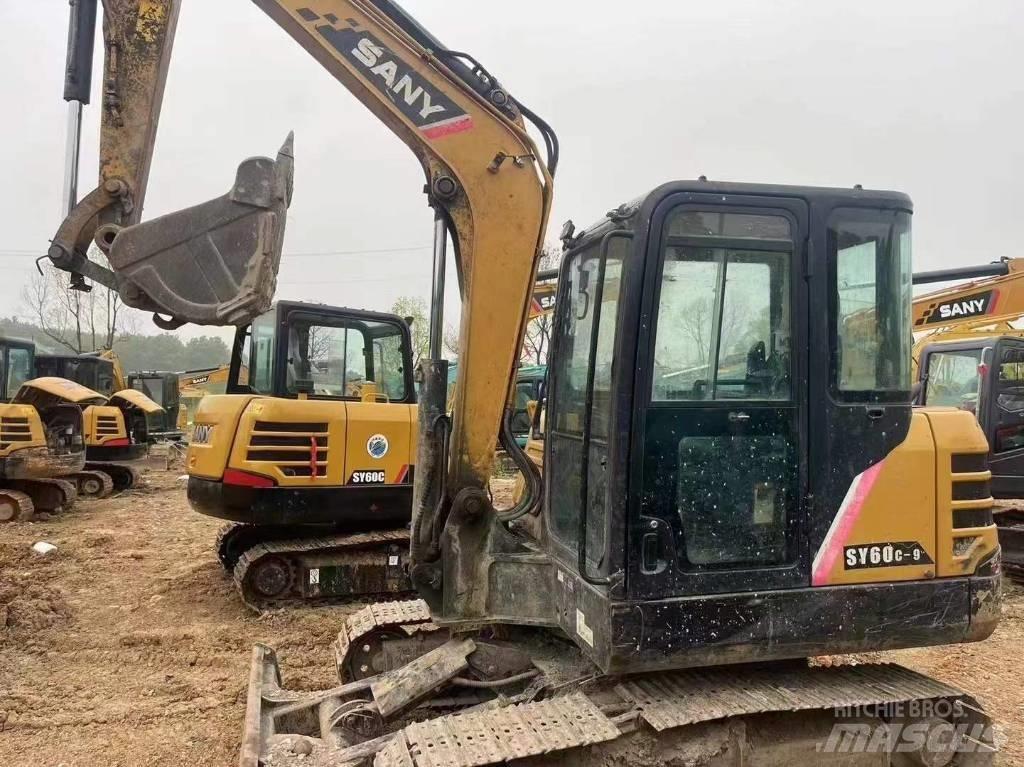

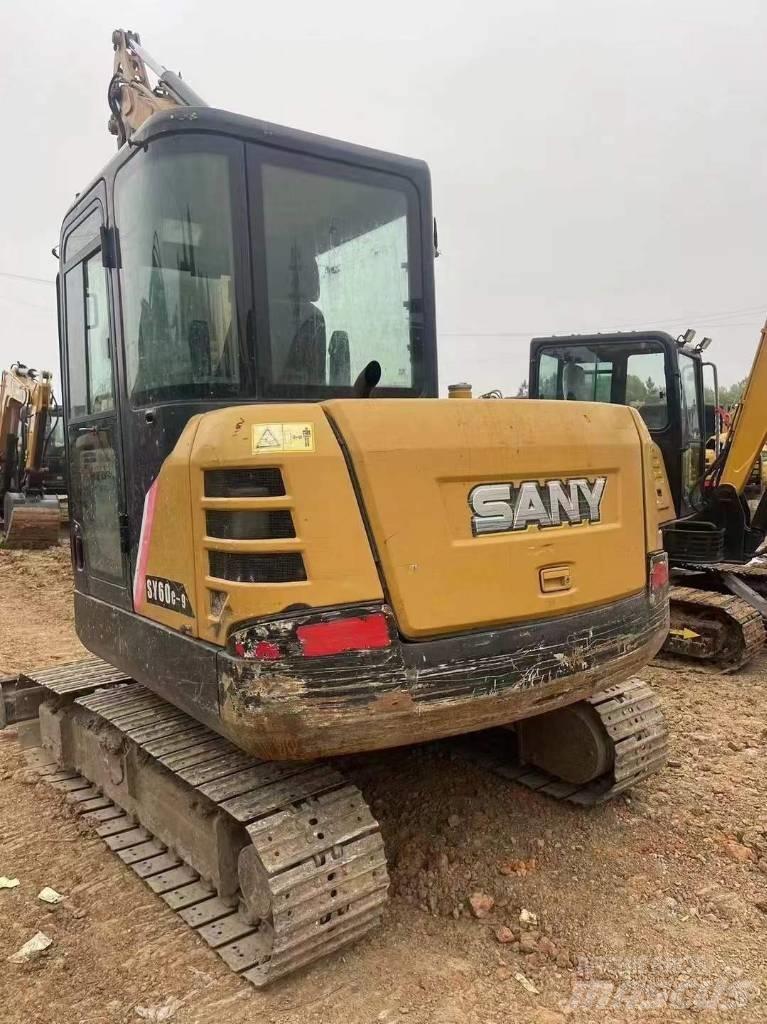

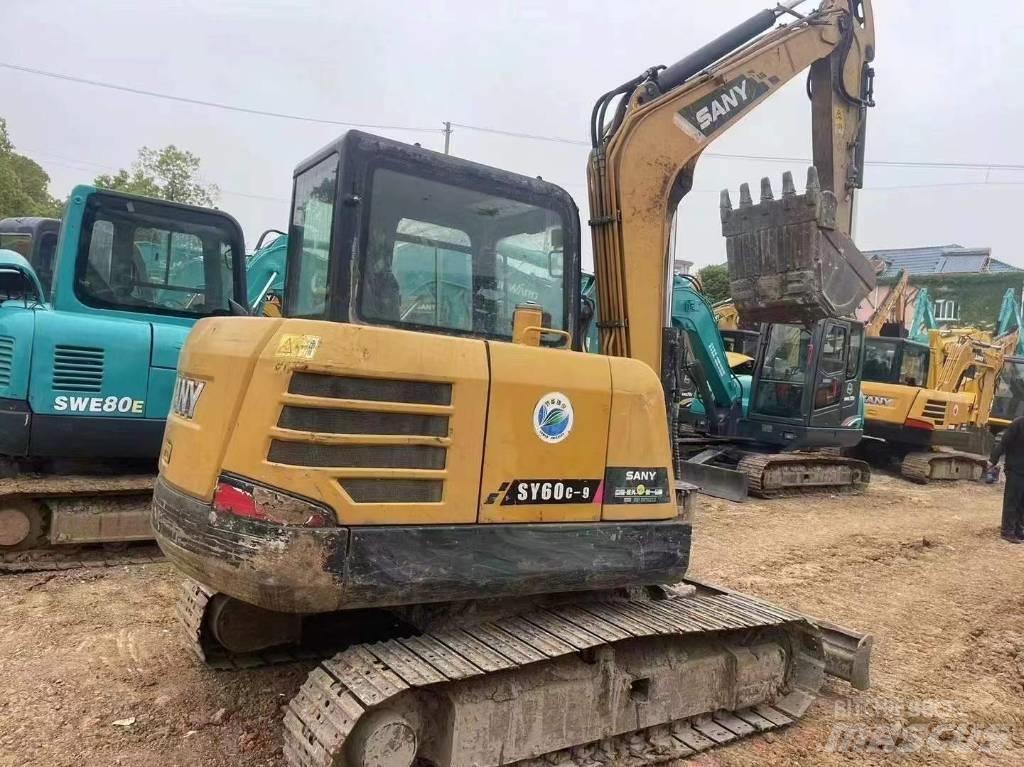

三一重工 SY 60 C-9

Hello, I'm Gavin, specializing in the sales of construction machinery. We have been working in this industry for decades and have four large machine storage yards in Shanghai. If you are interested in any machines, please feel free to contact me. WhatsApp/WeChat: 0086 18019214942

Overall machine parameters: Overall machine working weight: 6000kg Bucket capacity: 0.10 - 0.28m³ (commonly 0.23m³) Rotation speed: 9.6 rpm Travel speed: 4.22/2.25 km/h Climbing ability: 70% (35°) Ground pressure: 30.7 Kpa Bucket digging force: 45kN Tongue digging force: 33kN Power system: Engine model: Kubota V2607 Rated power: 36/2100 kW/rpm Maximum torque: 206.9/1100 - 1500 N·m Displacement: 2.615L Number of cylinders: 4 Cooling method: Water cooling Oil capacity: Fuel tank: 130L Hydraulic oil tank: 85L Engine oil replacement volume: 9.6L Overall dimensions: Total transport length: 5925mm Total transport width: 2005mm Total transport height: 2630mm Total track length: 2700mm Track plate width: 400mm Track gauge: 1600mm Minimum ground clearance: 370mm Rear end rotation radius: 1640mm Operating range: Maximum digging radius: 6090mm Maximum digging depth: 3770mm Maximum digging height: 5735mm Maximum unloading height: 3975mm Maximum vertical digging depth: 3025mm Tilting or pushing depth of the plow: 300/405mm
