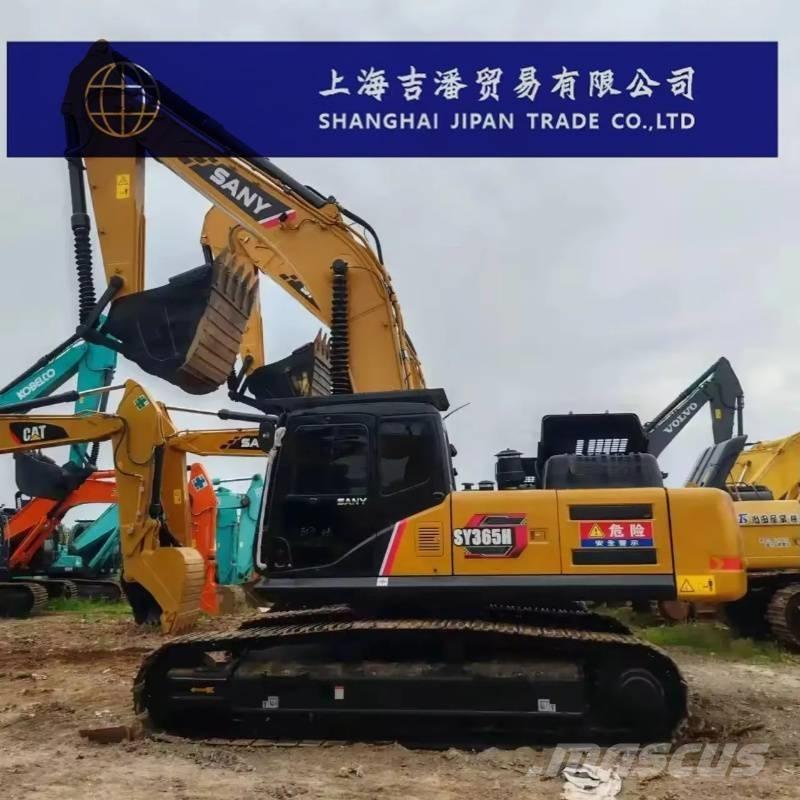

三一重工 sy 365

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Overall Machine Parameters Overall weight: 36,800kg Bucket capacity: 1.9m³ Total transportation length: Approximately 11,360mm (referencing SY365H-9) Total transportation width: Approximately 3,190mm (referencing SY365H-9) Total transportation height: Approximately 3,550mm (referencing SY365H-9) Performance Parameters Rated power: 210kW/1900rpm Travel speed: 5.5/3.5km/h Gradeability: 35° Swing speed: 9.2rpm Ground pressure: 67kPa Bucket digging force: 235kN Arm digging force: 210kN Travel traction force: 320kN Engine Parameters Engine model: Isuzu 6HK1 Type: Direct injection, 6-cylinder 4-stroke, turbocharged with intercooling, water-cooled Displacement: 7.79L Maximum torque: 1080N·m/1500rpm Fluid and Coolant Capacities Fuel tank: 620L Hydraulic oil tank: 380L Engine oil: 41L Radiator coolant: 28L Final drive: 2×8.5L
