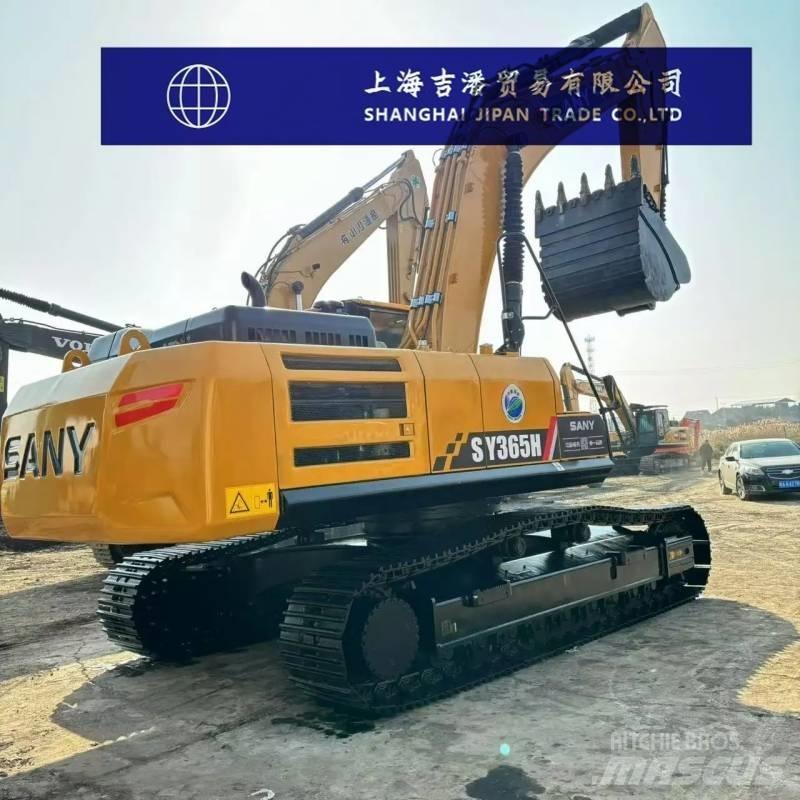

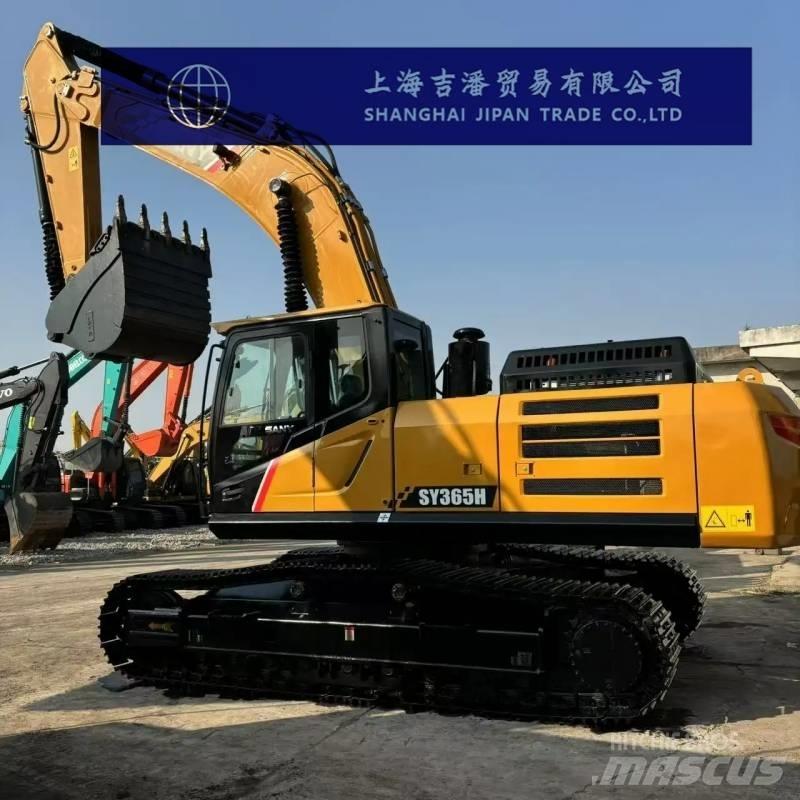

三一重工 SY 365 H

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Hefei City, Anhui Province Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Power Traditional Power Domestic manufacturer Bucket backhoe Tonnage (tons)36 The working weight of the entire machine (kg) is 36,000 Bucket capacity (m³) : 1.6-2.32 Performance Rotational speed (rpm) : 9.5 Walking speed (km/h)5.5/3.5 Climbing ability (%)70% (35°) Ground pressure (Kpa) : 65 Bucket digging force (kN)235 The digging force of the bucket arm (kN) is 180 Power system Engine model: GH-6HK1XKSC Rated power (kw/rpm)212/2000 Maximum torque (N.m) : 1080/1500 Displacement (L)7.79 The cooling method is water cooling Oil capacity Fuel tank (L)690 Hydraulic oil tank (L)380 Engine oil change volume (L)36 Main body size The total transportation length (mm) is 11530 The total transportation width (mm) is 3190 The total transportation height (mm) is 3545 The total height of the cab (mm) is 3320 The width of the vehicle (mm) is 3150 Track grounding length (mm) : 4140 The total length of the track (mm) is 5065 Track plate width (mm) : 600 Track gauge (mm) : 2590 Minimum ground clearance (mm)550 The minimum turning radius (mm) of the front working device is 4495 Rear end turning radius (mm)3560 The maximum height (mm) at the minimum turning radius is 8600 Number of idler wheels (single side) (units)2 Number of track plates (single side) (pieces)49 Number of idler wheels (single side) (units)9 Scope of work Maximum excavation radius (mm) : 10780 Maximum excavation depth (mm) : 7050 Maximum excavation height (mm) : 9890 Maximum unloading height (mm) : 6920 Maximum vertical excavation depth (mm) : 3970
