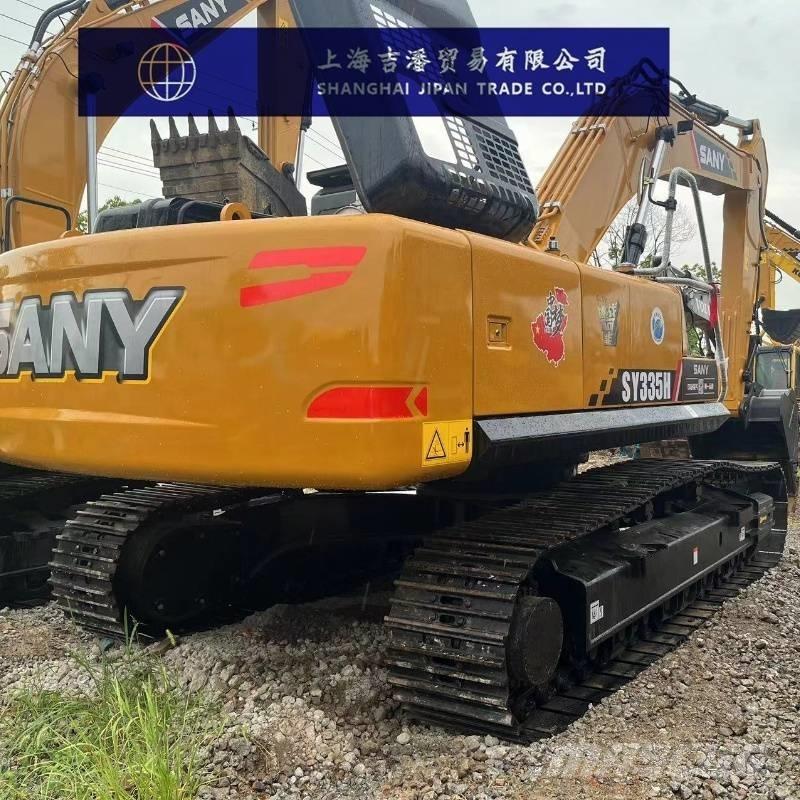

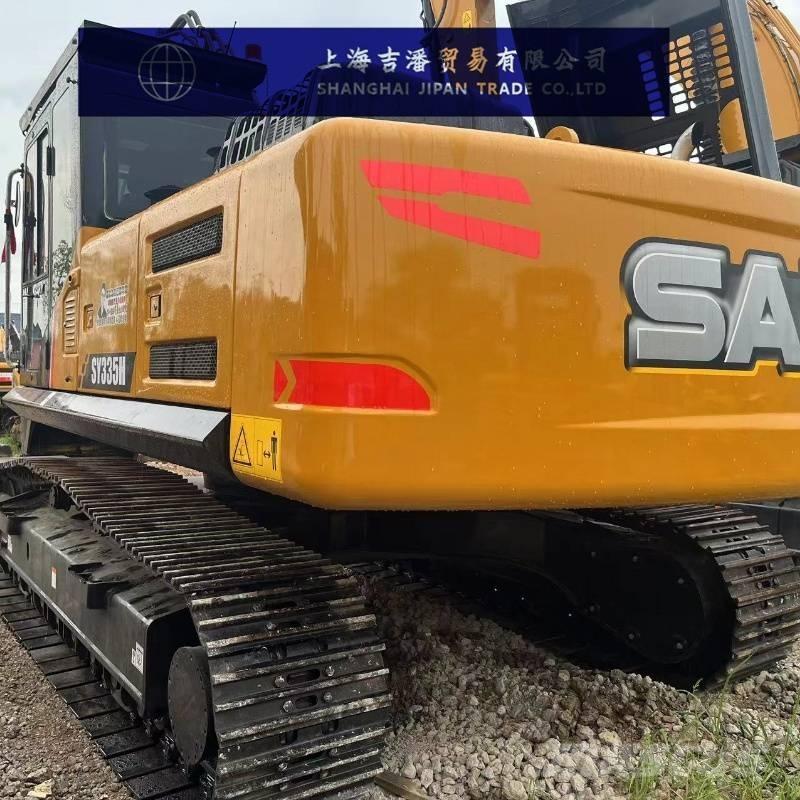

三一重工 SY 335

Parameter Details Operating Weight 32,500 kg Rated Power 210 kW / 1900 rpm Engine Model Isuzu 6HK1 Engine Displacement 7.79 L Bucket Capacity 2.0 m³ Travel Speed (High/Low) 6.0 / 3.5 km/h Swing Speed 9.5 rpm Climbing Ability 70% (35°) Ground Pressure 60.3 kPa Bucket Digging Force 192.7 kN Arm Digging Force 172.2 kN Overall Length (Transport) 10,700 mm Overall Width 3,190 mm Overall Height (Transport) 3,470 mm Upper Structure Width 3,175 mm Overall Height (Cab Top) 3,280 mm Standard Track Shoe Width 600 mm Track Gauge 2,590 mm Minimum Ground Clearance 550 mm Rear Swing Radius 3,315 mm Track Ground Contact Length 4,134 mm Total Track Length 5,040 mm Maximum Digging Height 10,248 mm Maximum Dumping Height 7,205 mm Maximum Digging Depth 6,571 mm Maximum Digging Radius 10,444 mm
