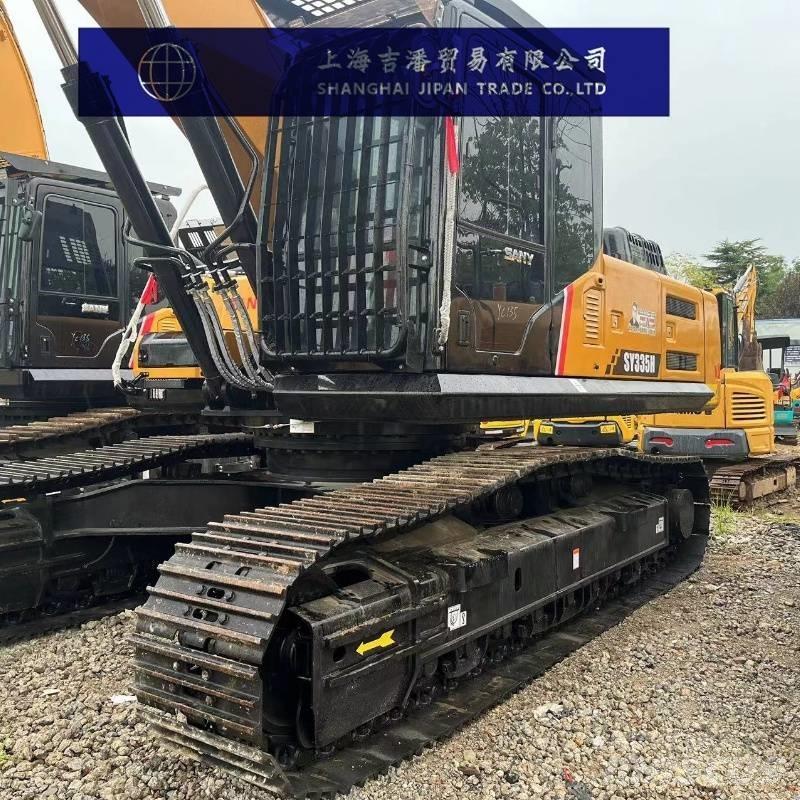

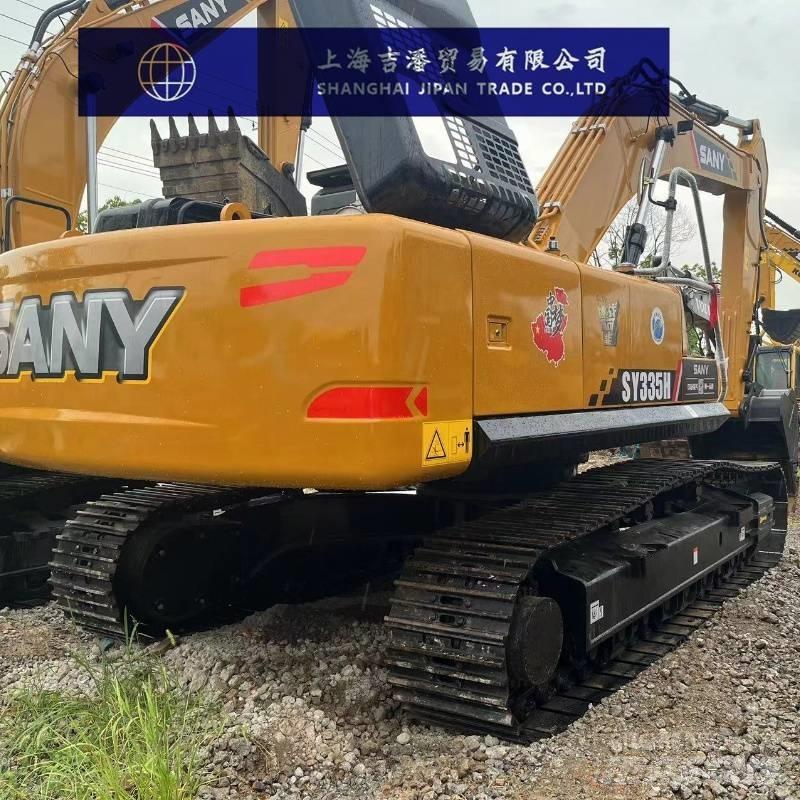

三一重工 SY 335 H

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

规格 动力传统动力 厂商国产 铲斗反铲 吨位(吨)33 整机工作重量(kg)32500 铲斗容量(m³)1.85 性能 回转速度(rpm)9.0 行走速度(km/h)5.4/3.2 爬坡能力(%)70%（35°） 接地比压(Kpa)60.3 铲斗挖掘力(kN)204 斗杆挖掘力(kN)153 动力系统 发动机型号五十铃GH-6HK1 额定功率(kw/rpm)212/2000 最大扭矩(N.m)1080/1500 排量(L)7.79 气缸数(个)6 冷却方式水冷 油类容量 燃油箱(L)540 液压油箱(L)380 发动机油更换量(L)2×4.0 冷却液(L )35 主体尺寸 运输总长度(mm)10667 运输总宽度(mm)3190 运输总高度(mm)3470 驾驶室全高(mm)3280 上车宽度(mm)3175 履带接地长度(mm)4134 履带总长度(mm)5040 履带板宽度(mm)600 履带轨距(mm)2590 最小离地间隙(mm )550 前段工作装置最小回转半径(mm)4000 最小回转半径时的最大高度(mm)8405 后端回转半径(mm )3315 托链轮数（单侧）(个)2 履带板数量（单侧）(个)49 支重轮数（单侧）(个)9 作业范围 最大挖掘半径(mm)10870 最大挖掘深度(mm)6815 最大挖掘高度(mm)10497 最大卸载高度(mm)7359 最大垂直挖掘深度(mm)6170
