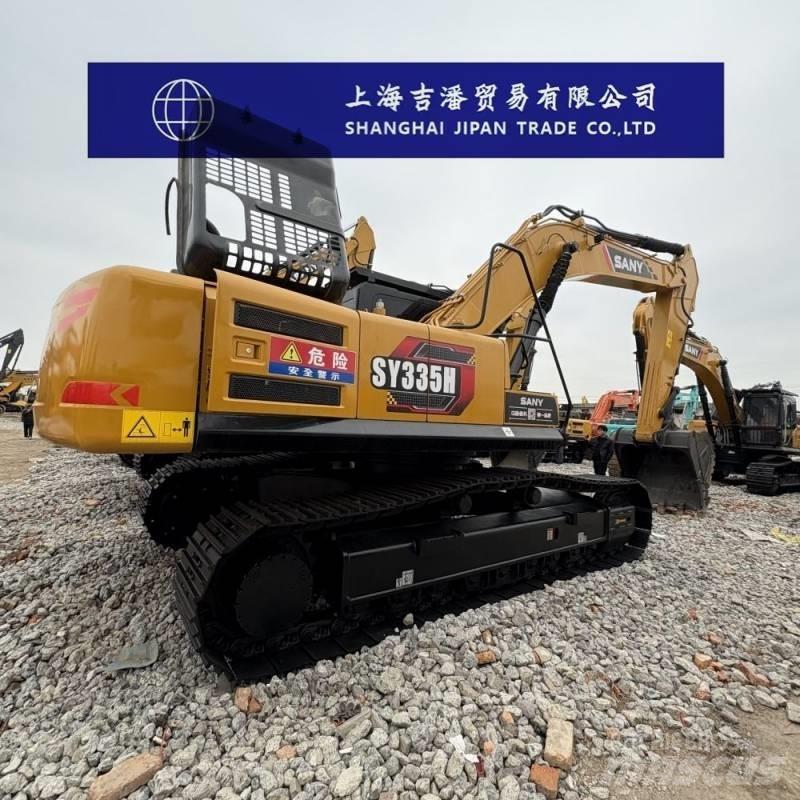

三一重工 SY 335 H

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Power Traditional Power Domestic manufacturer Bucket backhoe Tonnage (tons)33 The working weight of the entire machine (kg) is 32,500 Bucket capacity (m³) : 1.85 Performance Rotational speed (rpm) : 9.0 Walking speed (km/h) : 5.4/3.2 Climbing ability (%)70% (35°) Ground pressure (Kpa) : 60.3 Bucket digging force (kN)204 Bucket shaft digging force (kN)153 Power system Engine model: Isuzu GH-6HK1 Rated power (kw/rpm)212/2000 Maximum torque (N.m) : 1080/1500 Displacement (L)7.79 Number of cylinders (6 The cooling method is water cooling Oil capacity Fuel tank (L)540 Hydraulic oil tank (L)380 Engine oil change volume (L) : 2×4.0 Coolant (L)35 Main body size The total transportation length (mm) is 10,667 The total transportation width (mm) is 3190 The total transportation height (mm) is 3470 The total height of the cab (mm) is 3280 The width of the vehicle (mm) is 3175 Track grounding length (mm) : 4134 The total length of the track (mm) is 5040 Track plate width (mm) : 600 Track gauge (mm) : 2590 Minimum ground clearance (mm)550 The minimum turning radius (mm) of the front working device is 4000 The maximum height (mm) at the minimum radius of rotation is 8405 Rear end turning radius (mm)3315 Number of idler wheels (single side) (units)2 Number of track plates (single side) (pieces)49 Number of idler wheels (single side) (units)9 Scope of work Maximum excavation radius (mm) : 10,870 Maximum excavation depth (mm) : 6815 Maximum excavation height (mm) : 10497 Maximum unloading height (mm) : 7359 Maximum vertical excavation depth (mm) : 6170
