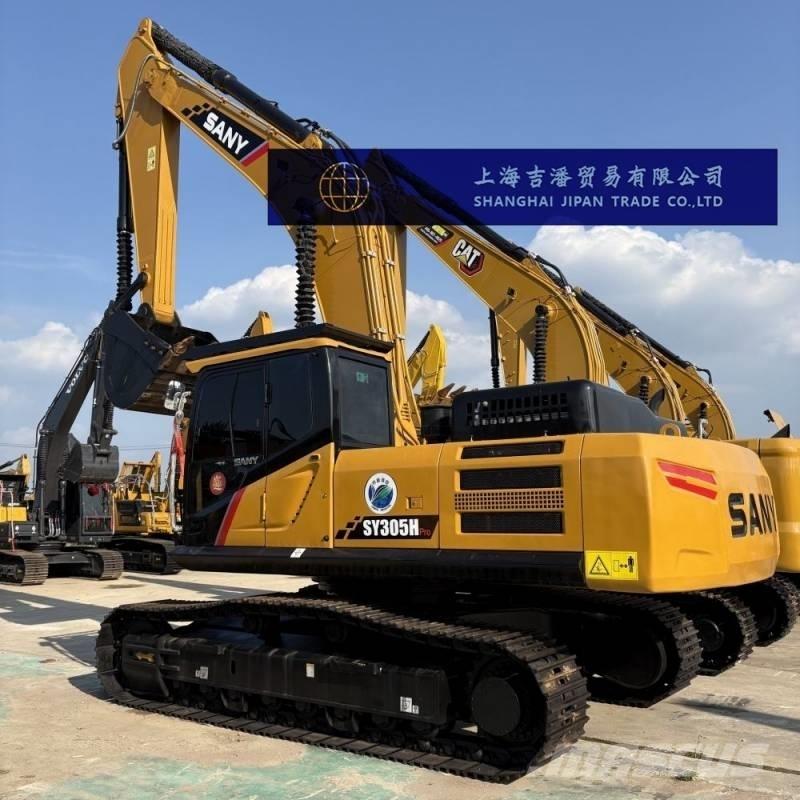

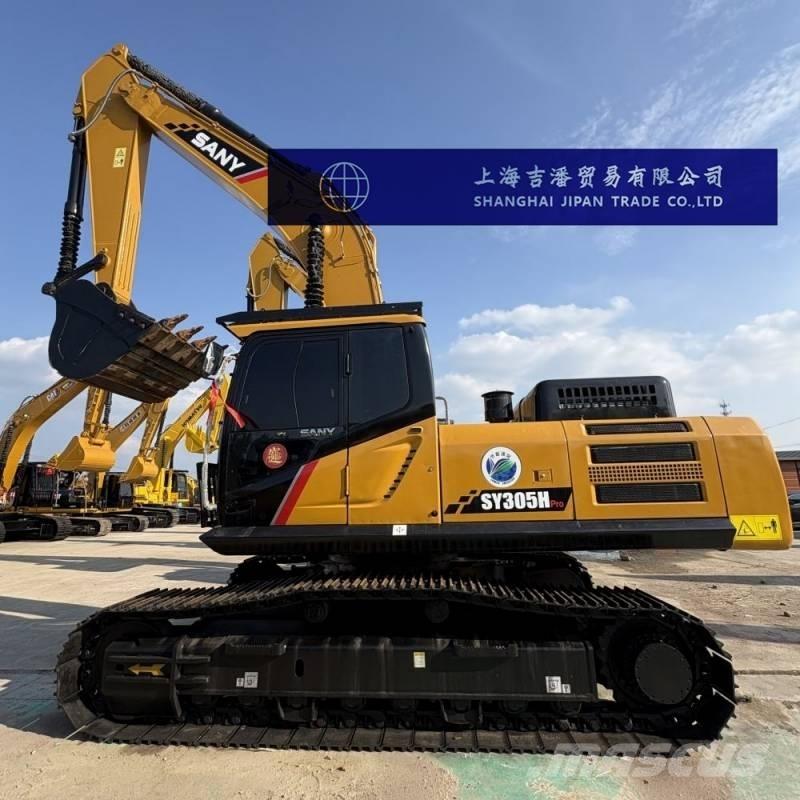

三一重工 SY 305 H

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Parameter configuration of Sany SY305H excavator Specification Tonnage (tons)30 The working weight of the entire machine (kg) is 31,500 Bucket capacity (m³):1.65-2.0 Performance Rotational speed (rpm):9.0 Walking speed (km/h):5.4/3.2 Climbing ability:70%/35 degrees Ground pressure (Kpa):62.3 Bucket digging force (kN)204 Bucket shaft digging force (kN)153 Power system Engine model: Isuzu GH-6HK1 Rated power (kw/rpm)212/2000 Maximum torque (N.m):1080/1500 Displacement (L)7.79 Number of cylinders:6 The cooling method is water cooling Oil capacity Fuel tank (L)540 Hydraulic oil tank (L)380 Engine oil change volume (L)2*4.0 Coolant (L)35 Main body size The total transportation length (mm) is 10,667 The total transportation width (mm) is 3190 The total transportation height (mm) is 3470 The total height of the cab (mm) is 3280 The width of the vehicle (mm) is 3175 Track grounding length (mm):3916 The total length of the tracks (mm) is 4840 Track plate width (mm):600 Track gauge (mm):2590 Minimum ground clearance (mm)550 The minimum turning radius (mm) of the front working device is 4000 The maximum height (mm) at the minimum radius of rotation is 8405 Rear end turning radius (mm)3315 Number of idler wheels (single side) (units)8 Number of idler wheels (single side) (units)2 Number of track plates (single side) (units)47 Scope of work Maximum excavation radius (mm):10,870 Maximum excavation depth (mm):6815 Maximum excavation height (mm):10497 Maximum unloading height (mm):7359 Maximum vertical excavation depth (mm):6170
