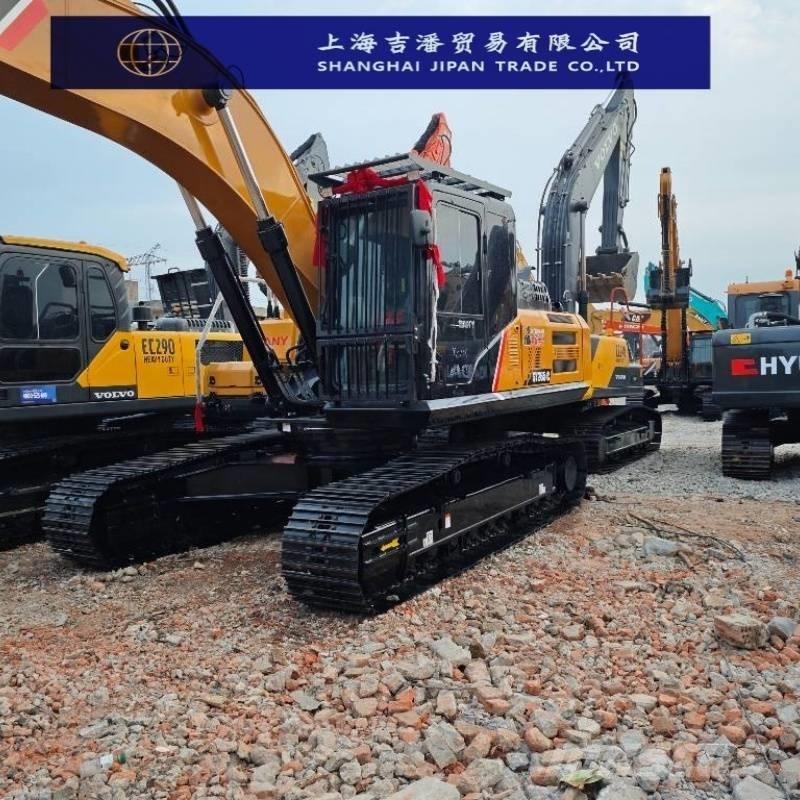

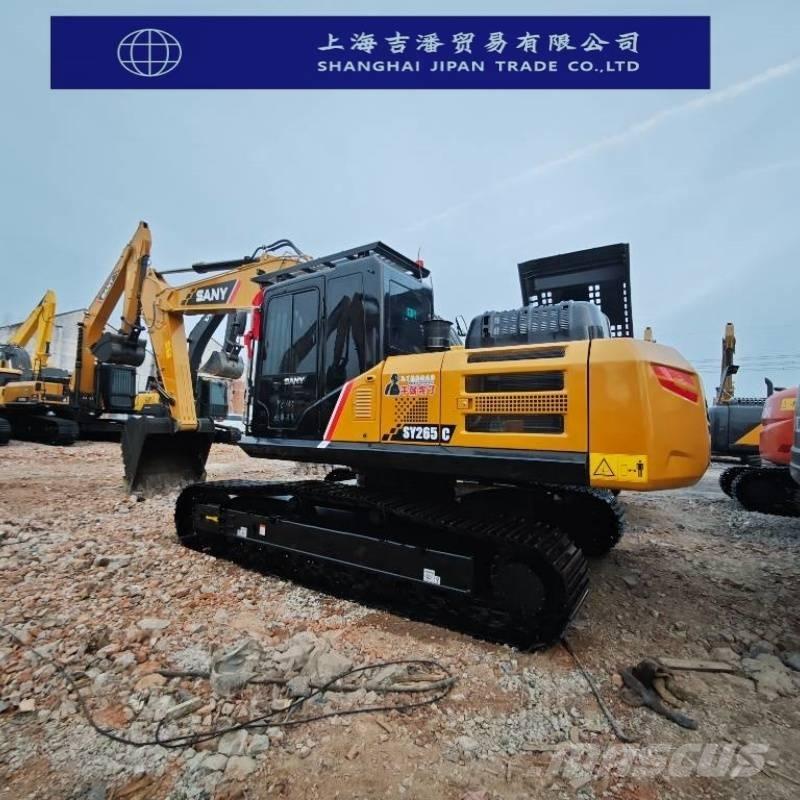

三一重工 SY 265 C

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Item Parameter Operating Weight 26500kg Bucket Capacity 1.6m³ Engine Model Cummins B7 Engine Displacement 6.7L Rated Power 150kW/2000rpm Travel Speed (Hi/Lo) 5.8/3.7km/h Swing Speed 10rpm Gradeability 70% (35°) Ground Pressure 52.5kpa Bucket Digging Force 175(187)kN Arm Digging Force 120(129)kN Maximum Digging Height 9810mm Maximum Dumping Height 6820mm Maximum Digging Depth 6705mm Maximum Vertical Digging Depth 5675mm Maximum Digging Radius 10225mm Minimum Swing Radius 3105mm Overall Length (During Transportation) 10290mm Overall Width (Transport/Operation) 3190mm Overall Height (During Transportation) 3255mm Upper Structure Width 3045mm Track Width 600mm Track Gauge 2590mm Minimum Ground Clearance 470mm Tail Swing Radius 3105mm Track Length on Ground 3830mm Track Length 4635mm Fuel Tank Capacity 440L Engine Oil Capacity 25L Hydraulic Oil Tank Capacity 295L Coolant Capacity 34L Travel Reducer Gear Oil Capacity 2×4.0L Urea Tank Capacity 50L
