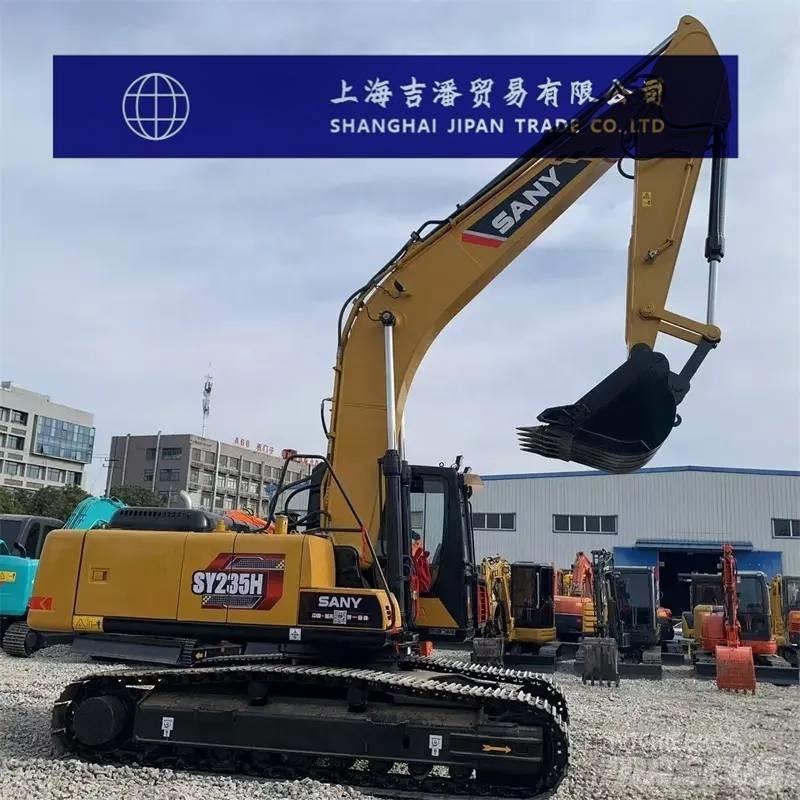

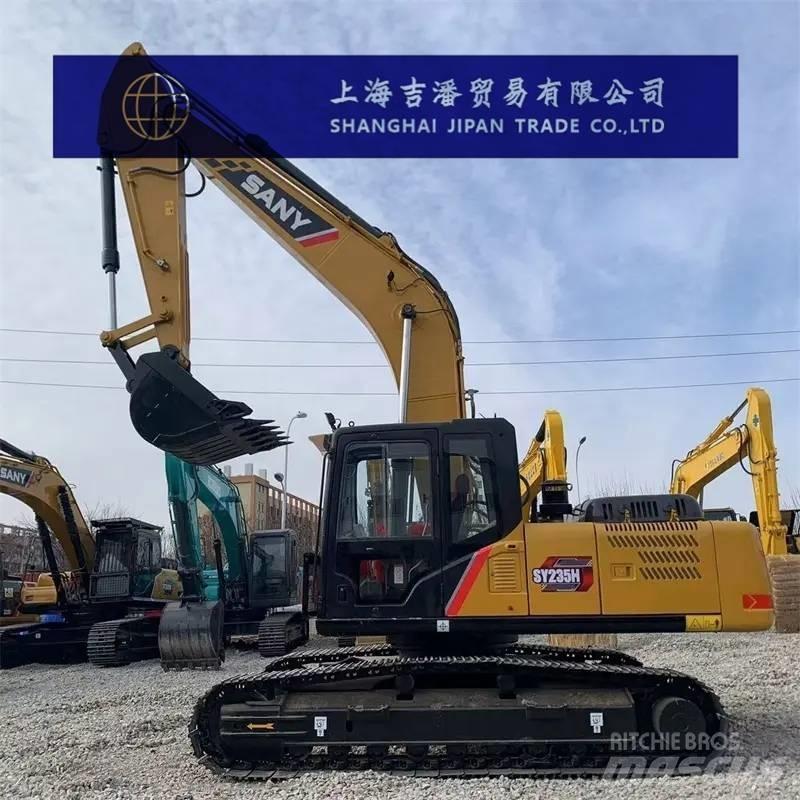

三一重工 SY 235

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Sany SY235H excavator Specification Power Traditional Power Domestic manufacturer Bucket backhoe Tonnage (tons)23 The working weight of the entire machine (kg) is 23,000 Bucket capacity (m³) : 1.35 Performance Rotational speed (rpm) : 11.5 Walking speed (km/h)5.6/3.5 Climbing ability (%) : 70 Ground specific pressure (Kpa)51 Bucket digging force (kN) : 140 Bucket shaft digging force (kN)107 Power system Engine model: Deutz TCD5.7 Rated power (kw/rpm)129/2100 128/2000 Emission standard: National IV Main body size The total length of transportation (mm) is 9635 The total transportation width (mm) is 2980 The total transportation height (mm) is 3100 The total height of the cab (mm) is 3255 The width of the vehicle (mm) is 2813 Track grounding length (mm) : 3640 The total length of the track (mm) is 4446 Track plate width (mm) : 600 Track gauge (mm) : 2380 Minimum ground clearance (mm) : 442 The minimum turning radius (mm) of the front working device is 3662 The rear end turning radius (mm) is 2900 The maximum height (mm) at the minimum turning radius is 7600 Scope of work Maximum excavation radius (mm) : 9735 Maximum excavation depth (mm) : 6450 Maximum excavation height (mm) : 9470 Maximum unloading height (mm) : 6735
