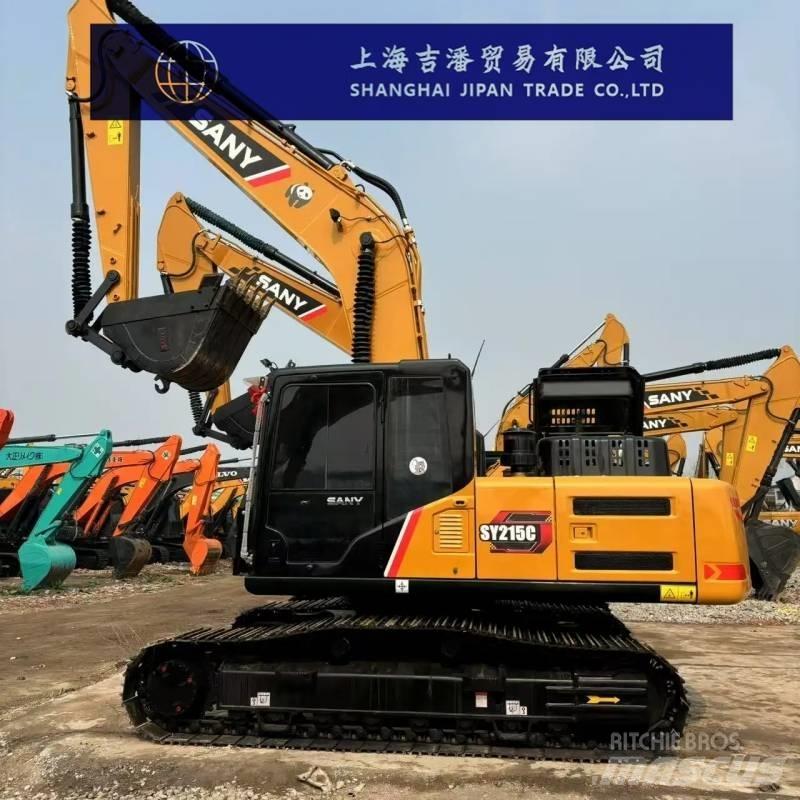

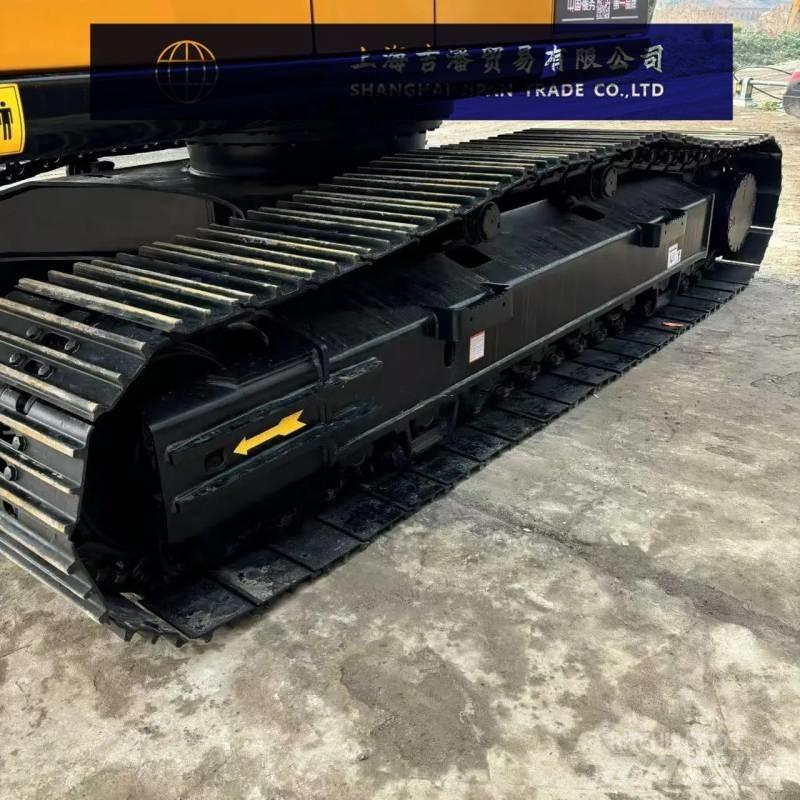

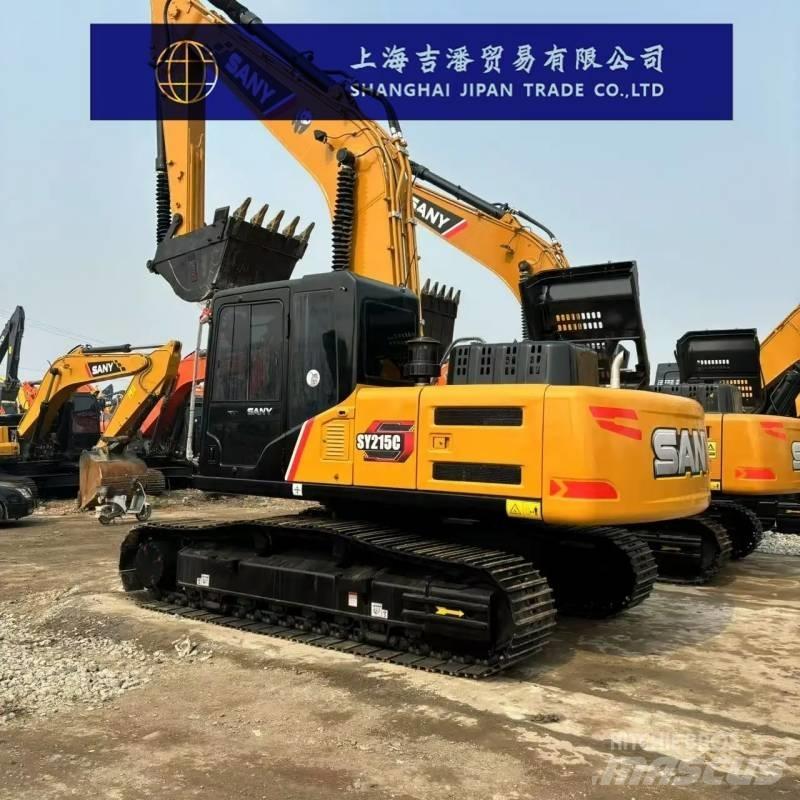

三一重工 SY 215 C

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Hefei City, Anhui Province Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Power, traditional power Domestic manufacturers Bucket backhoe Tonnage (tons)21 The working weight of the entire machine (kg) is 21,900 Bucket capacity (m³)1.1 (0.8-1.2) Performance Rotational speed (rpm)11 Walking speed (km/h)5.4/3.3 Climbing ability (%)70% (35°) Grounding specific pressure (Kpa)47.4 Bucket digging force (kN)138 The digging force of the boom (kN) is 103 Power system Engine model: Mitsubishi 4M50 Rated power (kw/rpm)118/2000 Maximum torque (N.m)580/1600 Displacement (L)4.9 Number of cylinders (4) The cooling method is water cooling Oil capacity Fuel tank (L)390 Hydraulic oil tank (L)239 Engine oil change rate (L)22 Main body size Total transportation length (mm)9680 Total transportation width (mm) : 2980 Total transportation height (mm)3440 The total height of the cab (mm) is 3075 The width of the vehicle (mm) is 2875 Track grounding length (mm)3445 The total length of the track (mm) is 4250 Track plate width (mm)600 Track gauge (mm)2380 Minimum ground clearance (mm)440 The minimum turning radius (mm) of the front-end working device is 3730 The rear end rotation radius (mm) is 2900 The maximum height (mm) at the minimum radius of rotation 7680 Number of sprocket rollers (single side) (pieces)2 Number of track plates (single side) (pieces)47 Number of supporting wheels (single side) (pieces)8 Scope of work Maximum excavation radius (mm) : 10280 Maximum excavation depth (mm) : 6600 Maximum excavation height (mm) : 9600 Maximum unloading height (mm)6730
