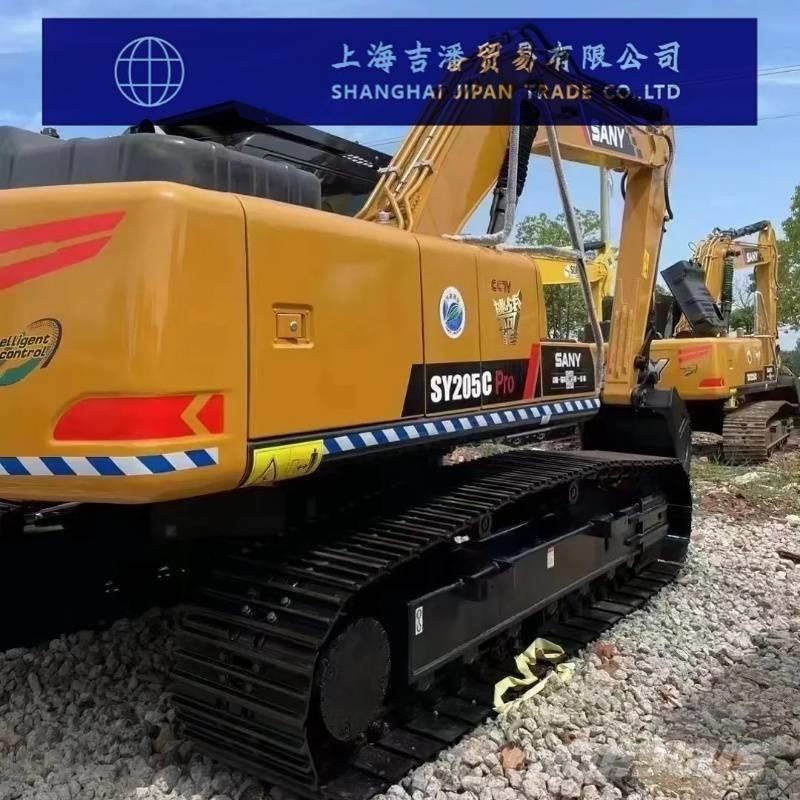

三一重工 SY 205 C

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Parameter Name Parameter Value Operating Weight 21,500 kg Standard Bucket Capacity 1.0 m³ Rated Power 118 kW / 2000 rpm Engine Model Mitsubishi 4M50 Engine Type 4-cylinder, 4-stroke, water-cooled, turbocharged Maximum Torque 620 Nm / 1500 rpm Travel Speed (High/Low) 5.3 / 3.2 km/h Swing Speed 11 rpm Climbing Ability 70% (35°) Ground Pressure 47.4 kPa Bucket Digging Force 126 kN Arm Digging Force 103 kN Fuel Tank Capacity 370 L Hydraulic Oil Tank Capacity 240 L Engine Oil Capacity 20 L Antifreeze Capacity 25 L Number of Track Shoes 46 Top Rollers per Side 2 Carrier Rollers per Side 7 Standard Track Width 600 mm Overall Dimensions (Transport Length) 9,680 mm Overall Dimensions (Total Width) 2,800 mm Overall Dimensions (Transport Height) 3,440 mm Upper Structure Width 2,728 mm Total Height (Top of Cab) 3,100 mm Track Gauge 2,200 mm Minimum Ground Clearance 470 mm Tail Swing Radius 2,870 mm Track Ground Contact Length 3,360 mm Track Length 4,160 mm Maximum Digging Height 9,600 mm Maximum Dumping Height 6,730 mm Maximum Digging Depth 6,600 mm Maximum Digging Radius 10,280 mm Minimum Swing Radius 3,730 mm Maximum Height at Minimum Swing Radius 7,680 mm
