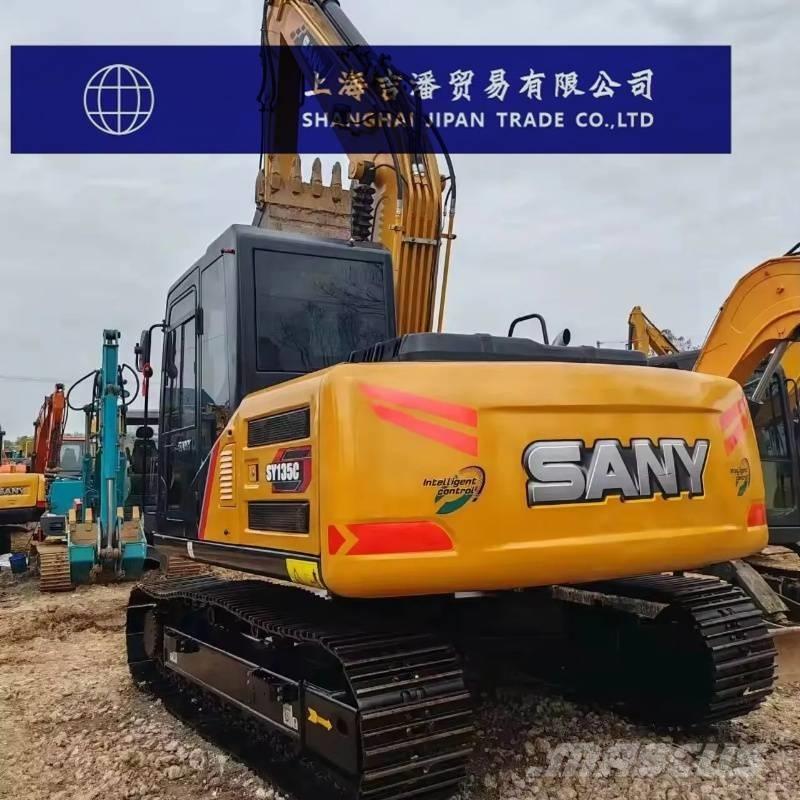

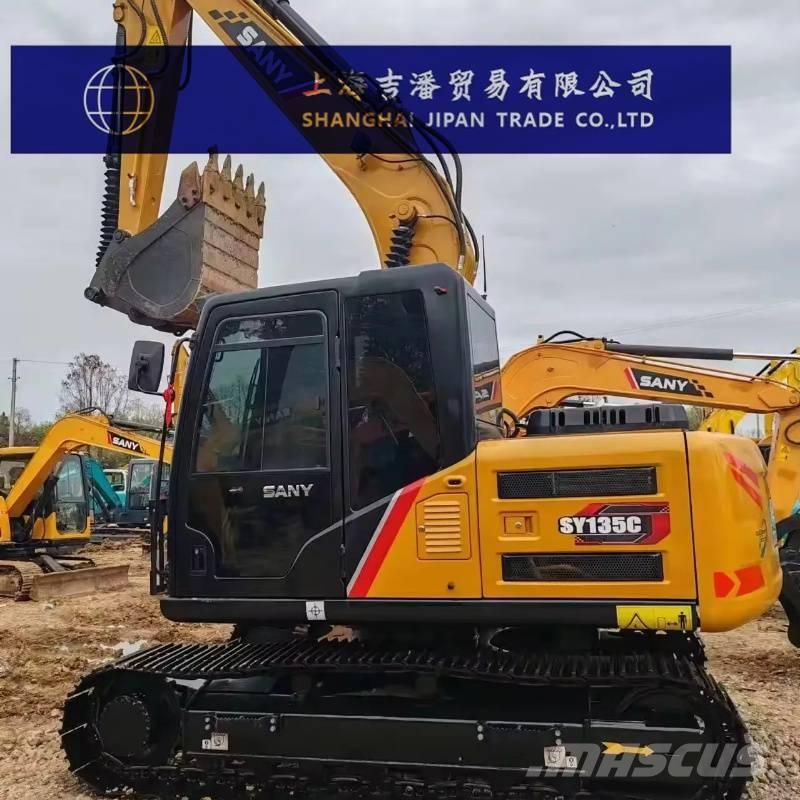

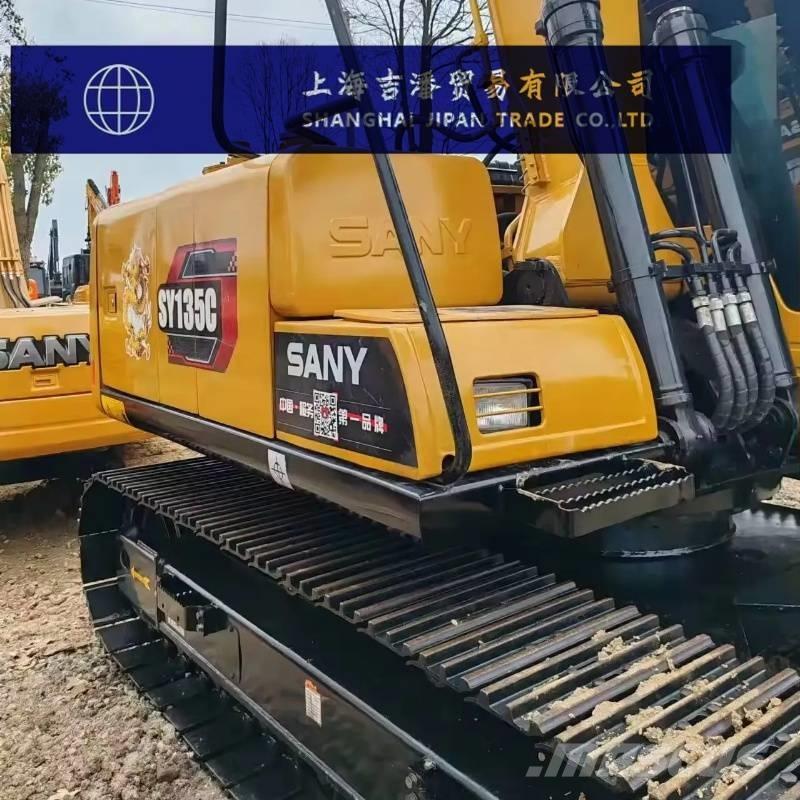

三一重工 SY 135

Company Information Shanghai Jipan Trade Co.,Ltd. is a professional vehicle exporting company.It has been in this business over 20 years and have strong stock to meet market requirement. It has professional repairing team,loading team,purchase team and exporting team.We can provide best service and perfect cooperation feeling.Now We have ambulance,fair engines,truck mounted crane,crawler crane,forklift,excavator,bulldozer...and so on in stock.And have many Chinese or Japanese,American brand for choice. Please contact without hesitation.

Machine Parameters: The total machine weight is 13,500 kg, the standard bucket capacity is 0.6 m³, the total length (during transportation) is 7,890 mm, the total width (transportation/operation) is 2,490 mm, the total height (during transportation) is 2,890 mm, the upper structure width is 2,490 mm, the total height to the top of the cab is 2,900 mm, the track width is 500 mm, the track gauge (transportation/operation) is 1,990 mm, the minimum ground clearance is 450 mm, the tail swing radius is 2,210 mm, and the track length is 3,665 mm. Power Parameters: Equipped with an Isuzu 4JJ1 engine, with a rated power of 86 kW/2200 rpm, a maximum torque of 375 Nm/1800 rpm, and a displacement of 2.999 L. Fluid Capacities: The fuel tank capacity is 280 L, the hydraulic oil tank capacity is 200 L, the engine oil capacity is 15 L, the coolant capacity is 2×2.6 L, the travel reducer gear oil capacity is 3 L, and the swing reducer gear oil capacity is 14 L. Work Equipment Parameters: The boom length is 4,600 mm, the arm length is 2,500 mm, and the counterweight is 2,500 kg
