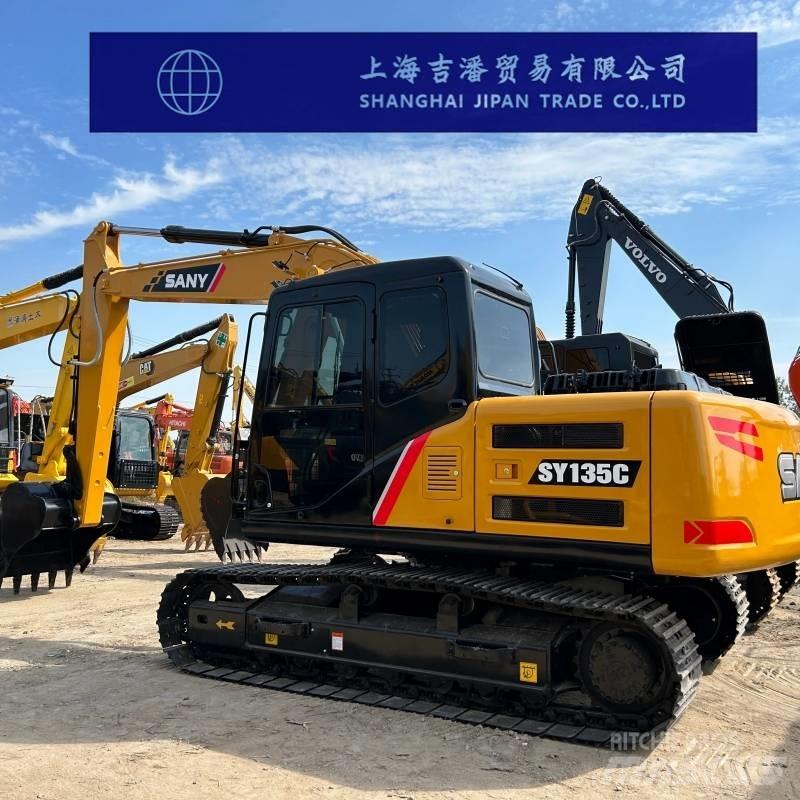

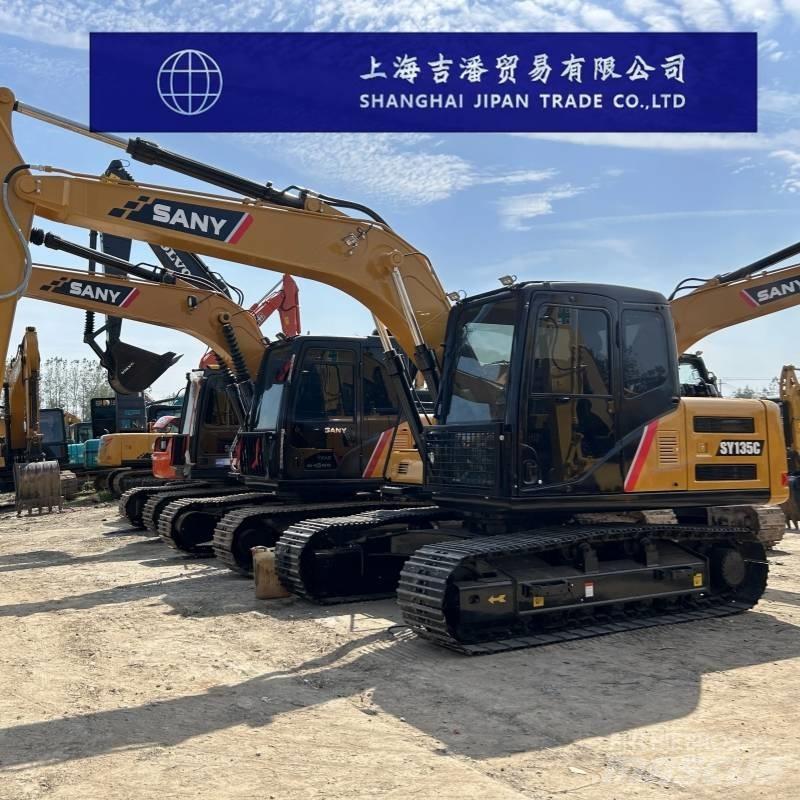

三一重工 SY 135 C

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Sany SY135C excavator Specification Power Traditional Power Domestic manufacturer Bucket backhoe Tonnage (tons)13 The working weight of the entire machine (kg) is 13,500 Bucket capacity (m³)0.22-0.7 (0.6) Performance Rotational speed (rpm)12 Walking speed (km/h)5.5/3.5 Climbing ability (%)70% (35°) The ground pressure (Kpa) is 41.7 Bucket digging force (kN) : 92.7 The digging force of the bucket arm (kN) is 66.13 Power system Engine model: Isuzu 4JJ1-XDJAG-01-C3 Rated power (kw/rpm)73/2000 Maximum torque (N.m)365/1600 Displacement (L)2.999 The cooling method is water cooling Oil capacity Fuel tank (L)240 Hydraulic oil tank (L)150 Engine oil change volume (L)15 Main body size The total length of transportation (mm) is 7,700 The total transportation width (mm) is 2550 Total transportation height (mm) : 2815 The total height of the cab (mm) is 2740 The width of the vehicle (mm) is 2490 Track grounding length (mm) : 2930 The total length of the track (mm) is 3665 Track plate width (mm) : 500 Track gauge (mm)1990 Minimum ground clearance (mm) : 425 The minimum turning radius (mm) of the front working device is 2500 The rear end turning radius (mm) is 2240 The maximum height (mm) at the minimum turning radius is 6500 Number of idler wheels (single side) (units)1 Number of track plates (single side) (pieces)44 Number of supporting wheels (single side) (units)7 Scope of work Maximum excavation radius (mm) : 8290 Maximum excavation depth (mm) : 5510 Maximum excavation height (mm) : 8685 Maximum unloading height (mm) : 6180 The maximum vertical excavation depth (mm) is 4890
