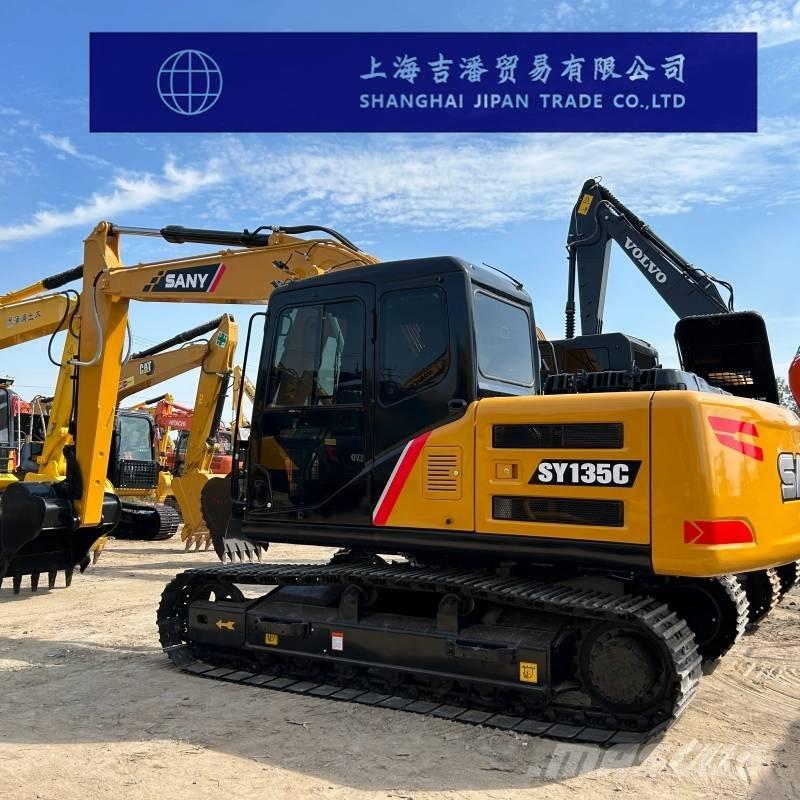

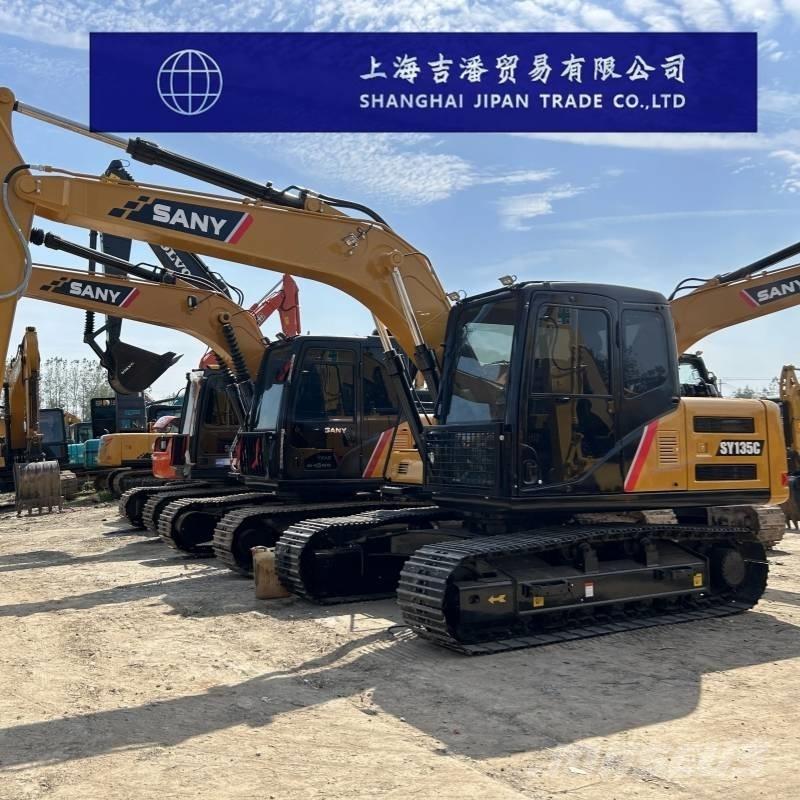

三一重工 SY 135 C

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Parameter configuration of Sany SY135C excavator Specification Tonnage (tons)13 The working weight of the entire machine (kg) is 13,500 Bucket capacity (m³):0.6 Performance Rotational speed (rpm)12 Walking speed (km/h)5.5/3.5 Climbing ability:70%/35degrees The ground pressure (Kpa) is 41.7 Bucket digging force (kN):92.7 The digging force of the bucket arm (kN) is 66.13 Power system Engine model: Isuzu 4JJ1-XDJAG-01-C3 Rated power (kw/rpm)73/2000 Maximum torque (N.m)365/1600 Displacement (L)2.999 The cooling method is water cooling Oil capacity Fuel tank (L)240 Hydraulic oil tank (L)150 Engine oil change volume (L)15 Main body size The total length of transportation (mm) is 7,700 The total transportation width (mm) is 2550 Total transportation height (mm):2815 The total height of the cab (mm) is 2740 The width of the vehicle (mm) is 2490 Track grounding length (mm):2930 The total length of the track (mm) is 3665 Track plate width (mm):500 Track gauge (mm)1990 Minimum ground clearance (mm):425 The minimum turning radius (mm) of the front working device is 2500 The rear end turning radius (mm) is 2240 The maximum height (mm) at the minimum turning radius is 6500 Number of idler wheels (single side) (units)1 Number of track plates (single side) (pieces)44 Number of supporting wheels (single side) (units)7 Scope of work Maximum excavation radius (mm):8290 Maximum excavation depth (mm):5510 Maximum excavation height (mm):8685 Maximum unloading height (mm):6180 The maximum vertical excavation depth (mm) is 4890
