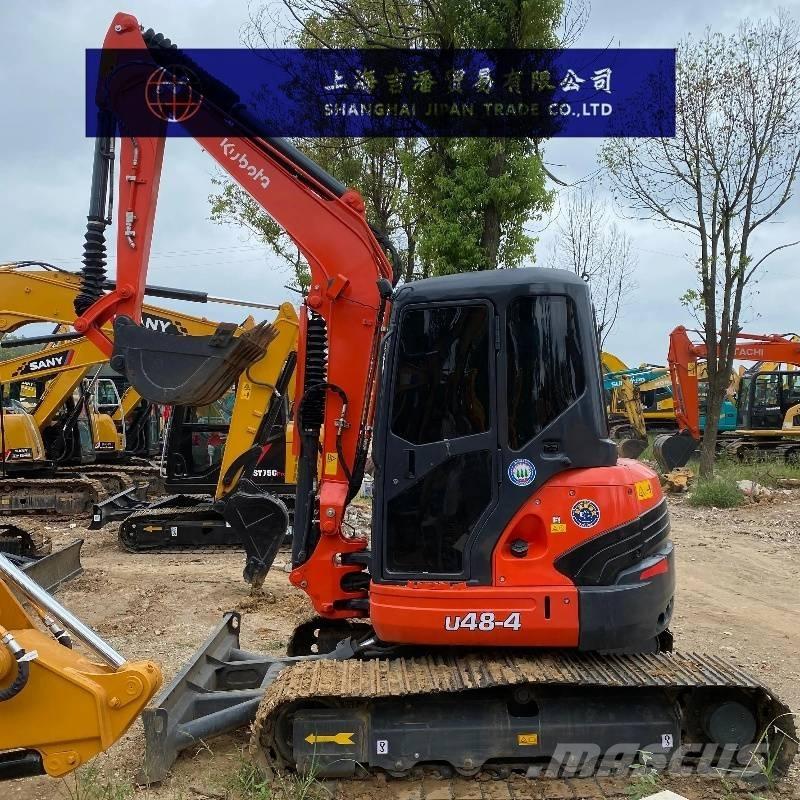

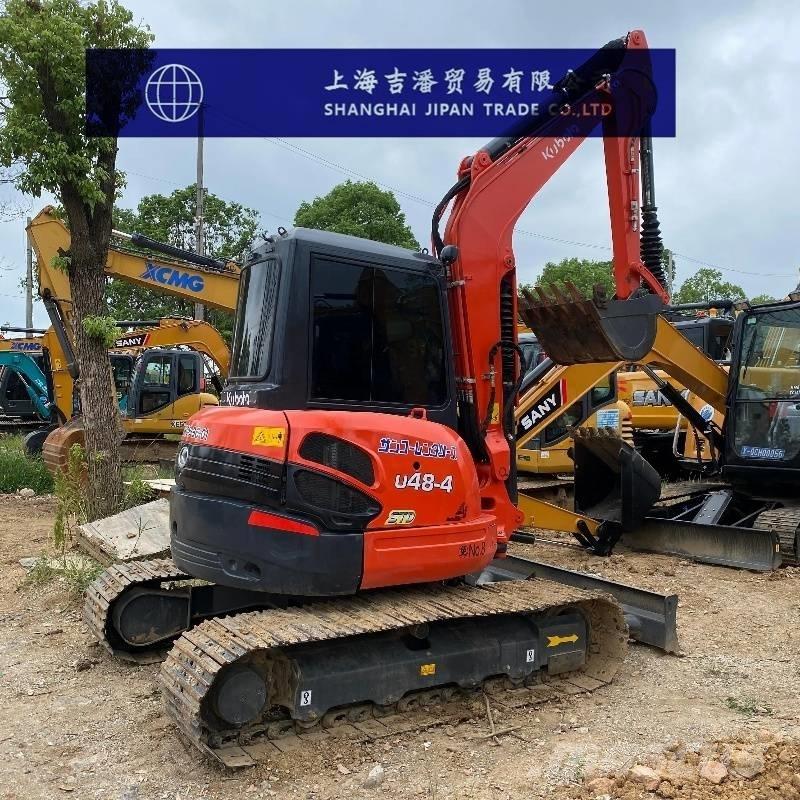

久保田 U 48

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Basic information: Operating weight (with roof) is 4760kg, (with cab) is 4850kg, fuselage length 5330mm, width 1960mm, height (canopy / cab) 2550mm, minimum ground clearance 310mm. Engine parameters: The engine model is Kubota V2607-DI, with a rated power of 40.2hp (net power), a maximum power of 41.8hp (gross power), a displacement of 2615cc, and a rated speed of 2200rpm, which meets Tier IV emission standards. Hydraulic system: pump capacity 118.8L/min, auxiliary hydraulic flow (Aux1) 70L/min, (Aux2) 37L/min, bucket maximum digging force 3360kgf, boom maximum digging force 2245kgf, slewing speed 9.3rpm. Walking performance: Low travel speed 2.8km/h, high 4.9km/h, maximum traction force 5440kgf, track length 2500mm, track width 400mm, ground specific pressure (roof) 0.275kgf/cm², (cab) 0.279kgf/cm². Working range: maximum digging height 5440mm, maximum unloading height 3770mm, maximum digging depth 3380mm, maximum vertical digging depth 2670mm, maximum ground digging radius 5710mm. Bucket and blade: Bucket capacity approx. 0.12m³, blade width 1960mm, blade height 410mm, maximum lifting height 440mm, maximum drop depth 410mm. Fluid capacity: fuel tank capacity 68L, hydraulic tank capacity 45L, hydraulic system fluid capacity 79L, engine oil capacity 9L.
