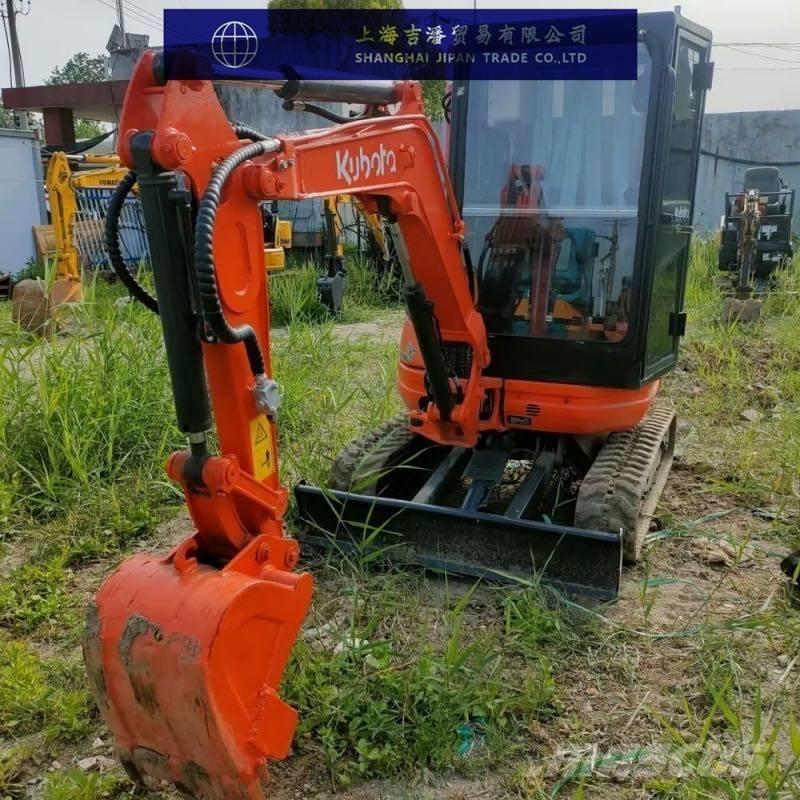

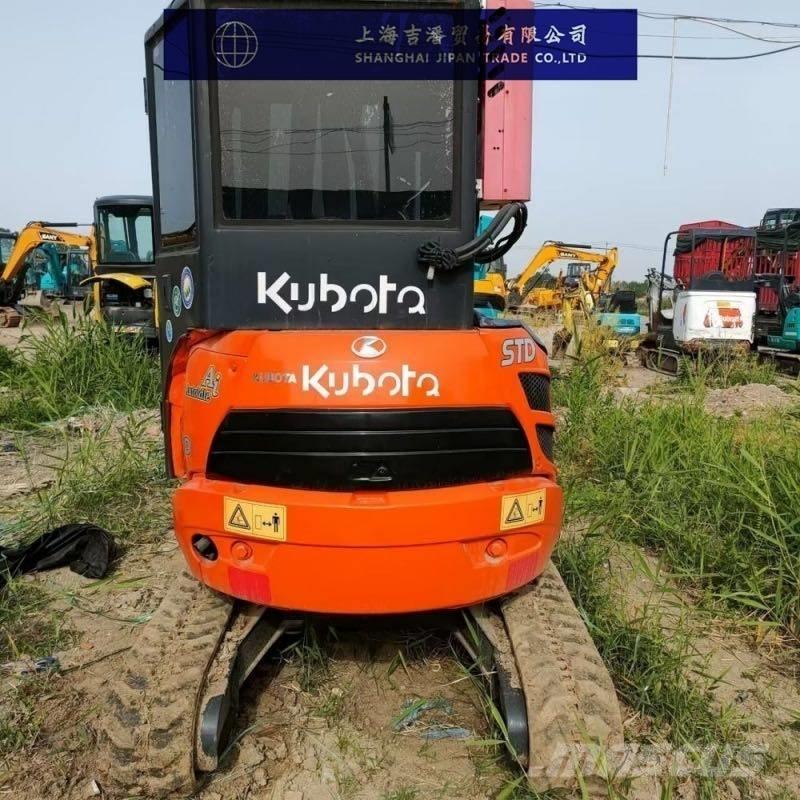

久保田 U 20-3

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Kubota U20 excavator parameter configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 2 The working weight of the whole machine (kg) is 2365 Bucket width (mm) 450/400 Bucket capacity (m³) 0.054 performance Rotational speed (rpm) 9.6 Travel speed (km/h) 2.1/4.0 Climbing ability (%) 30° Bucket digging force (kN) 18.4 dynamical system Engine model D1105-E4 Rated power (kw/rpm) 14/2200 Displacement (L) 1.123 Hydraulic system Main pump type: variable pump*2 + gear pump*2 Slewing hydraulic motor type cycloidal rotor motor Traveling hydraulic motor type 2-speed plunger hydraulic motor Oil capacity Fuel tank (L) 28 Body size Total length of transport (mm) 3850 Total width of transport (mm) 1300/1500 Total height of transport (mm) 2380 Total track length (mm) 1860 Track shoe width (mm) 250 Minimum ground clearance (mm) 170 The minimum turning radius (mm) of the front working device is 1850 Rear end slewing radius (mm) 710 Scope of work Maximum digging radius (mm) 4140 Maximum digging depth (mm) 2320 Maximum digging height (mm) 3880 Maximum unloading height (mm) 2550 Maximum vertical digging depth (mm) 1900 Width × height of bulldozer plate (mm) 1300/1500*292 Bulldozer shovel lifting or pushing depth (mm) 340/270
