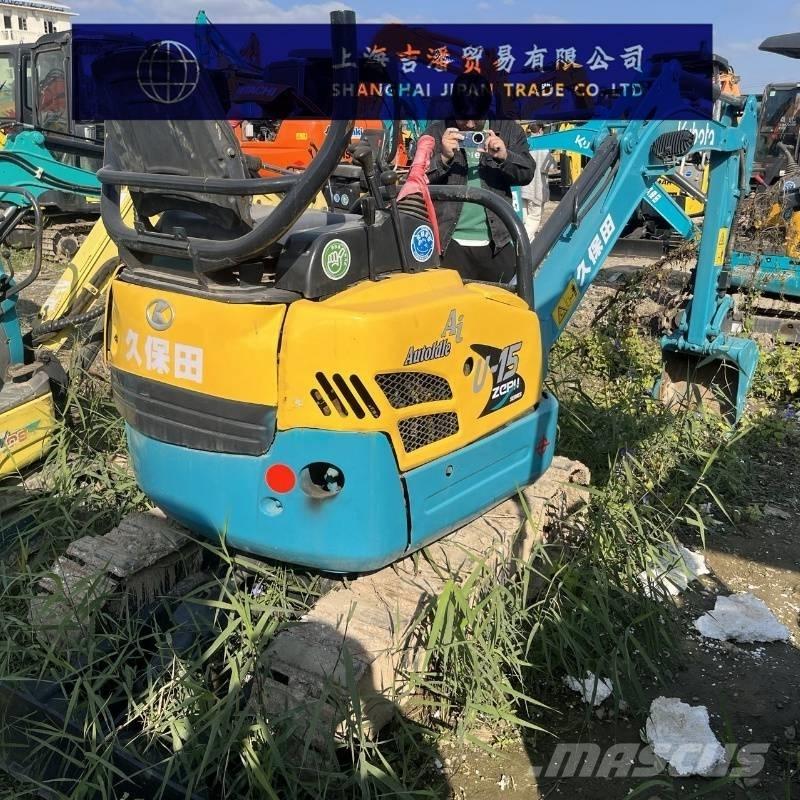

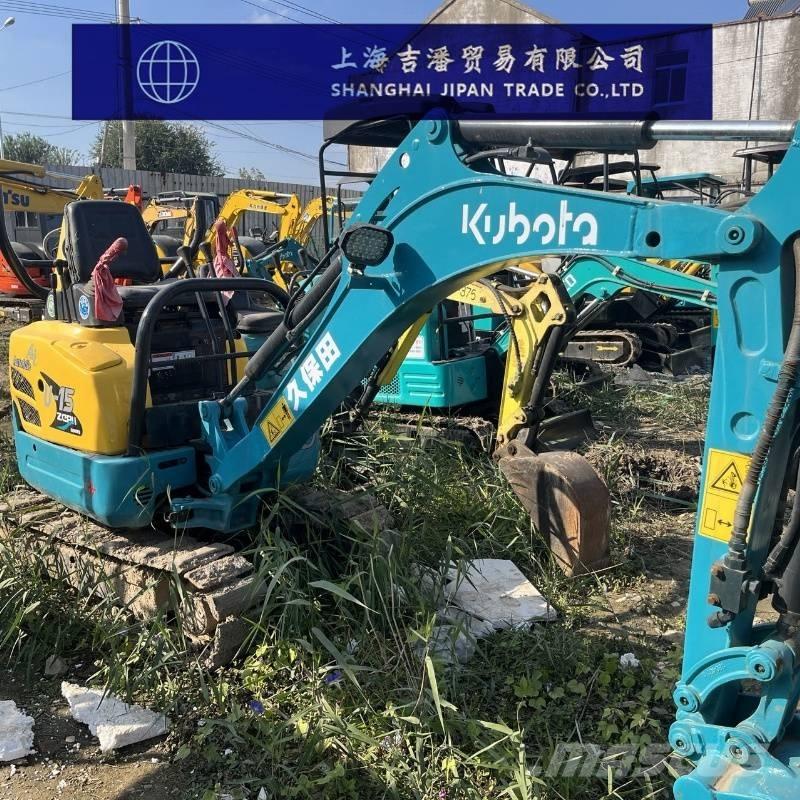

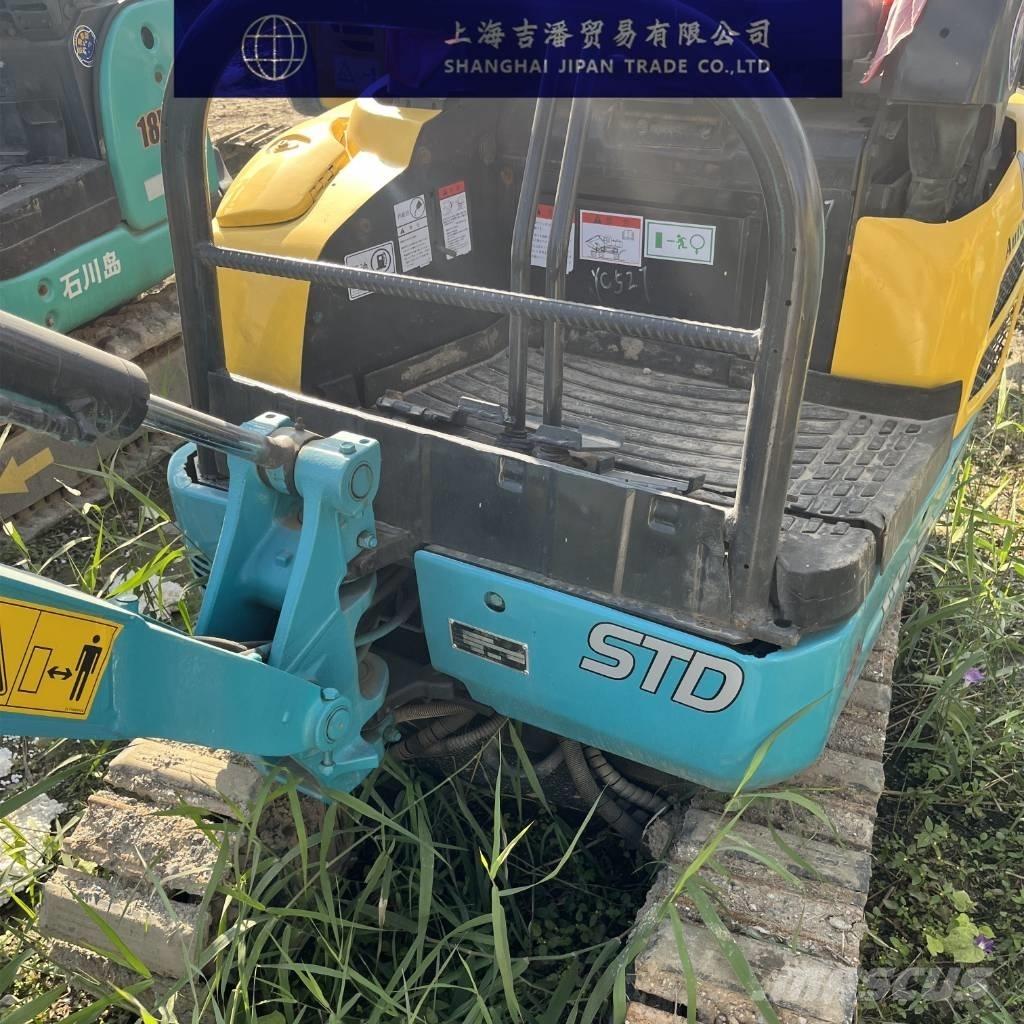

久保田 U 15

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Kubota U-15-3S excavator parameter configuration specification The working weight of the whole machine (kg) is 1570 Bucket capacity (m³) 0.04 Tonnage (tons) 1 Joint ventures/imports Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Slewing speed (rpm) 8.7 Travel speed (km/h) 2.2/4.3 Climbing ability (%) 30° (58%) Bucket digging force (kN) 15.2 dynamical system Engine model Kubota D782-EBH-4 Rated power (kw/rpm) 9.6/2300 Displacement (L) 0.778 Number of cylinders (pcs) 3 Cooling method: Water cooling Hydraulic system Main Pump Type: Variable Pump, Gear Pump, Pilot Gear Pump The maximum flow rate of the main pump (l/min) is 2×16.6 Traveling hydraulic motor type 2-speed plunger motor Slewing hydraulic motor type orbital motor Pilot pump flow rate (L/min) 6.2 Oil capacity Fuel tank (L) 18 Body size Total length of transport (mm) 3575 Total Transport Width (mm) 1240 Total height of transport (mm) 2250 Total track length (mm) 1585 Track shoe width (mm) 230 rubber Track gauge (mm) 1010 Minimum ground clearance (mm) 145 The minimum turning radius of the front working device (mm) is 1425 Rear end turning radius (mm) 620 Scope of work Maximum digging radius (mm) 3900 Maximum digging depth (mm) 2310 Maximum digging height (mm) 3540 Maximum unloading height (mm) 2440 Maximum vertical digging depth (mm) 1910 Boom offset (left/right°) 510/385 Width × height of bulldozer plate (mm) 990/1240 Dozer shovel lifting or pushing depth (mm) 260/180
