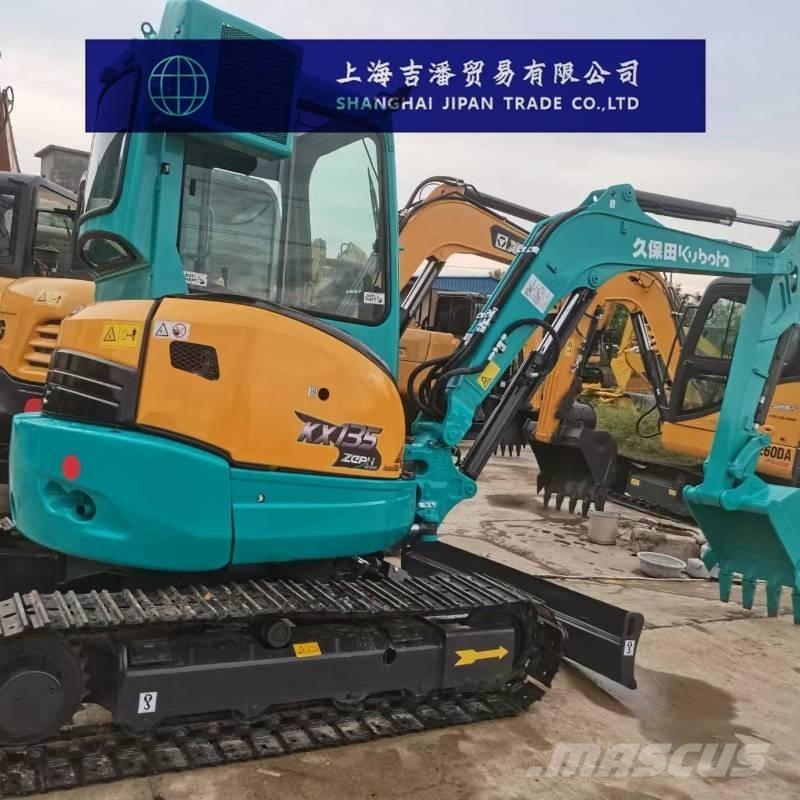

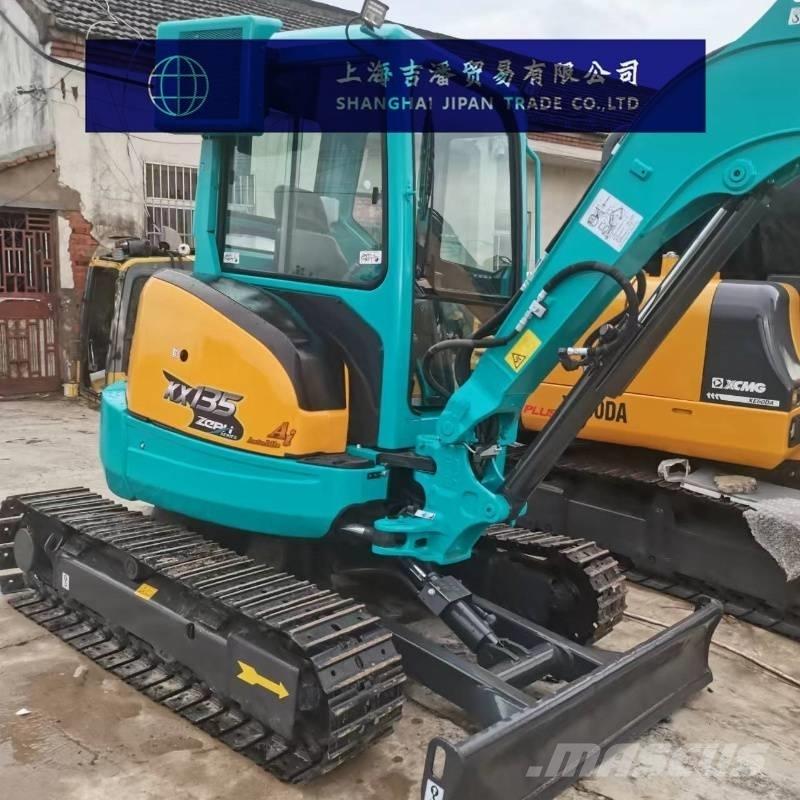

久保田 KX135

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Kubota KX135-3S excavator parameter configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 3 The working weight of the whole machine (kg) is 3590 Bucket width (mm) 600/550 Bucket capacity (m³) 0.11 Origin: Japan performance Rotational speed (rpm) 8.9 Travel speed (km/h) 3.0/4.6 Climbing ability (%) 60 Bucket digging force (kN) 27.6 dynamical system Engine model Kubota D1703-E2 Rated power (kw/rpm) 21/2250 Displacement (L) 1.647 Hydraulic system Main pump type variable pump × 2 gear pump Slewing hydraulic motor type piston hydraulic motor Traveling hydraulic motor type piston hydraulic motor Oil capacity Fuel tank (L) 40 Body size Total length of transport (mm) 4665 Total width of transport (mm) 1700 Total transport height (mm) 2440 Cab total height (mm) 2440 Total track length (mm) 2100 Track shoe width (mm) 300 Total track width (mm) 1700 Track gauge (mm) 1400 Minimum ground clearance (mm) 290 The minimum turning radius of the front working device (mm) is 1960/1570 Rear end turning radius (mm) 850 Scope of work Maximum digging radius (mm) 5265 The maximum excavation radius of the stopping surface (mm) is 5150 Maximum digging depth (mm) 3135 Maximum digging height (mm) 4730 Maximum unloading height (mm) 3320 Maximum vertical digging depth (mm) 2510 Boom slewing angle (left/right°) 70/50 Width × height (mm) of bulldozer plate 1700×335 Bulldozer shovel lifting or pushing depth (mm) 370/370
