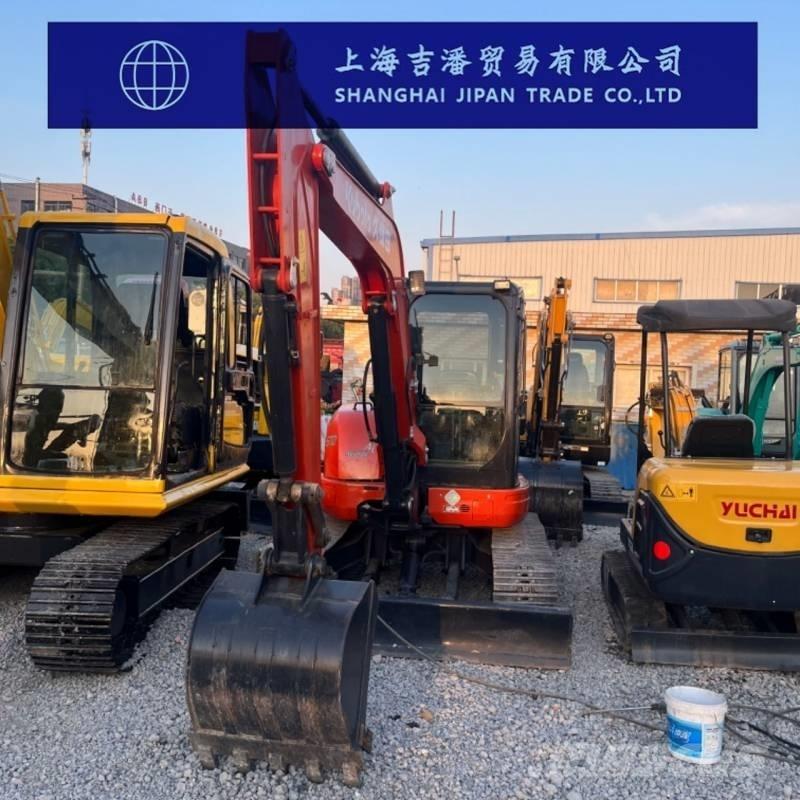

久保田 KX 161

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Kubota KX161-3S Excavator Parameter Configuration Specifications Operating Weight (kg) 5675 Bucket Capacity (m³) 0.22 Origin Japan Tonnage (ton) 6 Manufacturer Joint Venture/Imported Power Conventional Power Bucket Backhoe Manufacturer Joint Venture/Imported Power Conventional Power Performance Rotation Speed (rpm) 9.3 Travel Speed (km/h) 2.5/4.6 Climbing Ability (%) 58/30 degrees Bucket Digging Force (kN) 39 Power System Engine Model Kubota V2403-M Rated Power (kw/rpm) 34.6/2200 Displacement (L) 2.434 Cooling Method Water-cooled Hydraulic System Main Pump Type Variable Pump + Gear Pump Travel Hydraulic Motor Type Piston Hydraulic Motor Rotation Hydraulic Motor Type Piston Hydraulic Motor Standard Hydraulic Breaker Pipe Yes Oil Capacity Fuel Tank (L) 70 Overall Dimensions Transport Length (mm) 5540 Transport Width (mm) 2110 Transport Height (mm) 2540 Track Ground Contact Length (mm) 1990 Track Total Length (mm) 2500 Track Plate Width (mm) 550 Track Total Width (mm) 2110 Track Gauge (mm) 1560 Minimum Ground Clearance (mm) 320 Minimum Turning Radius of Front Working Device (mm) 2420/1955 Rear Turning Radius (mm) 1090 Operating Range Maximum Digging Radius (mm) 6290 Maximum Digging Radius at Ground Level (mm) 6165 Maximum Digging Depth (mm) 3860 Maximum Digging Height (mm) 5770 Maximum Dumping Height (mm) 4125 Maximum Vertical Digging Depth (mm) 2995 Arm Rotation Angle (Left/Right °) 50/80 Bulldozer Blade Width × Height (mm) 2110 × 390 Bulldozer Blade Lift or Push Depth (mm) 455/375
