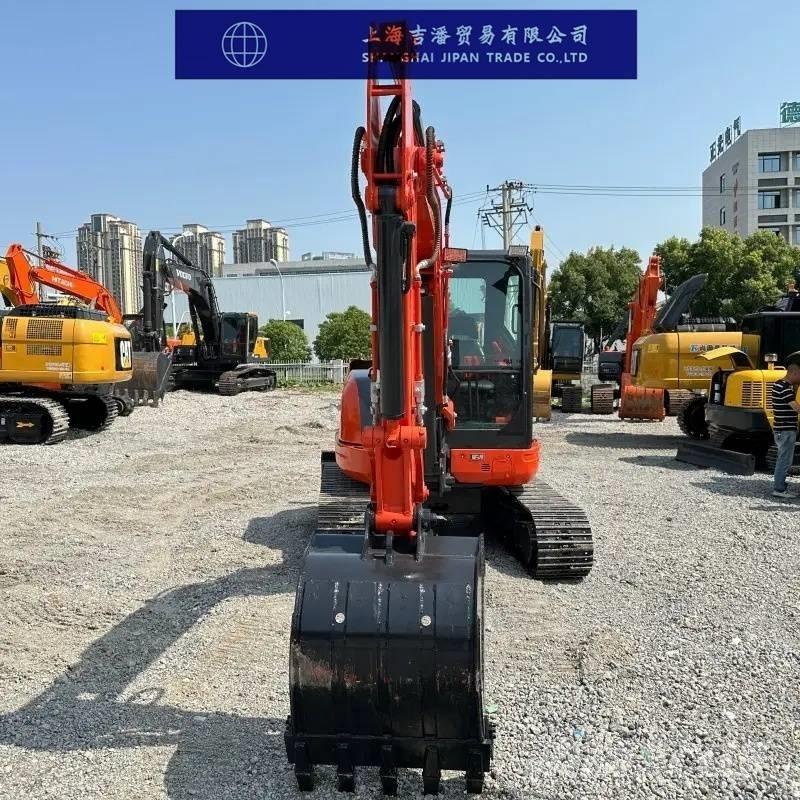

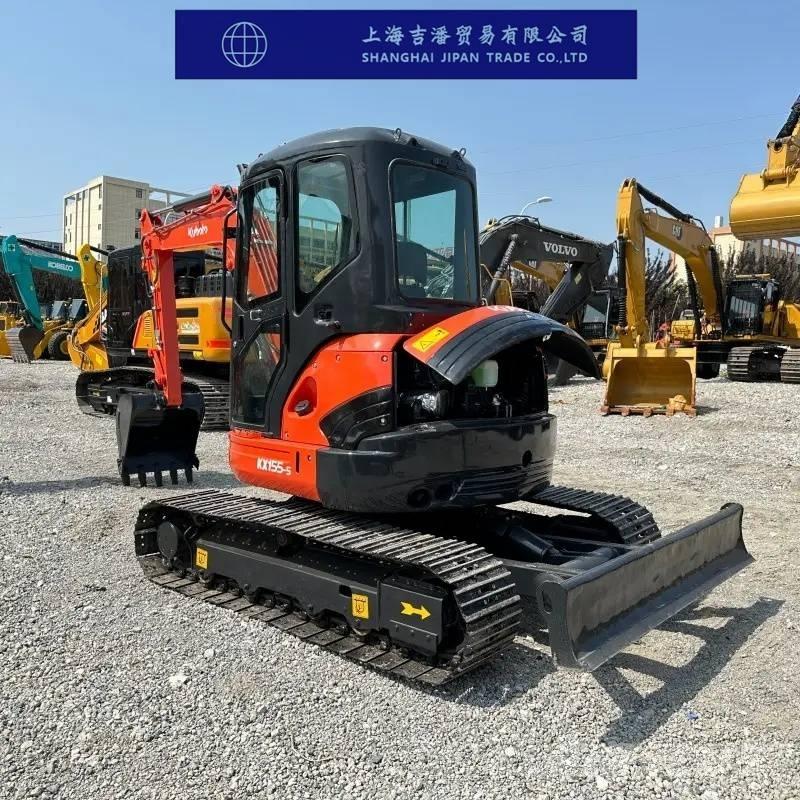

久保田 KX 155

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Kubota KX155 Excavator Specifications and Parameters Specifications Power Transmission: Conventional power Manufacturer: Joint venture/imported Bucket: Backhoe Weight (tons): 5 Overall working weight (kg): 5190 Bucket width (mm): 730/680 Bucket capacity (m³): 0.16 Performance Rotation speed (rpm): 9.3 Travel speed (km/h): 2.5/4.3 Climbing ability (%): 30° Bucket digging force (kN): 36.5 Power System Engine model: V2403-E3 Rated power (kW/rpm): 29.9/2250 Displacement (L): 2.434 Hydraulic System Main pump type: 1 variable pump + 1 gear pump Travel hydraulic motor type: 2-speed piston hydraulic motor Rotation hydraulic motor type: Piston hydraulic motor Oil Capacity Fuel tank (L): 100 Overall Dimensions Transport length (mm): 5510 Transport width (mm): 1960 Transport height (mm): 2540 Track length (mm): 2500 Track plate width (mm): 400 Minimum ground clearance (mm): 320 Minimum turning radius of front working device (mm): 2370 Rear turning radius (mm): 1060 Operating Range Maximum digging radius (mm): 6045 Maximum digging depth (mm): 3580 Maximum digging height (mm): 5560 Maximum dumping height (mm): 3855 Maximum vertical digging depth (mm): 2990 Bulldozer blade width × height (mm): 1960 × 360 Bulldozer blade lift or push depth (mm): 450/375
